Mazak Cybertech Turn 5500M - Lathes (3-Axis or More)

Share Machine
Specifications Print Specs
Model: Cybertech Turn 5500M
Year: 2008
Stock #: 13735 Sold
Highlights:

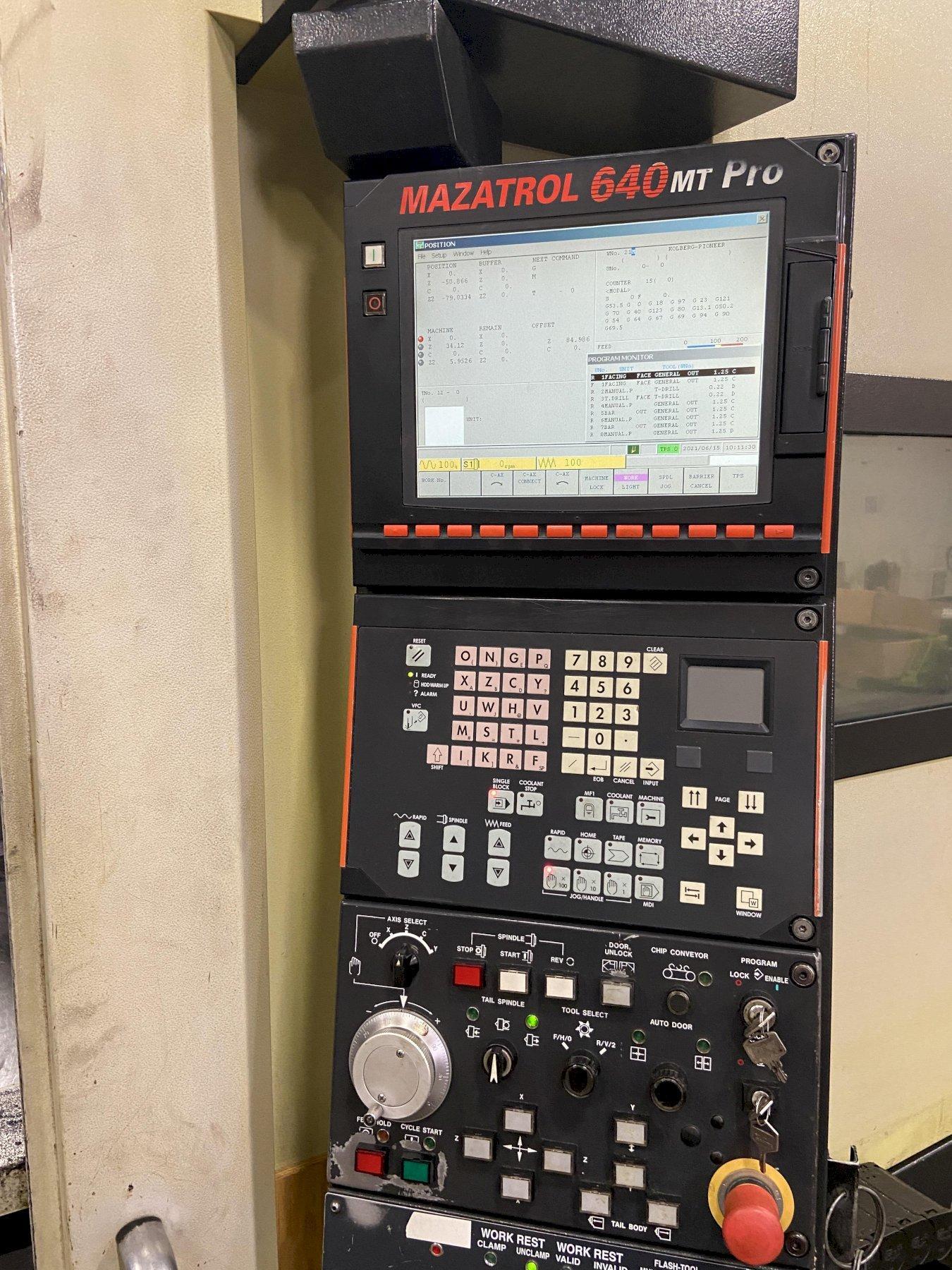

Mazatrol PC Fusion 640MT Pro

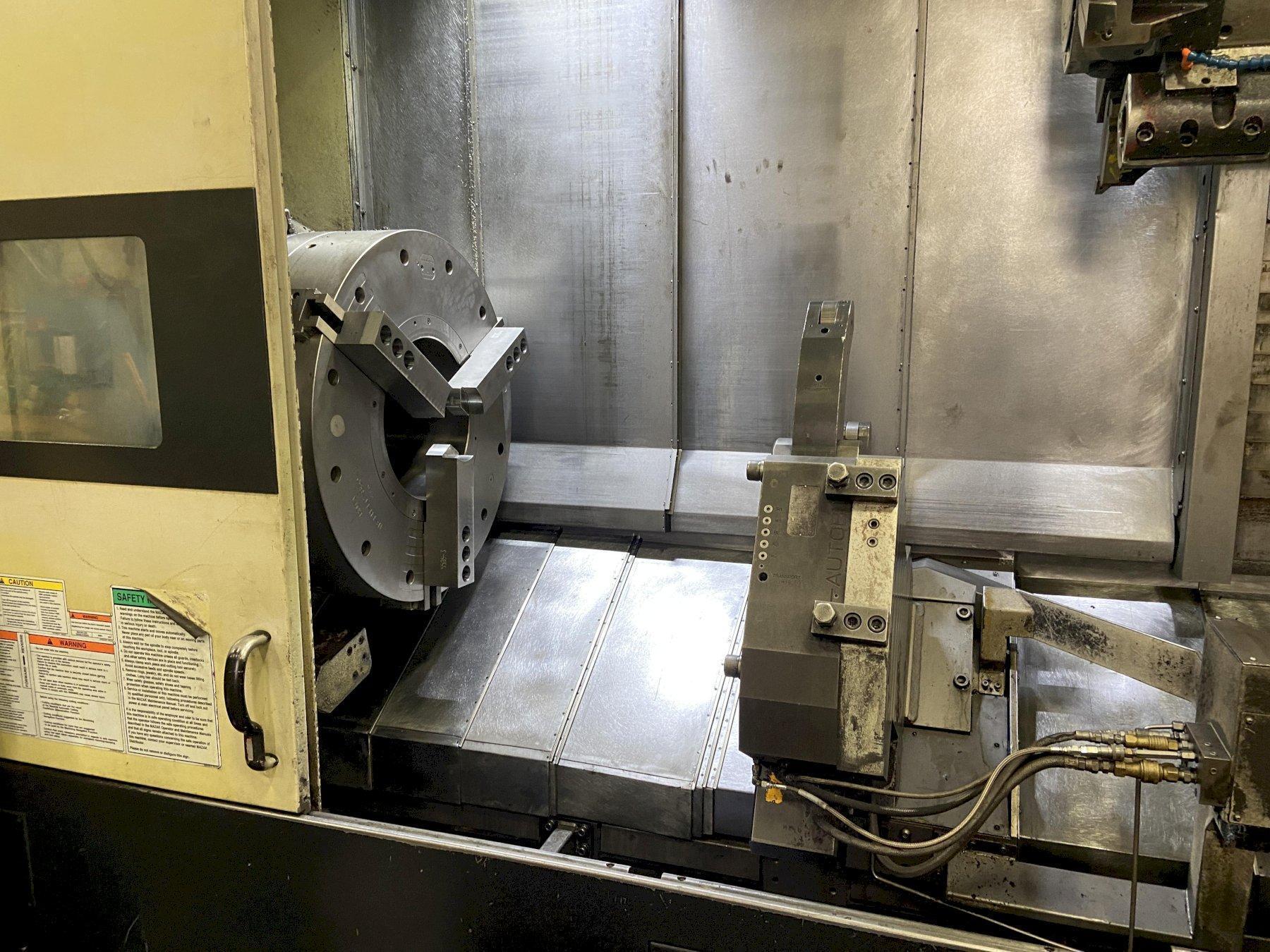

33" Air Chuck (Main Spindle)
28" Manual Rear Chuck
Hydraulic Steady Rest
Hi-Pressure Coolant 1,000 psi
Live Tooling

Used Mazak Cybertech Turn 5500M CNC Lathe
Machine Specifications
Year
2008
Control Type
Mazatrol PC fusion 640MT Pro
# Axis
3
Chuck Size
33"
Swing
36.02"
Turning Diameter
31.89"
Center Distance
120"
Bar Capacity
14.76"
X Axis Travel
21.26"
Z Axis Travel
123.23"
C Axis Index
0.001°
Y Axis
no
Rapid Traverse (X/Z)
945/1,181 ipm
Spindle Speed (RPM)
500
Main Motor
60 hp
Live Tooling
yes
Live Tooling Speed
3,000 rpm
Live Tooling Motor
15 hp
Turret Capacity
12
Sub Spindle
no
Tailstock (Yes/No)
yes
Dimensions
290" x 143" x 113"
Weight
56,000 pounds

Equipped With:

- 33.4" Front Air Chuck
- 28" Rear Manual Chuck
- Tool Presetter
- Hydraulic Steady Rest (100k Option)
- Concept Chip Conveyor with filtration (49K Option)
- (2) Live Milling Holders
- (2) Boring Bar Holders
- Misc ID/OD Holders
- Long Boring Bar Stocker
- Mazak Variable High Pressure Coolant Unit (1,000 PSI)
- Spindle Chiller
- 0.001° deg C axis
- Live Tooling

The Mazak Cybertech Turn 5500M is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
