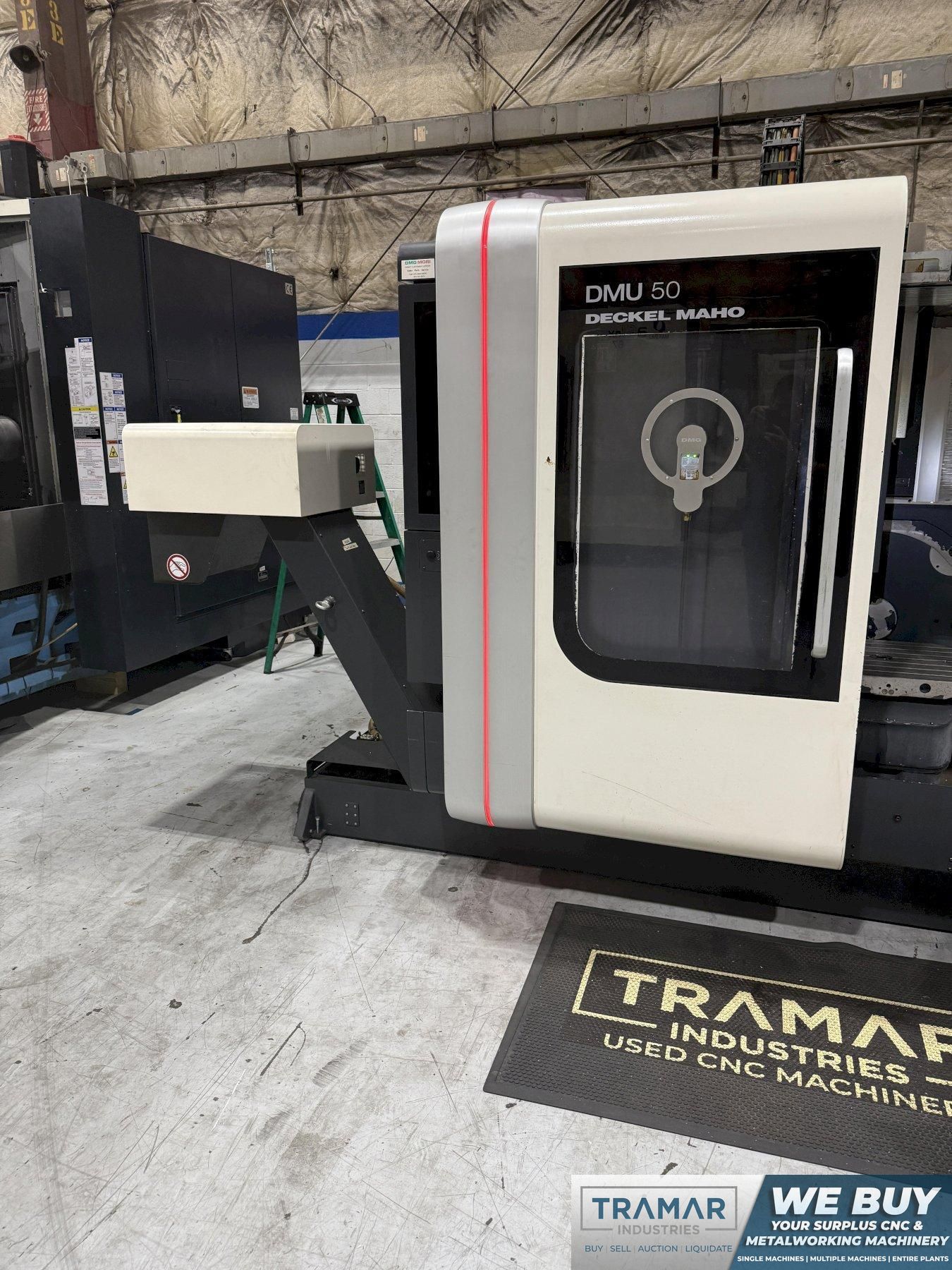

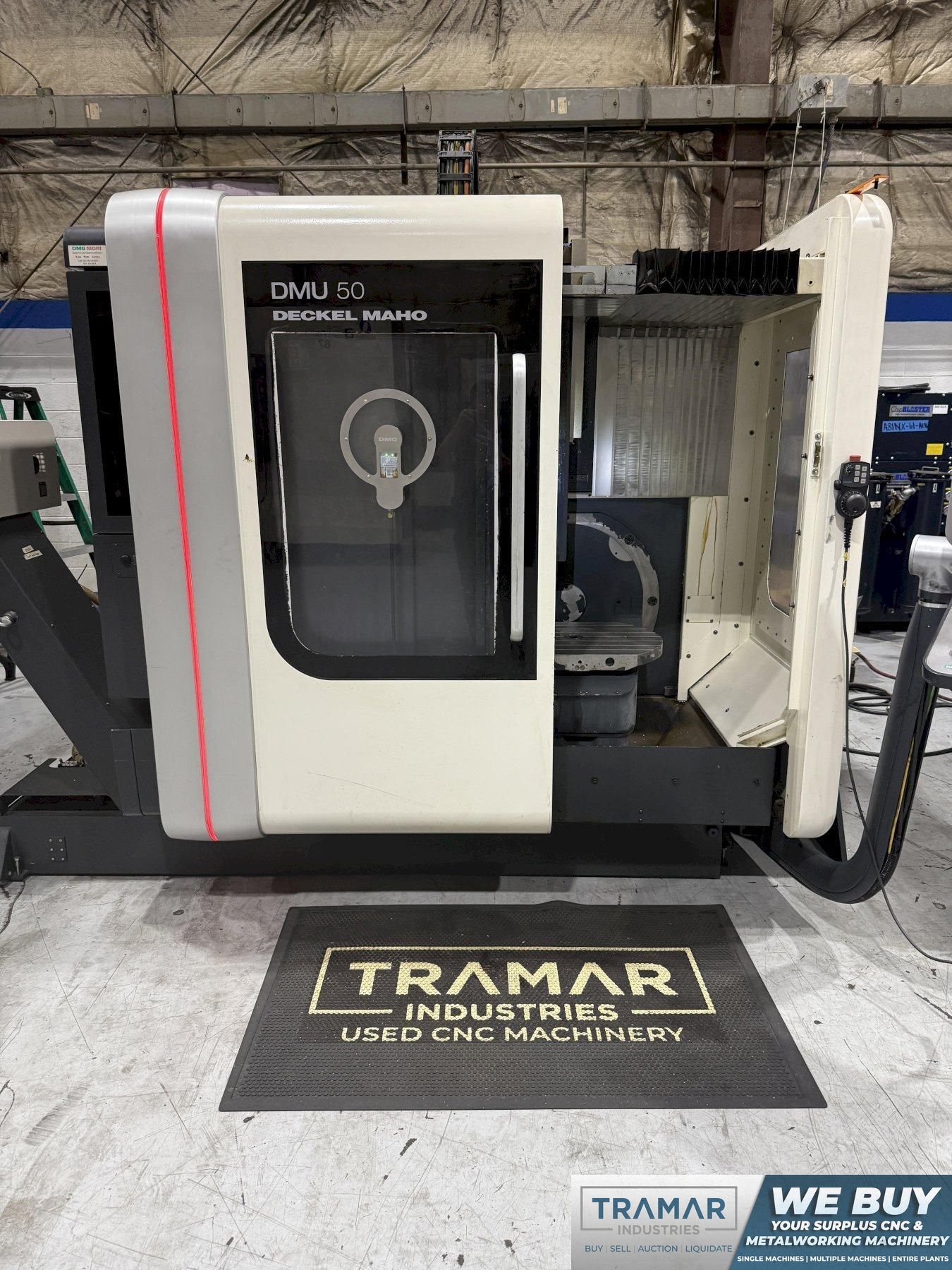

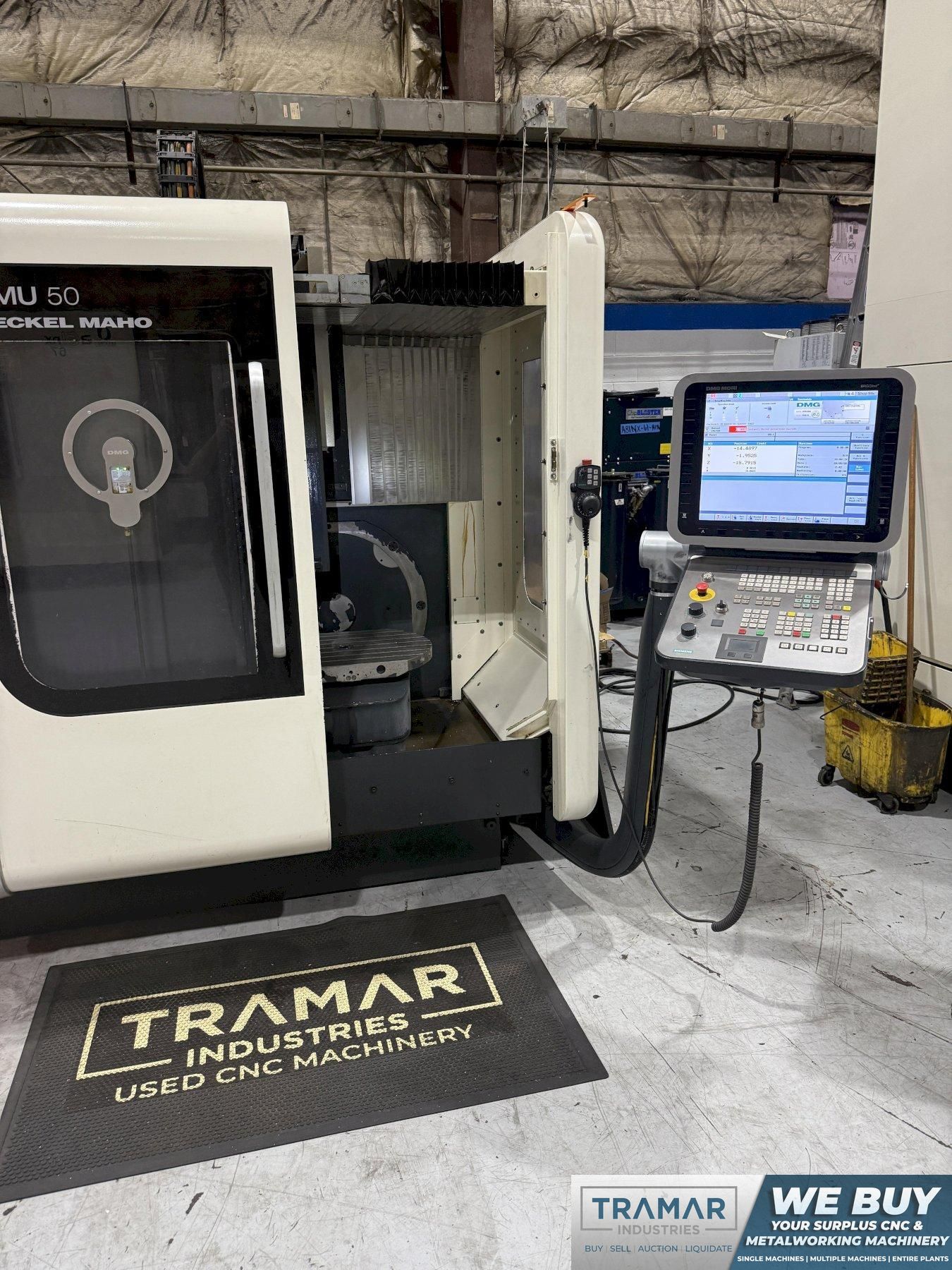

DMG Mori DMU 50 - Machining Centers, Vertical, (5-Axis or More)

Request Quote

Share Machine

Specifications Print Specs

Model: DMU 50

Year: 2011

Stock #: 15403

Type: Machining Centers, Vertical, (5-Axis or More)

Manufacturer: Used DMG Mori Machines

Highlights:
- Siemens 840DL CNC Control
- 5-axis machining capability for intricate parts
- Spacious 24.8" x 19.7" Table Size | Max Table Load 661 lbs
- Versatile X, Y, Z Axis Travel: 19.7", 17.7", 15.7"
- B Axis Rotary -5° / +110°, A Axis Rotation 0.001° for complex machining
- CAT 40 | 18,000 rpm | 33.5 hp

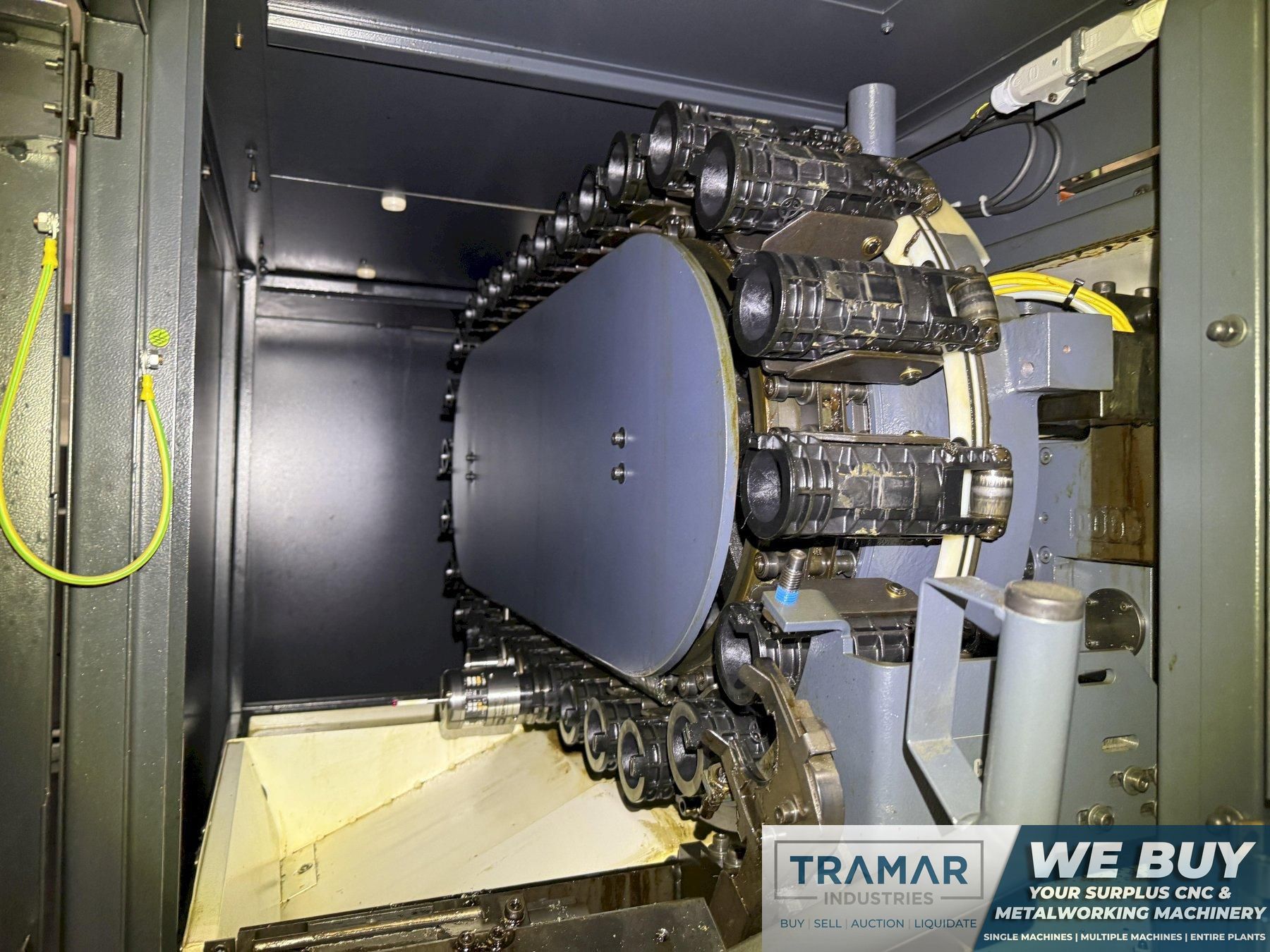

- 30 Station ATC Capacity
- Coolant Thru Spindle

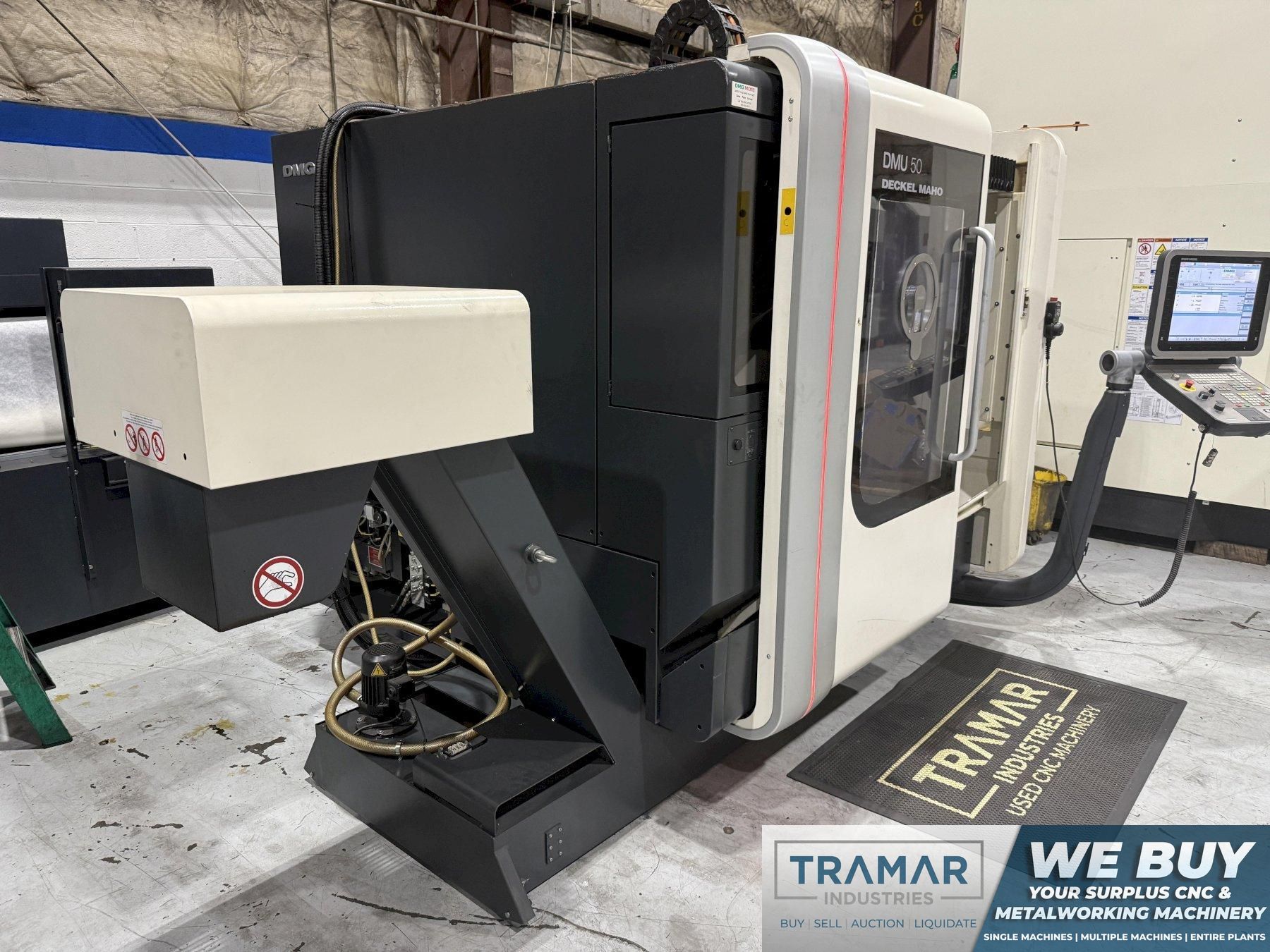

Used 2011 DMG Mori DMU 50 5-Axis CNC Vertical Machining Center For Sale

Equipped With:

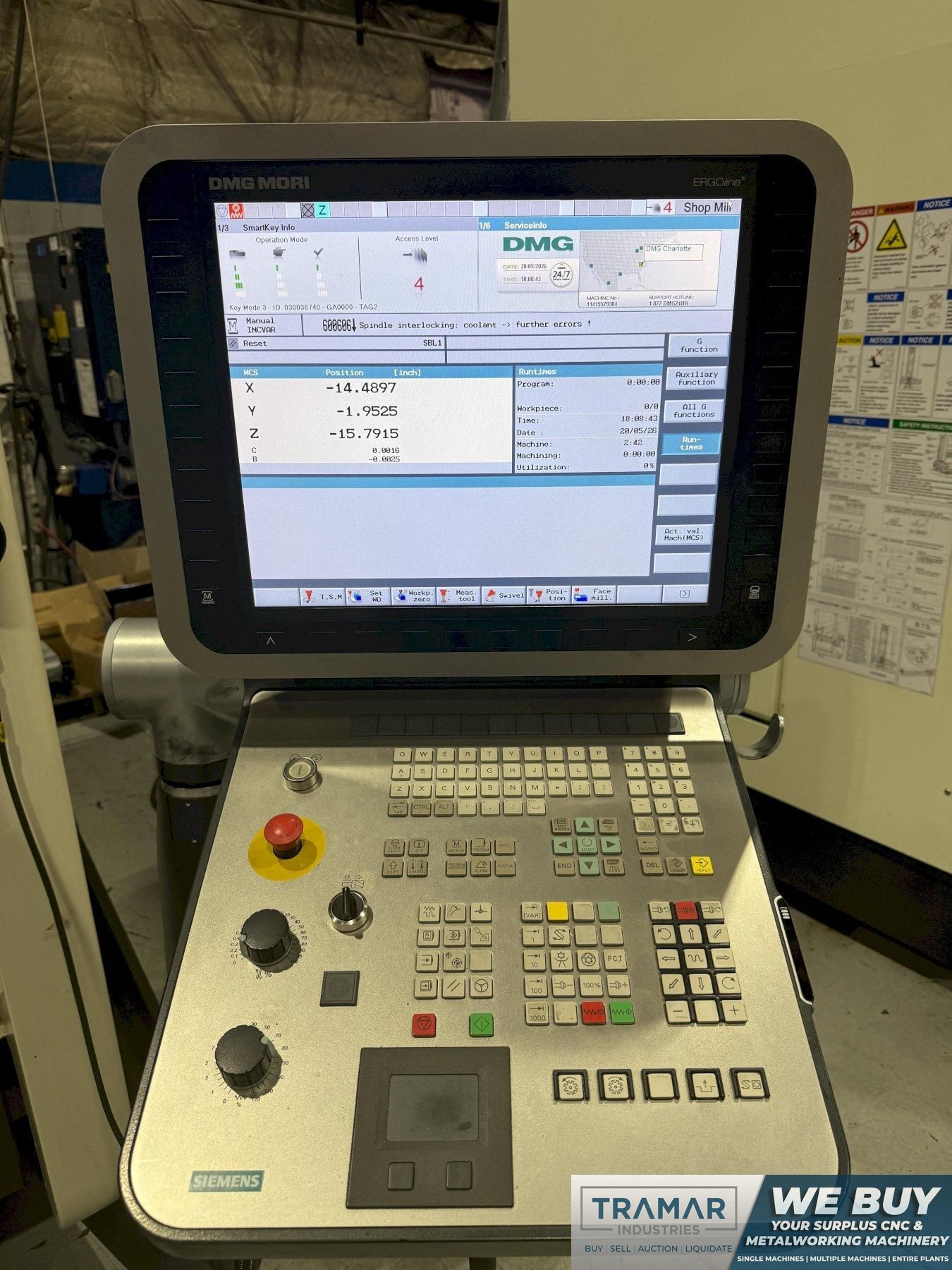

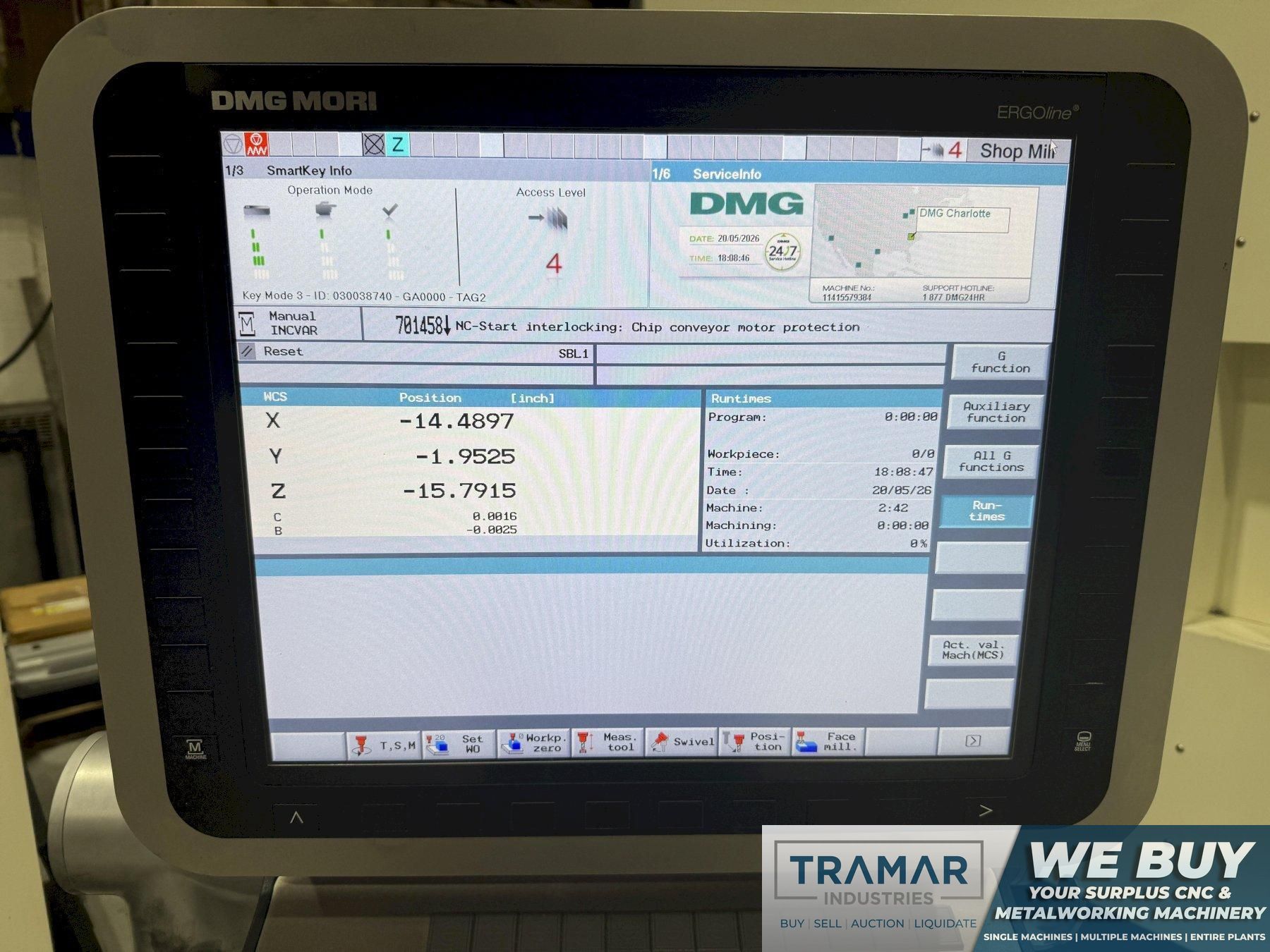

- Siemens Sinumerik 840D SL CNC Control
- Chip Conveyor
- Coolant Tank & Pump

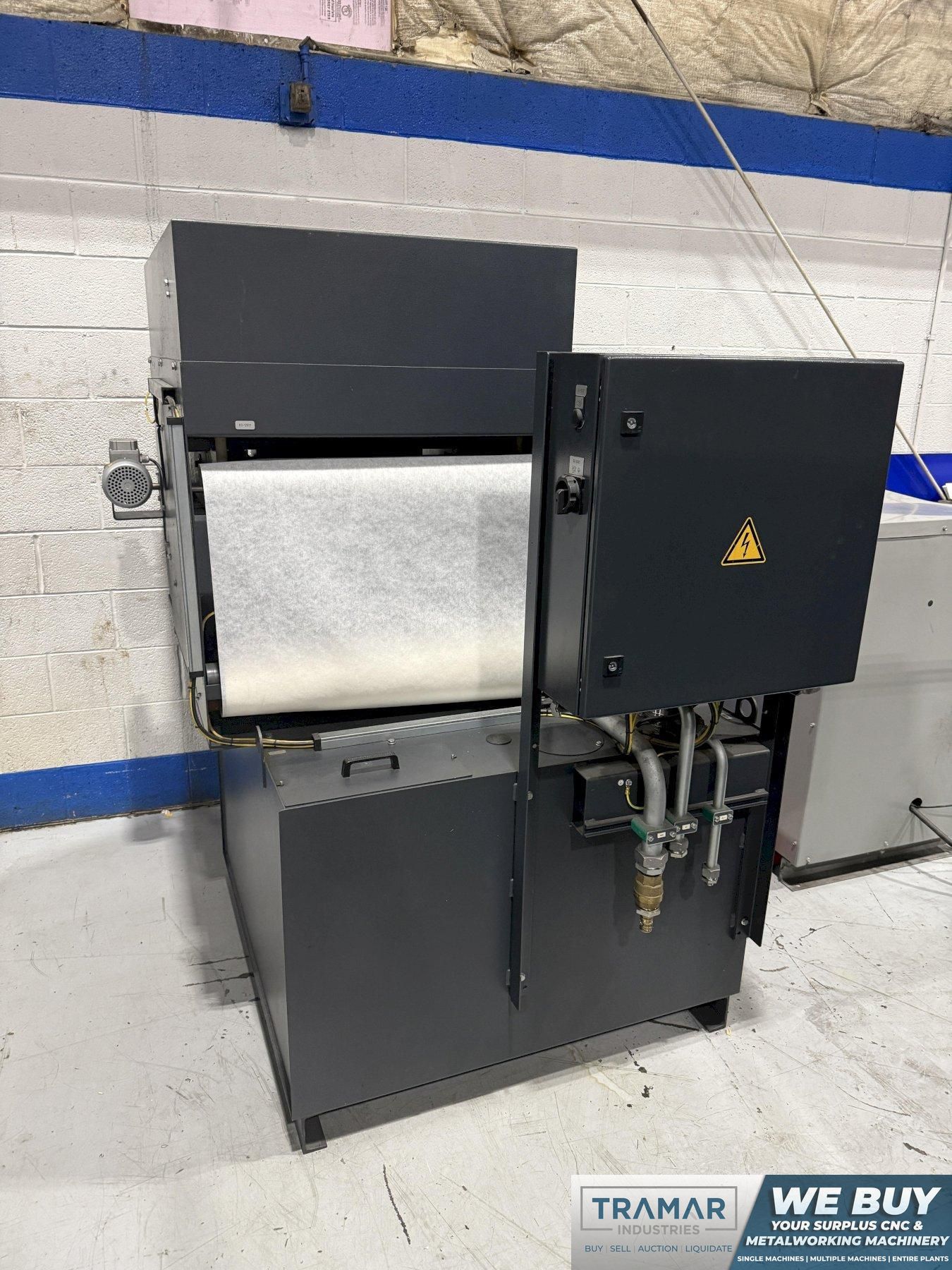

- Paper Coolant Filtration Unit
- Renishaw Probing
- 3D Quickset
- Glass Scales on X/Y/Z Axes
- Coolant Thru Spindle
- 5-Axis Simultaneous Machining
- Available Manuals

*** VIDEO CLICK HERE ***

Machine Videos

Machine Specifications

Inch

Metric

Machine Specifications:

Year

2011

CNC Control

yes

Control Type

Siemens Sinumerik 840D SL

# Axis

Table Size

24.8" x 19.7"

Max Table Load

661 pounds

X-Axis Travel

19.7"

Y-Axis Travel

17.7"

Z-Axis Travel

15.7"

B Axis Rotary

-5° / +110°

A Axis Rotation

0.001°

Rapid Traverse Rate (X/Y/Z)

1,181 ipm

Spindle Taper

CAT 40

Spindle Speed

18,000 rpm

Main Motor

33.5 hp

ATC Capacity

Coolant Thru Spindle

yes

Machine Dimensions

133" x 90" x 109"

Machine Weight

10,000 pounds

Equipped With:

The DMG Mori DMU 50 is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
