Okuma Multus B400 - Lathes (3-Axis or More)

Share Machine

Specifications Print Specs

Model: Multus B400

Year: 2007

Stock #: B1549 Sold

Type: Lathes (3-Axis or More)

Manufacturer: Used Okuma Machines

Highlights:

Okuma Multus B400 6-Axis CNC Turning/Milling Machine, OSP-200L Control, 27.9

Equipped With:

40 Station Tool Changer (Capto C6 Tooling)
Coolant Thru Spindle
Collision Avoidance
Renishaw Probing
15" Hydraulic Chuck
Big Bore Option
Full B Axis (0.001Deg)
Tool Probe
Tailstock

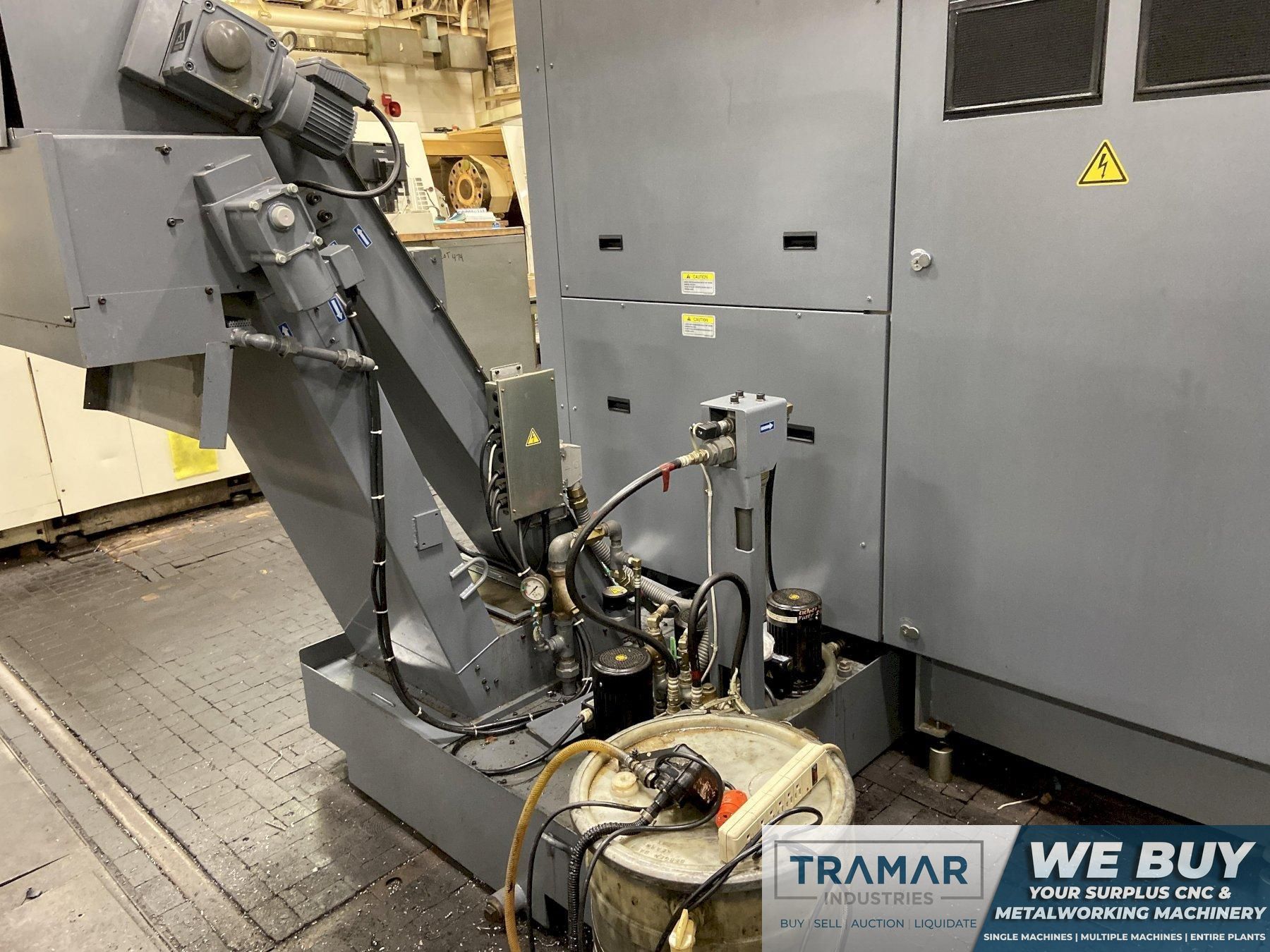

Chip Conveyor
Misc Toolholders (approx 26)
Coolant Tanks & Pumps
Installed New 3/2007

Machine Specifications

Inch

Metric

Machine Specifications:

Year

2007

# Axis

Control Type

OSP-200L

Chuck Size

15"

Spindle Nose

A2-11

Swing

27.9"

Turning Diameter

27.9"

Center Distance

59"

Bar Capacity

4.33"

C-Axis

yes

X Axis Travel

27.1"

Y-Axis Travel

Z Axis Travel

60"

Y-Axis Travel

9.06"

B Axis

30 - 195 Deg

X Axis Rapid Feedrate

1,574 inches-per-minute

Y-Axis Rapid Feedrate

1,023"

Z Axis Rapid Feedrate

1,574 inches-per-minute

Spindle Speed (RPM)

2,800

Main Motor

40 HP

Live Milling (Yes / No)

yes

Milling Spindle Motor

27 Horsepower

Milling Spindle Speed

10,000 RPM

Tailstock (Yes/No)

yes

Equipped With:

The Okuma Multus B400 is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
