Mazak QTN-350II - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: QTN-350II
Year: 2010
Stock #: 13762 Sold
Highlights:
Mazatrol Matrix Nexus Control
Tool Presetter
Tailstock
50" Centers

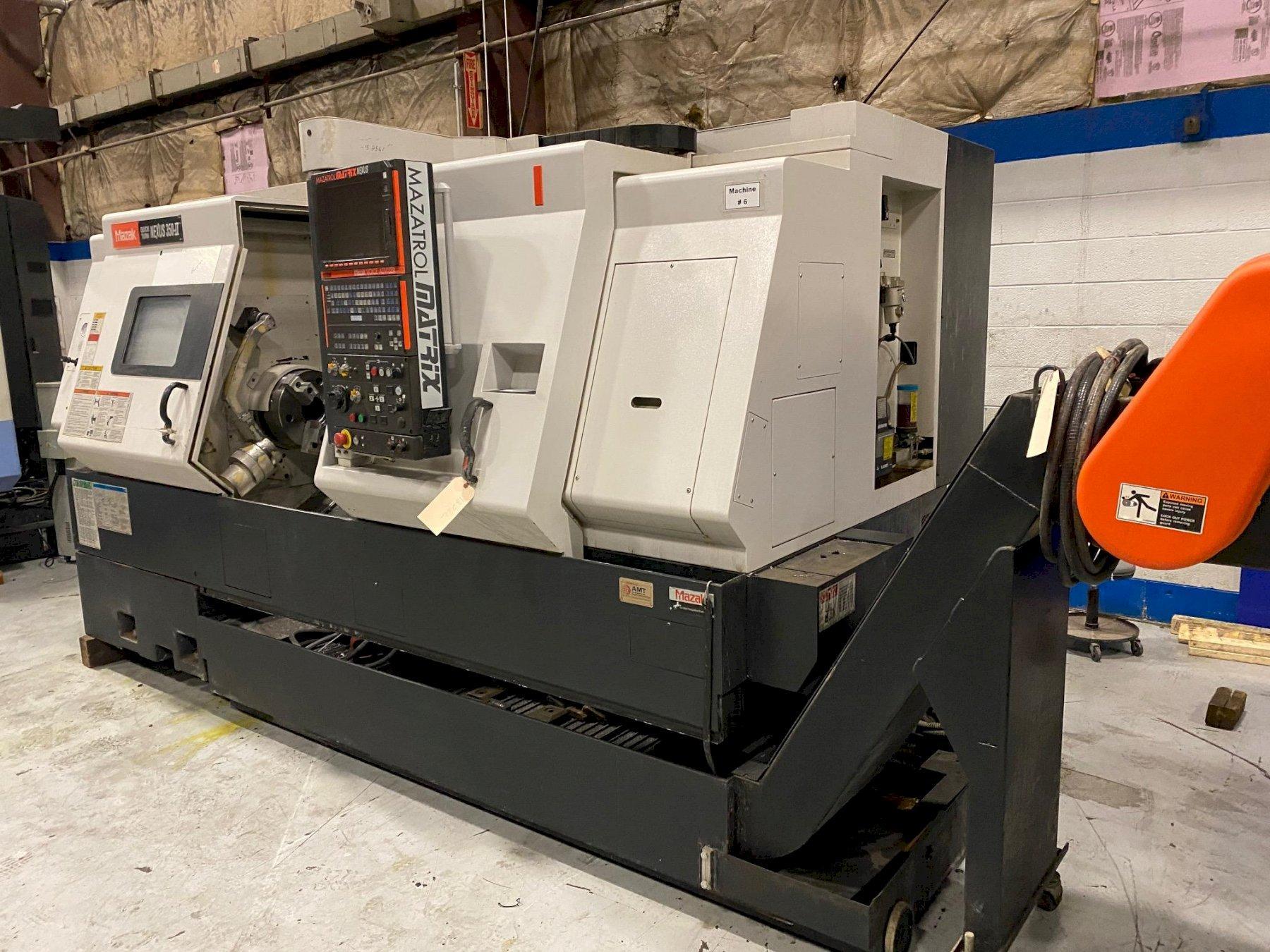

Mazak QTN-350II CNC Horizontal Lathe 2010
Machine Specifications
Year
2010
# Axis
2
Swing
26.77"
Turning Diameter
16.54"
Center Distance
46.3"
Chuck Size
12"
Bar Capacity
4"
X Axis Travel
10.13"
Z Axis Travel
49.12"
Rapid Traverse (X/Z)
1,181/1,299 ipm
Spindle Nose
A2-11
Spindle Speed
3,300 rpm
Main Motor
40 hp
Tailstock
yes
Live Tooling
no
Y Axis
no
Sub Spindle
no
Turret Capacity

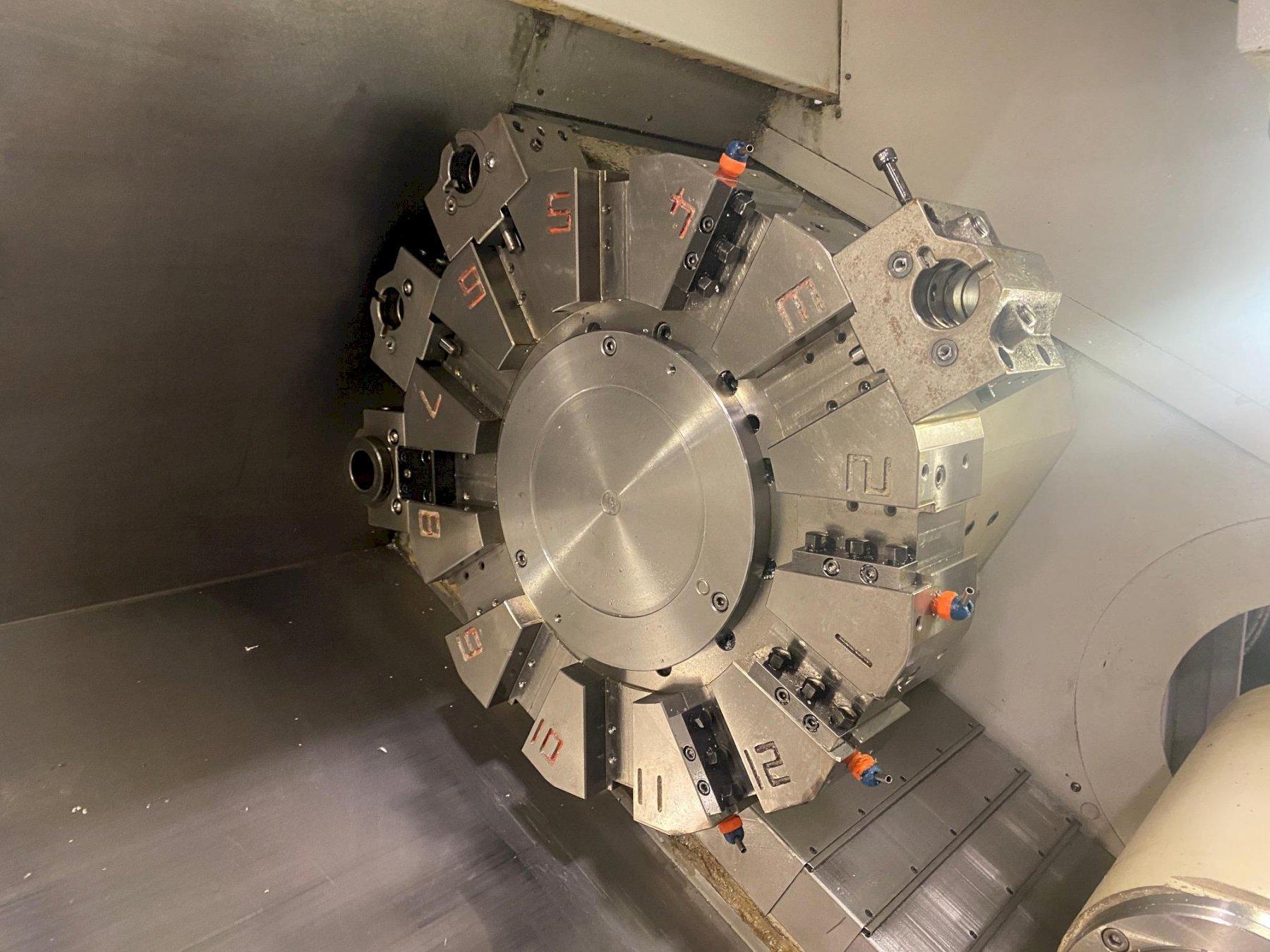

12
Machine Weight
16,000 pounds

Equipped With:

- Mazatrol Matrix Nexus Control
- Tool Presetter
- Chip Conveyor
- Coolant Tank & Pump
- Programmable Tailstock
- Kitagawa BB212 Hydraulic Chuck
- (2) USB Ports

The Mazak QTN-350II is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
