Makino A-61 - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: A-61
Year: 2006
Stock #: BR15966 Sold
Highlights:

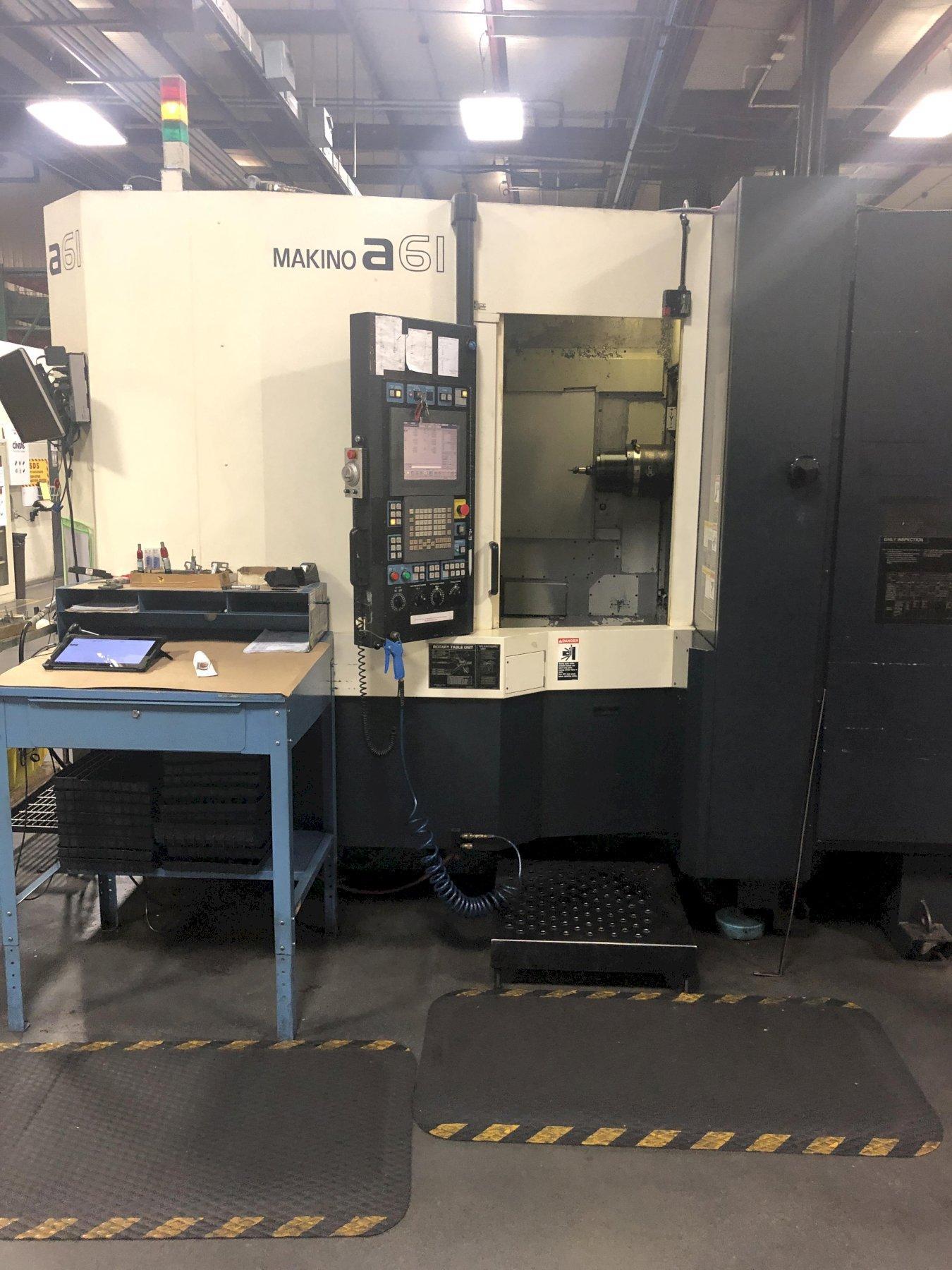

Makino A61 CNC Horizontal Machining Center, Fanuc Pro 5, 12K Spindle, 19.7
Machine Specifications
Year
2006
CNC Control
Fanuc Professional 5
# Axis
4
Pallet-W
19.7"
Pallet-L
19.7"
Pallet Capacity
1,100 pounds
Pallet Indexing (B-Axis)
.1
X
28.7"
Y
25.6"
Z
28.7"
X-Axis Rapid Feedrate
1,968 ipm
Y-Axis Rapid Feedrate
1,968 ipm
Z-Axis Rapid Feedrate
1,968 ipm
Spindle Speed
14,000
Spindle Taper
Cat 40
Tool Changer Capacity
60
Coolant Through Spindle
yes
Power
30 horsepower
Weight
26,900 pounds

Equipped With:

  • Installed 2007
  • Fully Contouring 4th Axis

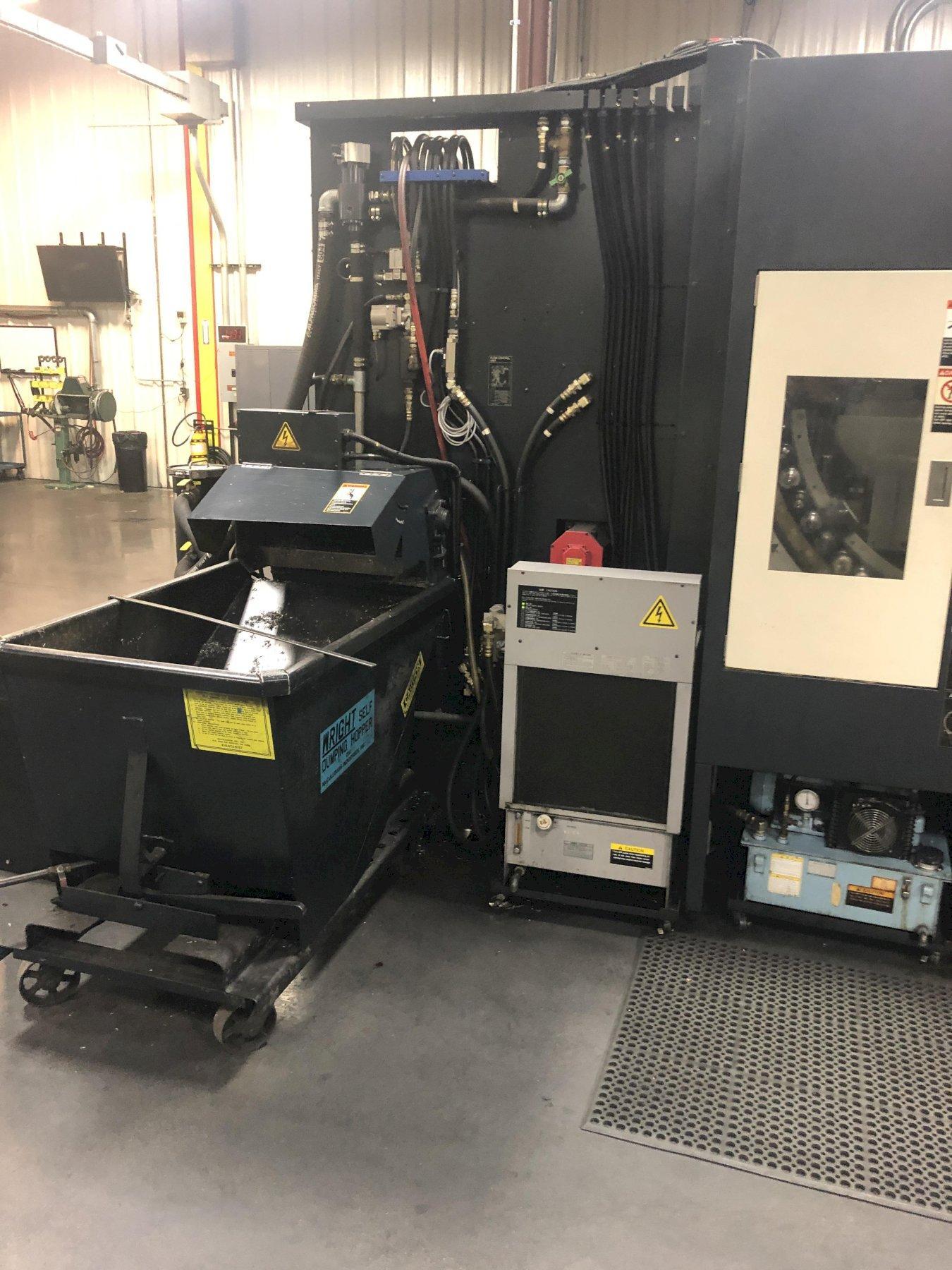

  • Chip Conveyor
  • Renishaw MP700 Work Probe
  • Renishaw NC4 Non Contact Laser
  • Data Server
  • Increased Program Storage 1280M
  • Expanded Work Offsets 48, Expanded Editing
  • 200 Tool Offsets Type B
  • 600 Macro Common Variables
  • HP Coolant Thru Spindle (310 psi)
  • Air Dryer
  • Chiller
  • Transformer
  • Coolant Tank & Pumps

The Makino A-61 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
