Johnford DMC-2100H - Machining Centers, Gantry (incld. Bridge & Double Column)

Share Machine
Specifications Print Specs
Model: DMC-2100H
Year: 2004
Stock #: 13795 Sold
Highlights:
Fanuc 18i-MB Control
Heidenhain Glass Scales All Axes
High Speed Machining Package
Table Size: 86.6" x 43.3" | Max Table Load: 13,200 lbs
Travels (X/Y/Z): 80.7" / 51"/ 31.5"
HSK-100A | 15,000 RPM | 40 Station ATC

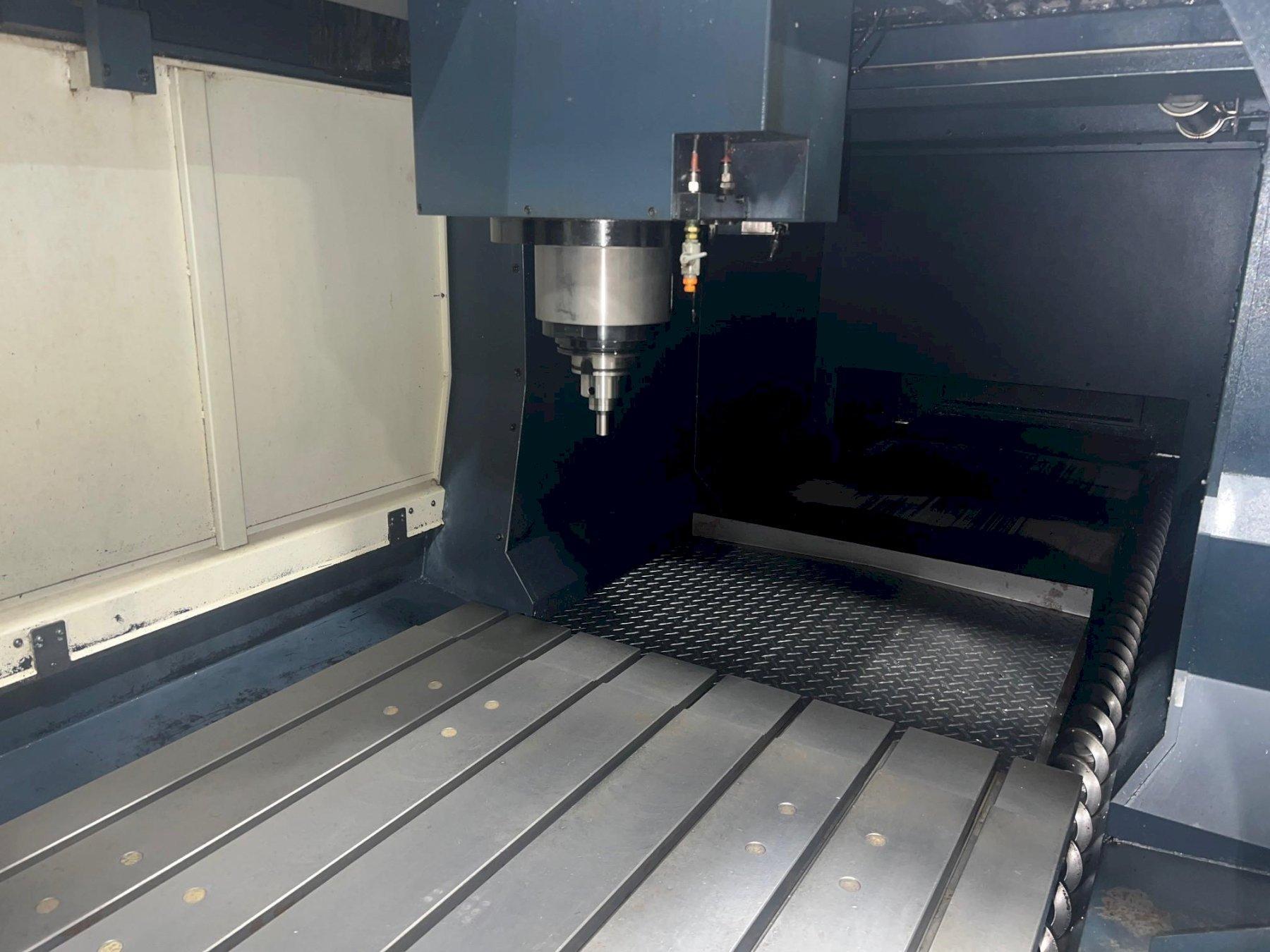

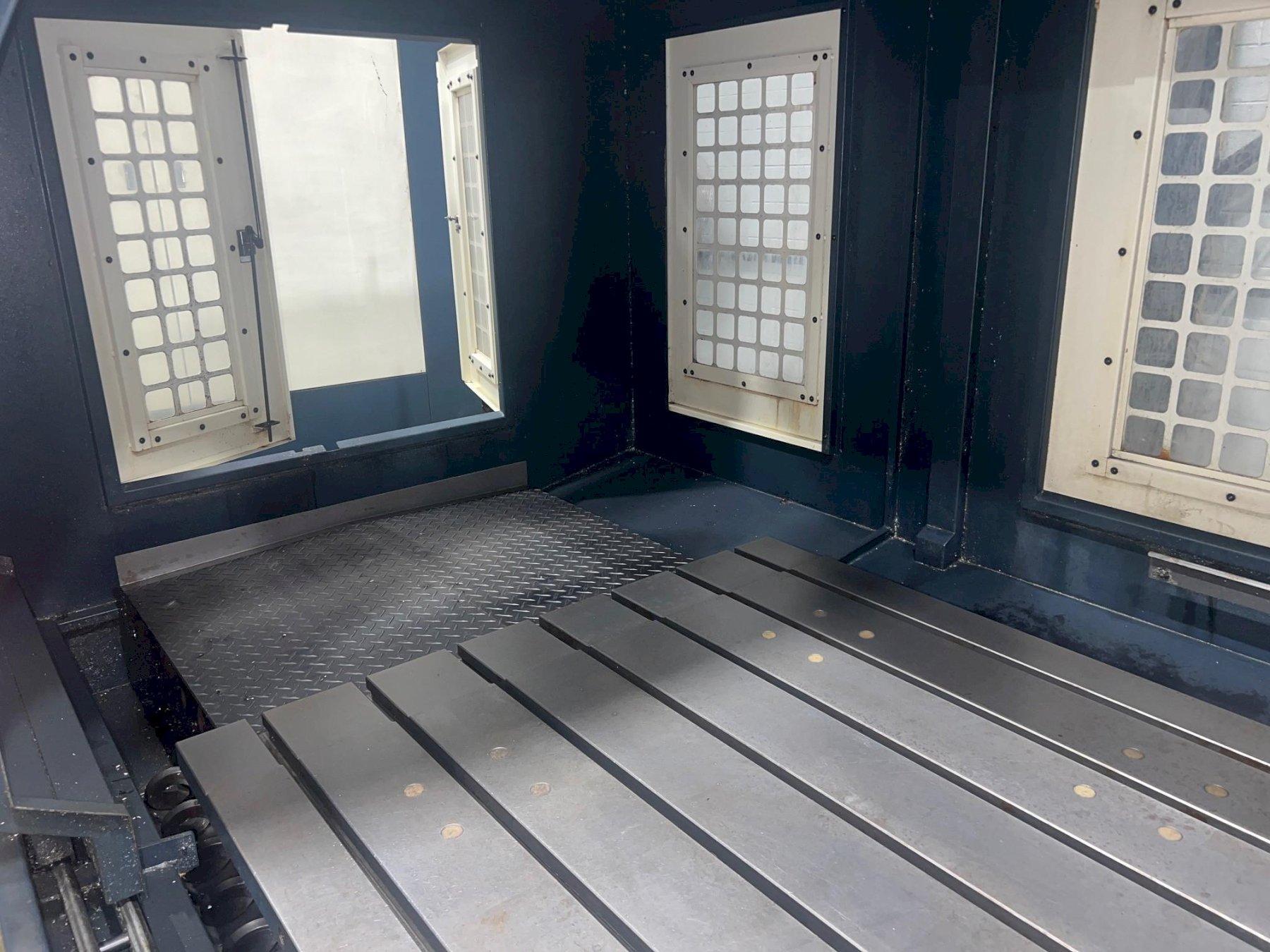

Johnford DMC-2100H CNC Gantry Style Machining Center For Sale - 2004
Machine Specifications
Year
2004
Control Type
Fanuc 18i-MB
Table Size
86.6" x 43.3
Max Table Load
13,200 lbs
X-Axis Travel
80.7"
Y-Axis Travel
51"
Z-Axis Travel
31.5"
Spindle Taper
HSK 100A
Spindle Speed
15,000 rpm
Power
43 horsepower
ATC Capacity
40
Dimensions
255" x 130" x 149"
Weight
52,000 pounds

Equipped With:

- Fanuc 18i-MB Control
- AI NANO Contour Control
- High Speed HRV Function
- Jerk Control
- Manual Guide
- Embedded Ethernet
- Heidenhain Glass Scales on all Axis
- Oil Mist Coolant
- Heat Exchanger
- Full Enclosure
- Double Screw-Type Chip Augers
- Chip Conveyor
- Rigid Tapping
- Custom Macro B
- Spindle Oil Cooler
- Coolant Tank & Pumps

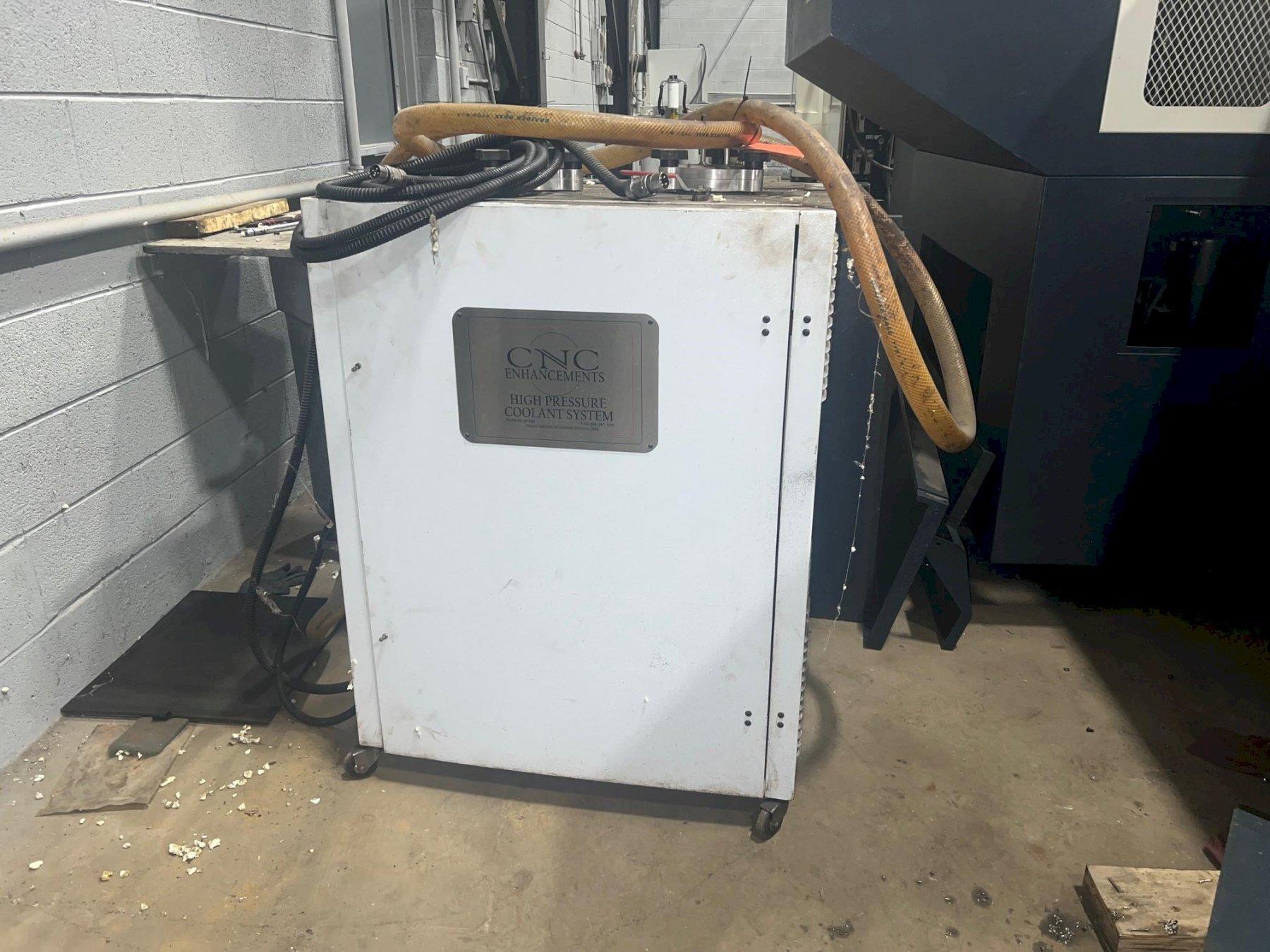

- High Pressure Coolant Thru Spindle (CNC Enhancements Unit)

The Johnford DMC-2100H is an exclusive part of our Machining Centers, Gantry (incld. Bridge & Double Column) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
