Doosan Puma 2600LY II - Lathes (3-Axis or More)

Request Quote
Share Machine
Specifications Print Specs
Model: Puma 2600LY II
Year: 2020
Stock #: MC17088
Highlights:
Fanuc i Series CNC Control
Chip Conveyor & Tank
Live Tooling & Y Axis
Hydraulic Steady Rest (0.78" - 6.5")
Tool Presetter
Tailstock
LIKE NEW - Low Hours

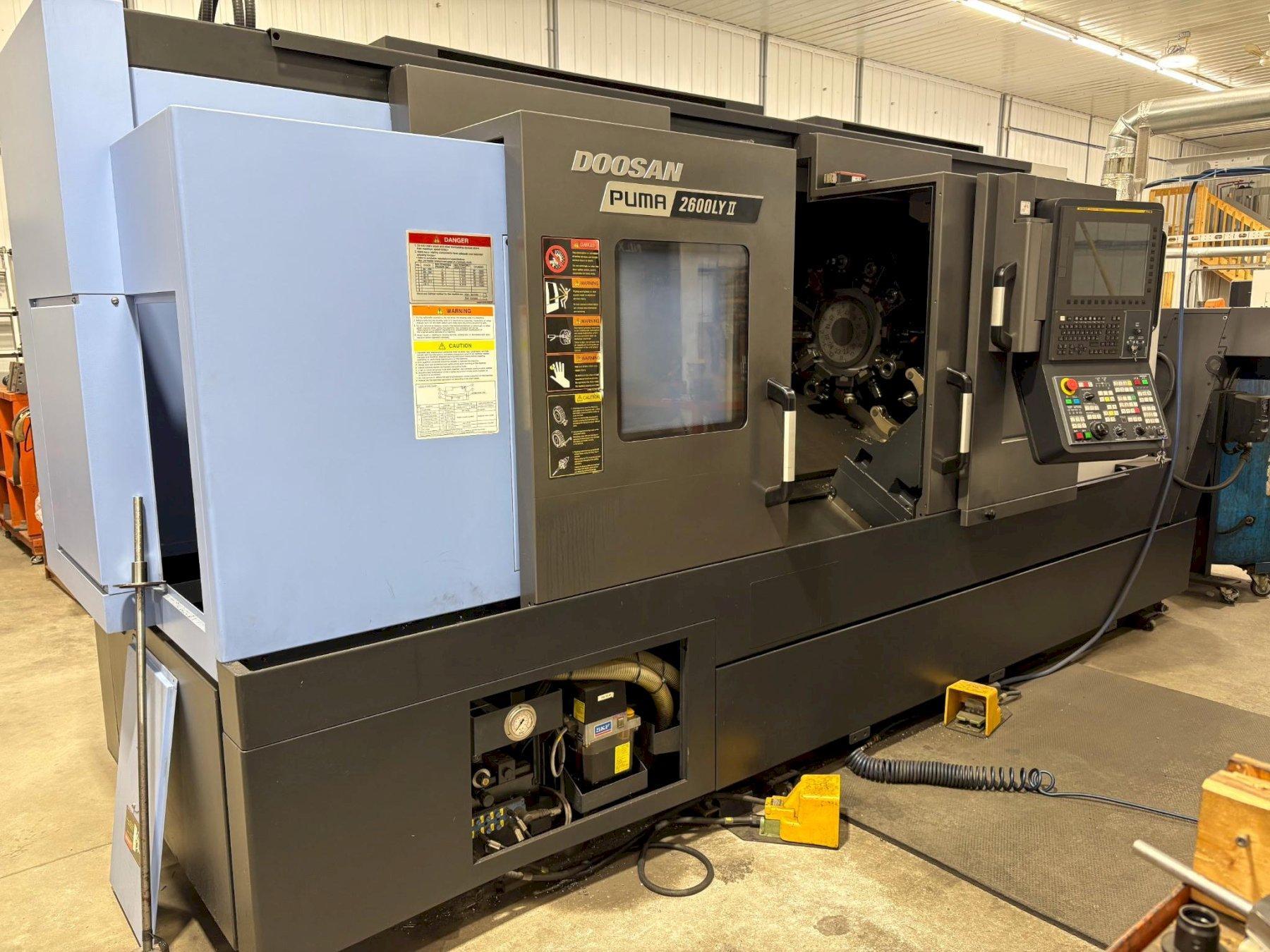

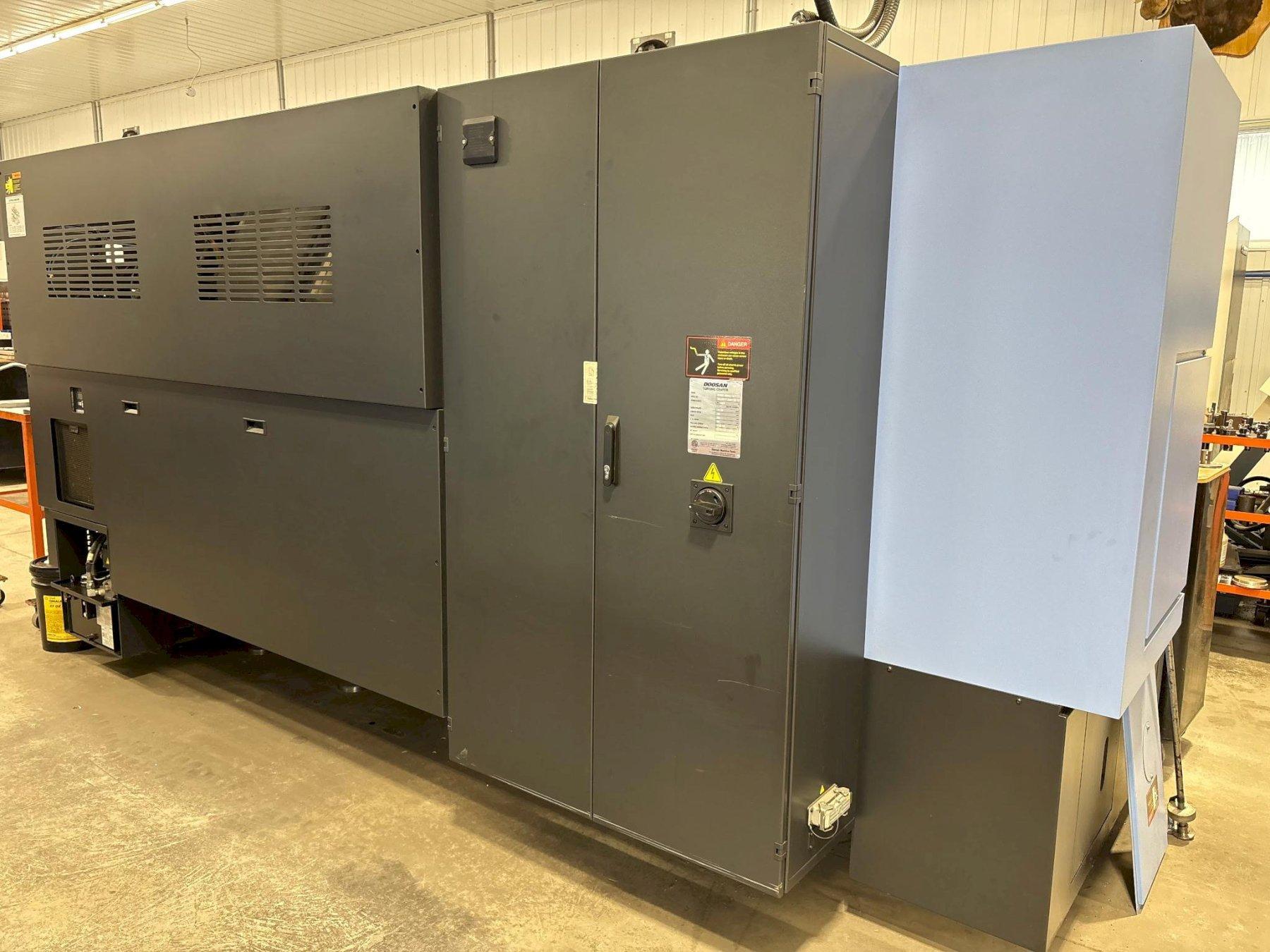

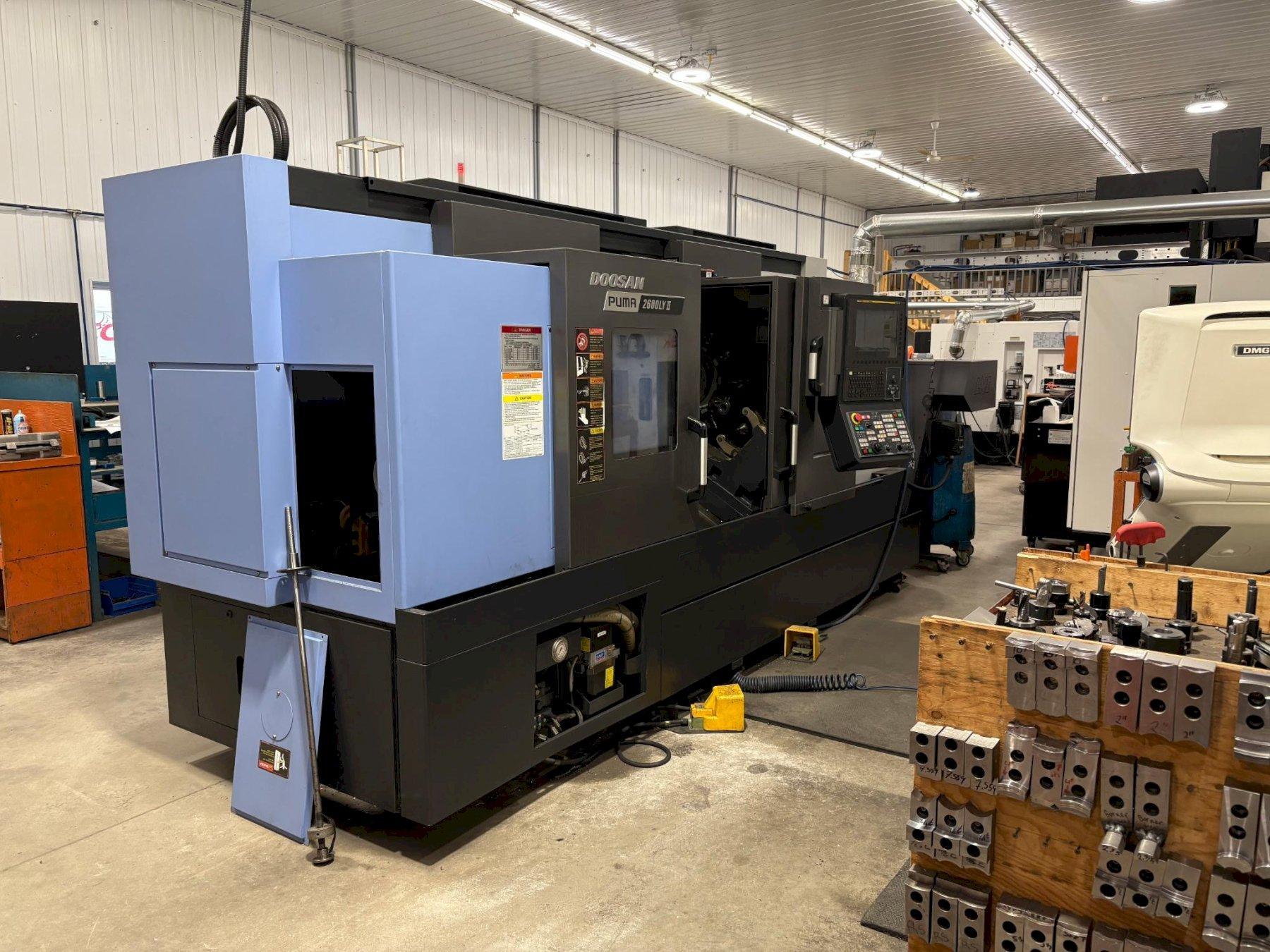

Doosan Puma 2600LY II CNC Lathe For Sale 2020
Machine Specifications
Year
2020
Control Type
Fanuc i
# Axis
4
Swing
30.7"
Turning Diameter
14.8"
Center Distance
50.4"
Chuck Size
10"
Bar Capacity
3.0"
X Axis Travel
10.2"
Y Axis Travel
4.1"
Z Axis Travel
53.1"
C Axis Index
0.001°
Rapid Traverse (X/Y/Z)
1,181/394/1,181 ipm
Spindle Nose
A2-8
Spindle Speed
4,000 rpm
Main Motor
30 hp
Tailstock
yes
Y Axis
yes
Live Tooling
yes
Live Tooling Speed
5,000 rpm
Live Tooling Motor
10 hp
Sub Spindle
no
Turret Capacity
12
Machine Dimensions
175" x 81" x 86"
Machine Weight
16,500 pounds

Equipped With:

- Fanuc i Series CNC Control
- Chip Conveyor
- Coolant Tank & Pump (144 psi)
- Tool Presetter
- Extra Coolant Filtration to Protect Live Tools with Coolant Thru
- 6 Live Tools  (2 with Coolant Thru)
- Y axis Travel 4.1"
- Samchully Self Centering Steady Rest (Drag and Drop)  Capacity: 0.78" - 6.5"
- Very Low Hours (under 1,000 Cutting)
- (Canadian Transformer 600-220v) if needed

The Doosan Puma 2600LY II is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
