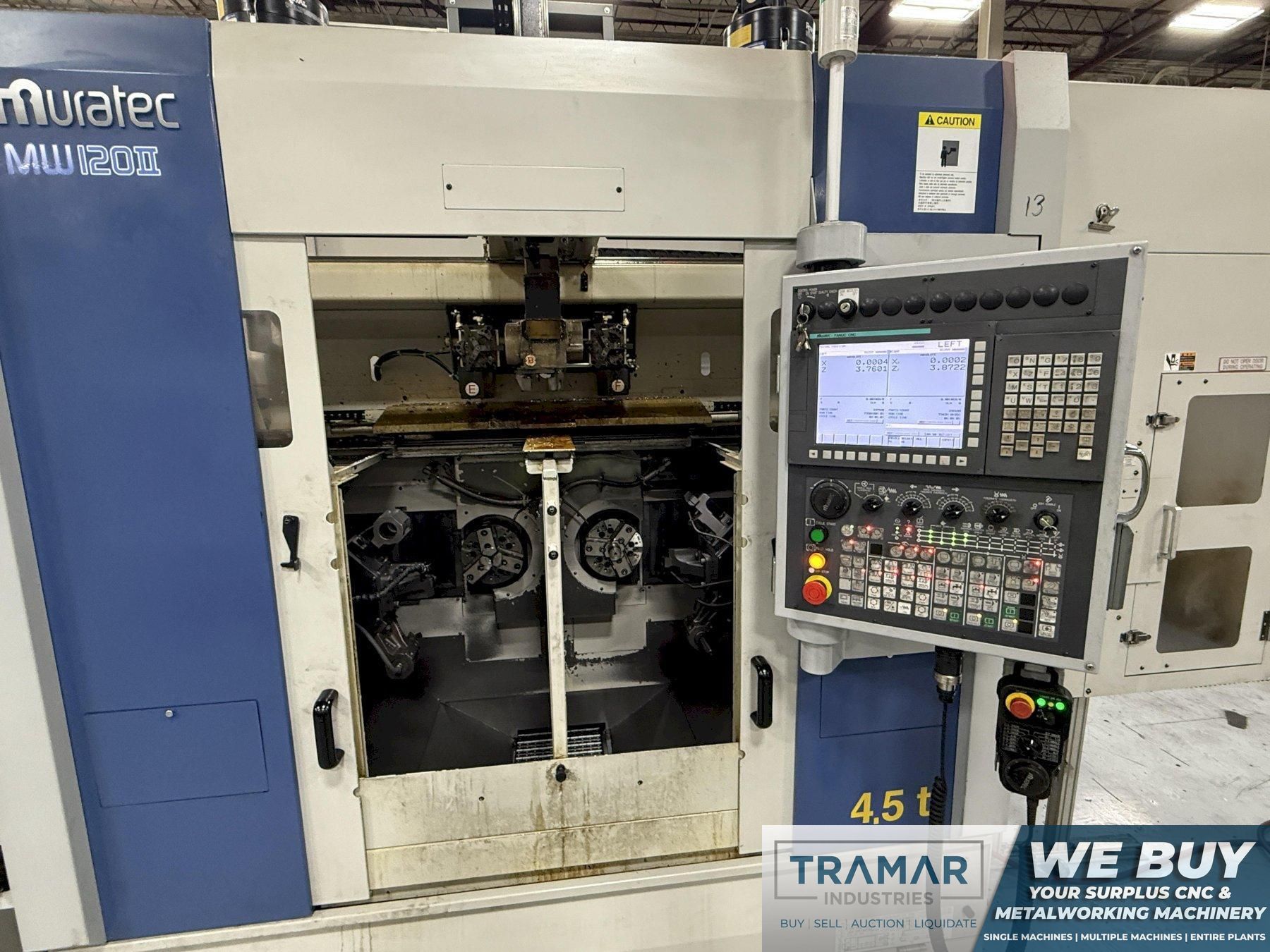

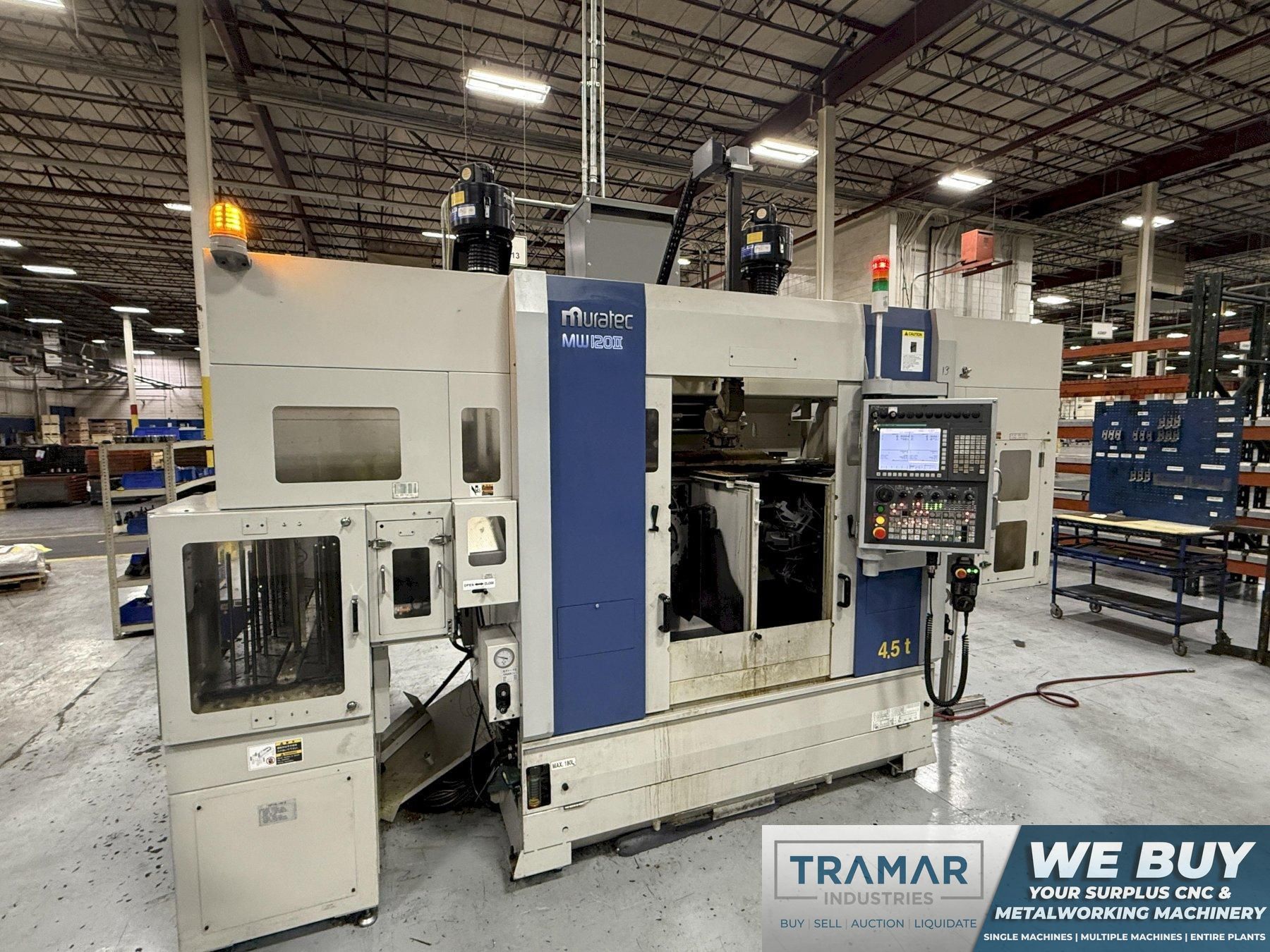

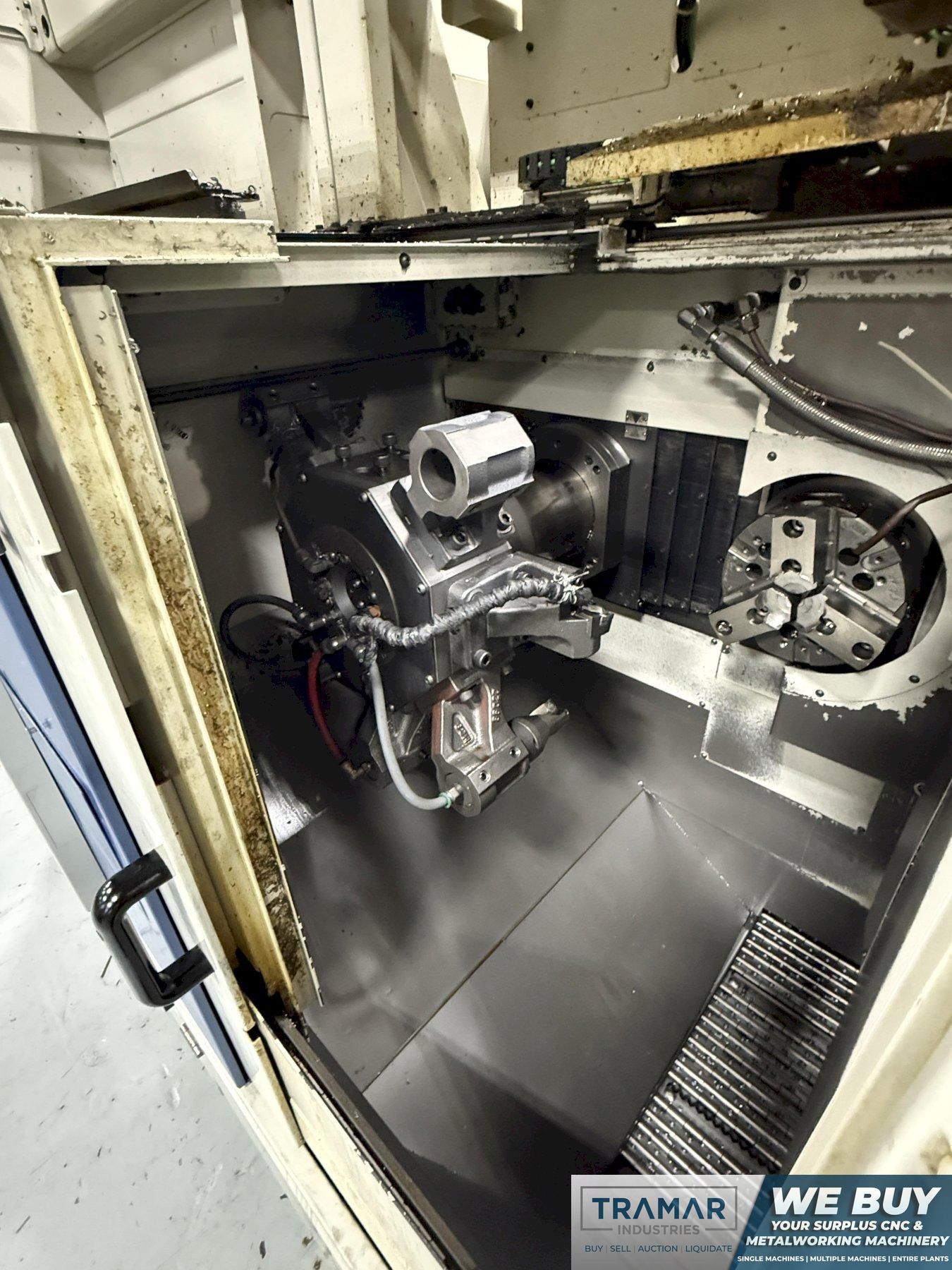

Muratec MW120II - Lathes (3-Axis or More)

Share Machine
Specifications Print Specs
Model: MW120II
Year: 2021
Stock #: 402021-3 Sold
Highlights:

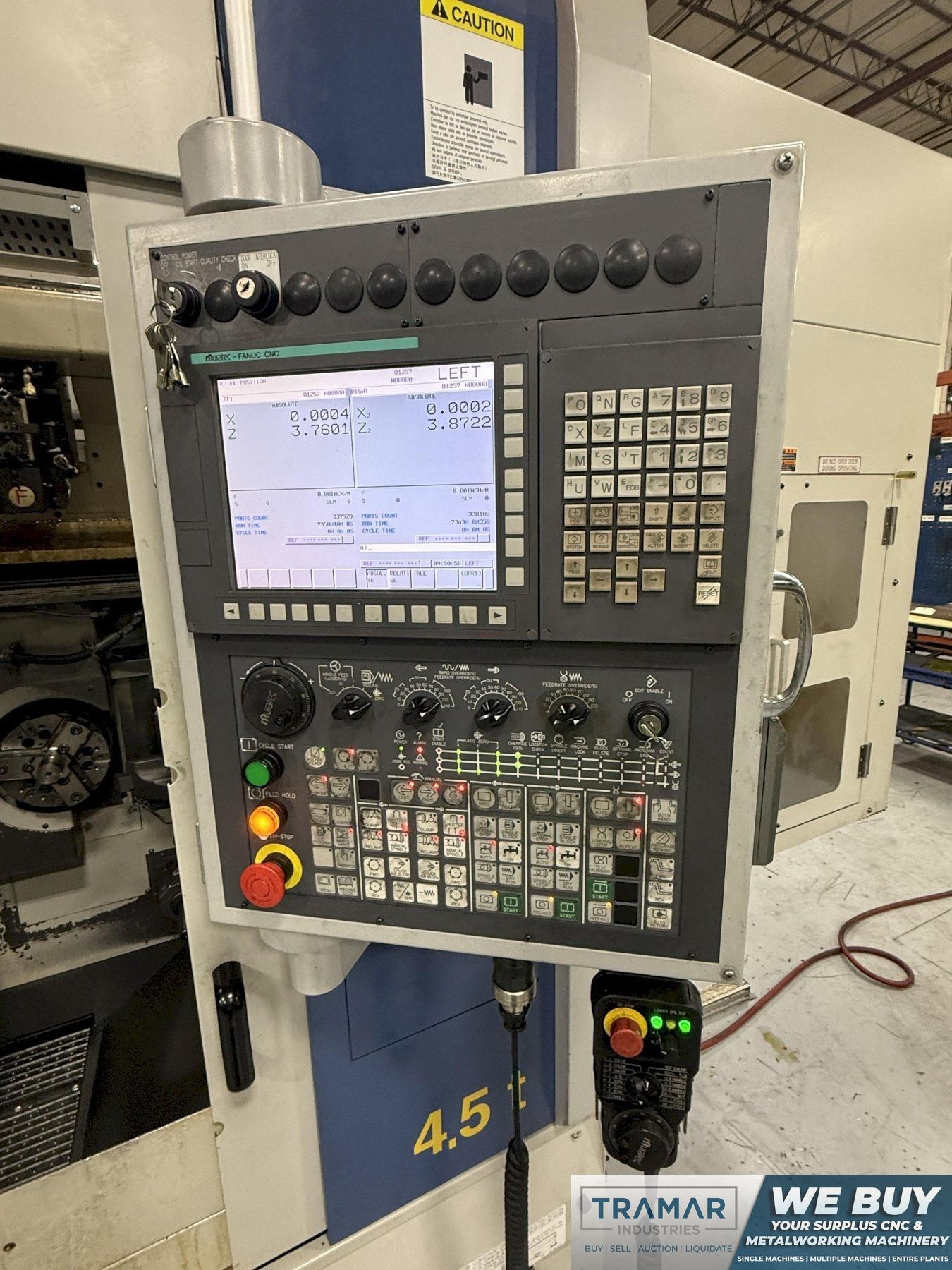

- Fanuc/Muratec CNC Control
- 8" Chuck 3-Jaw Chuck

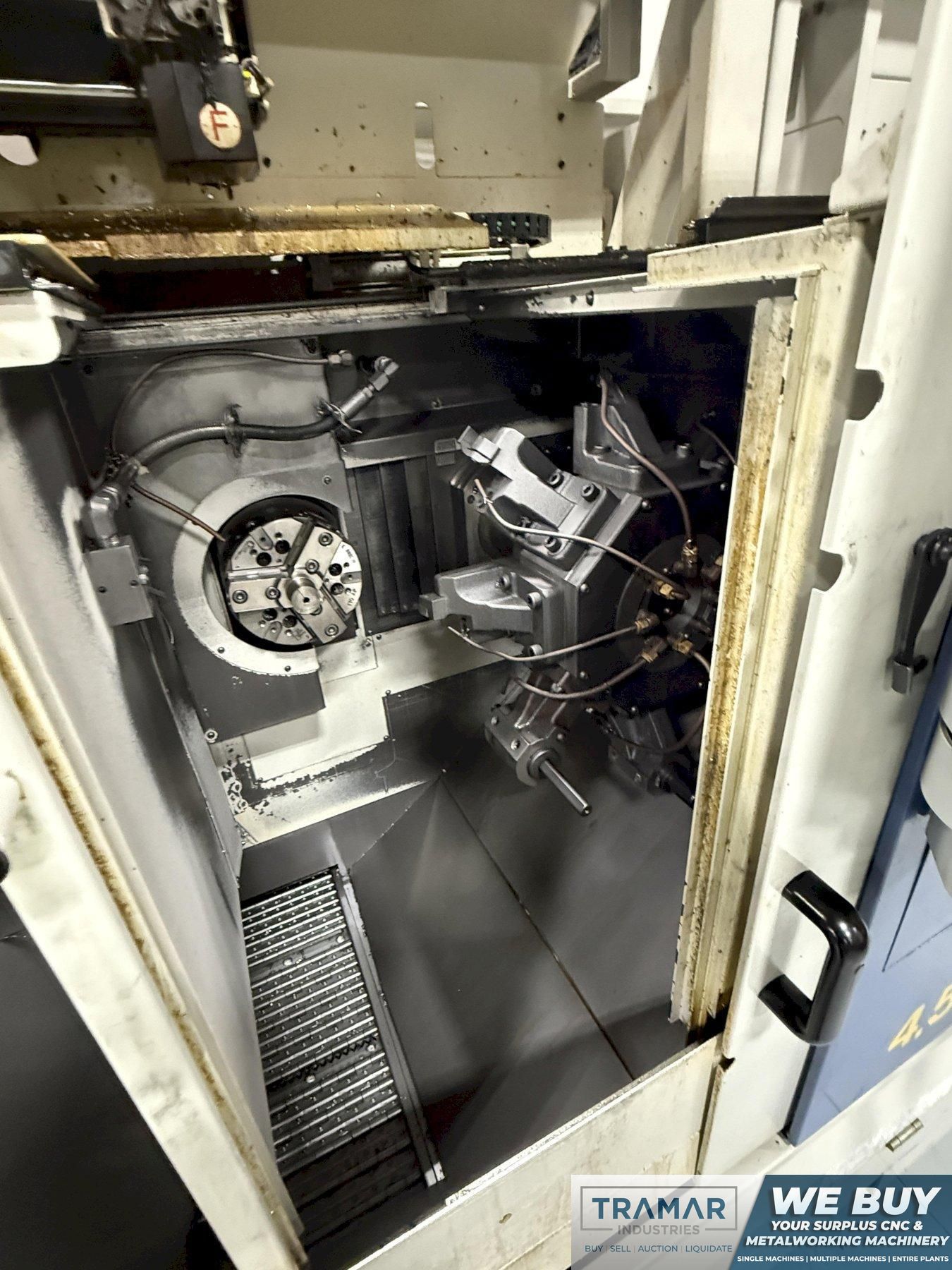

- Twin Spindle
- Dual 8 Position Turrets

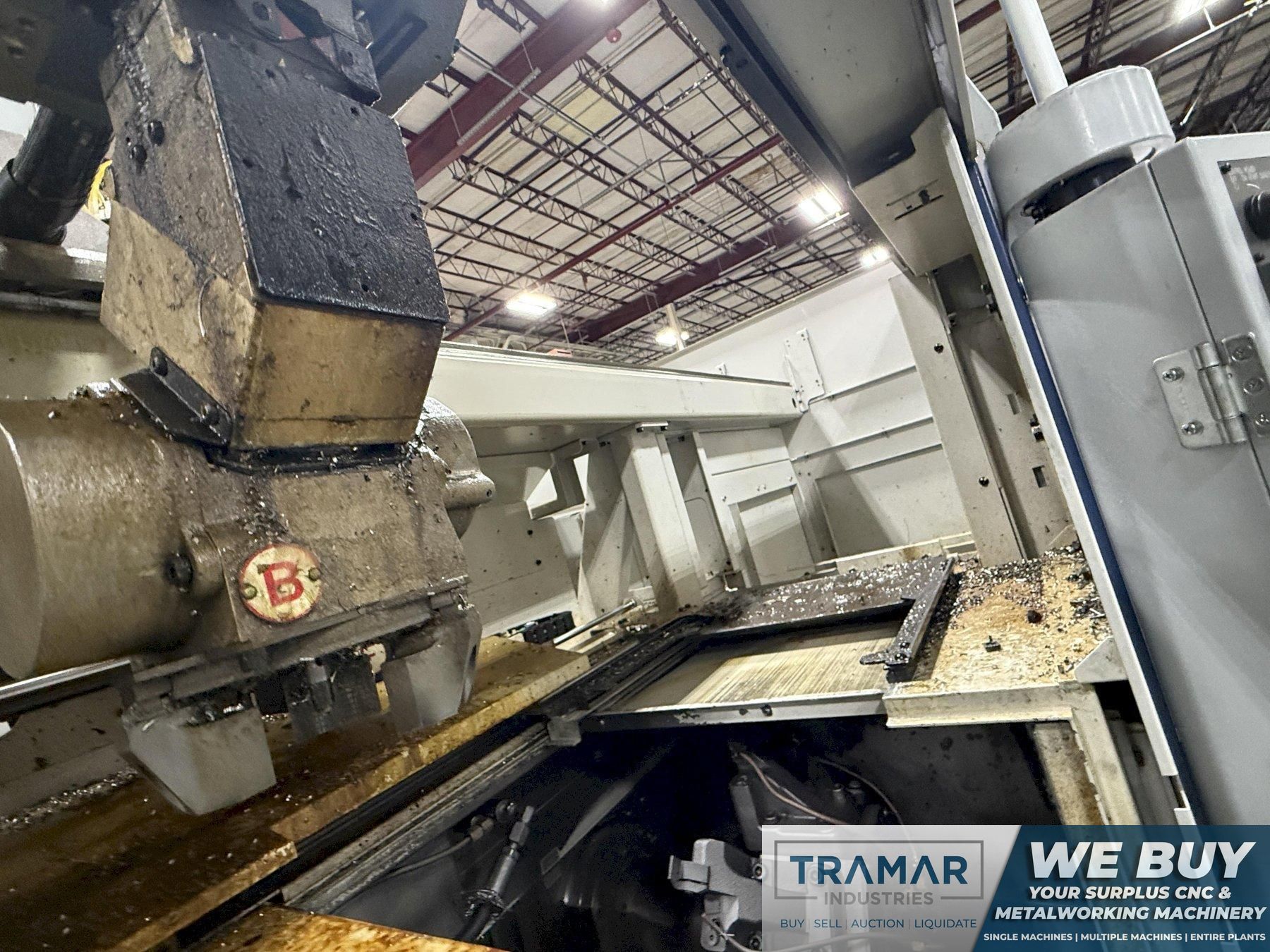

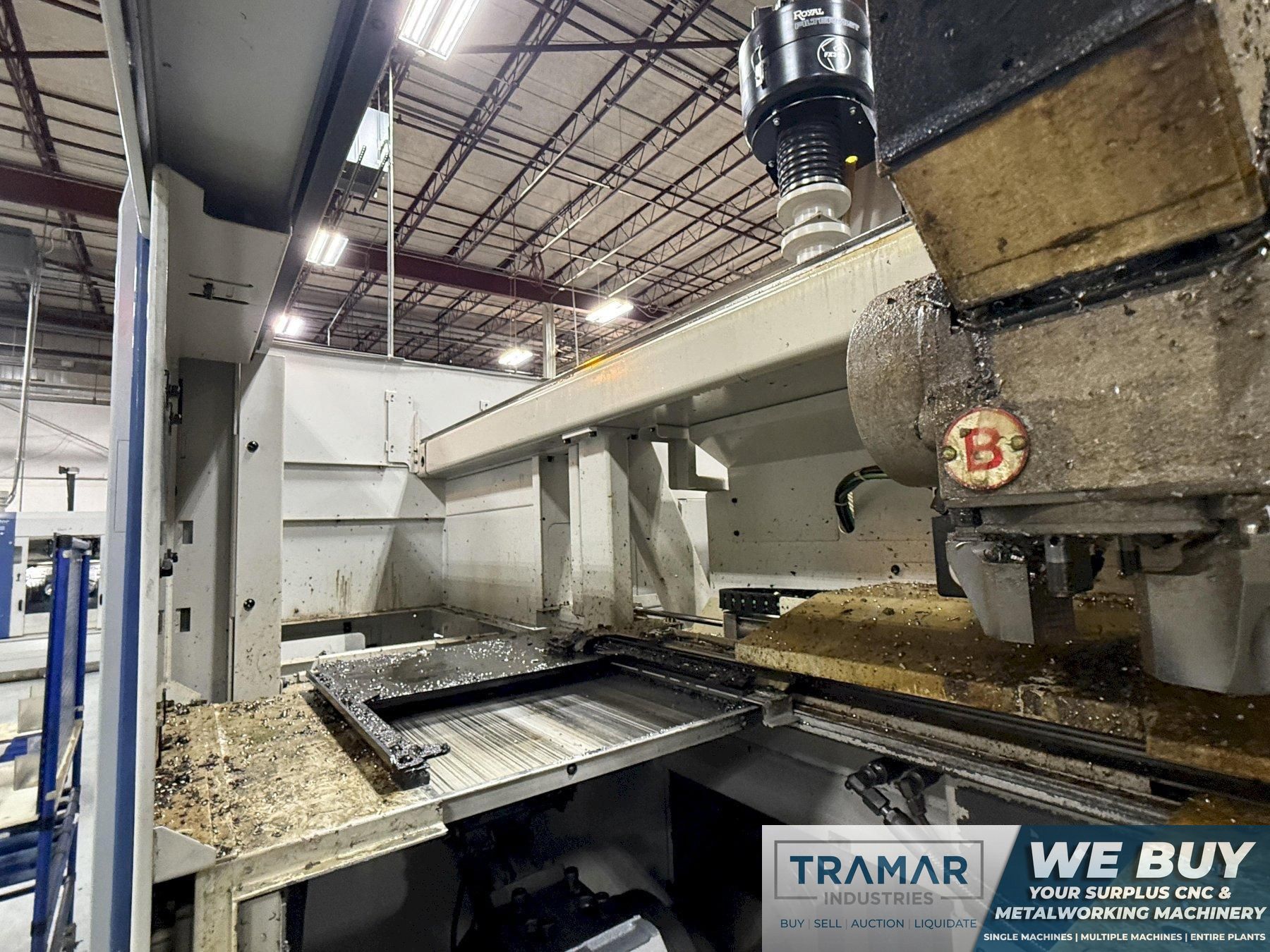

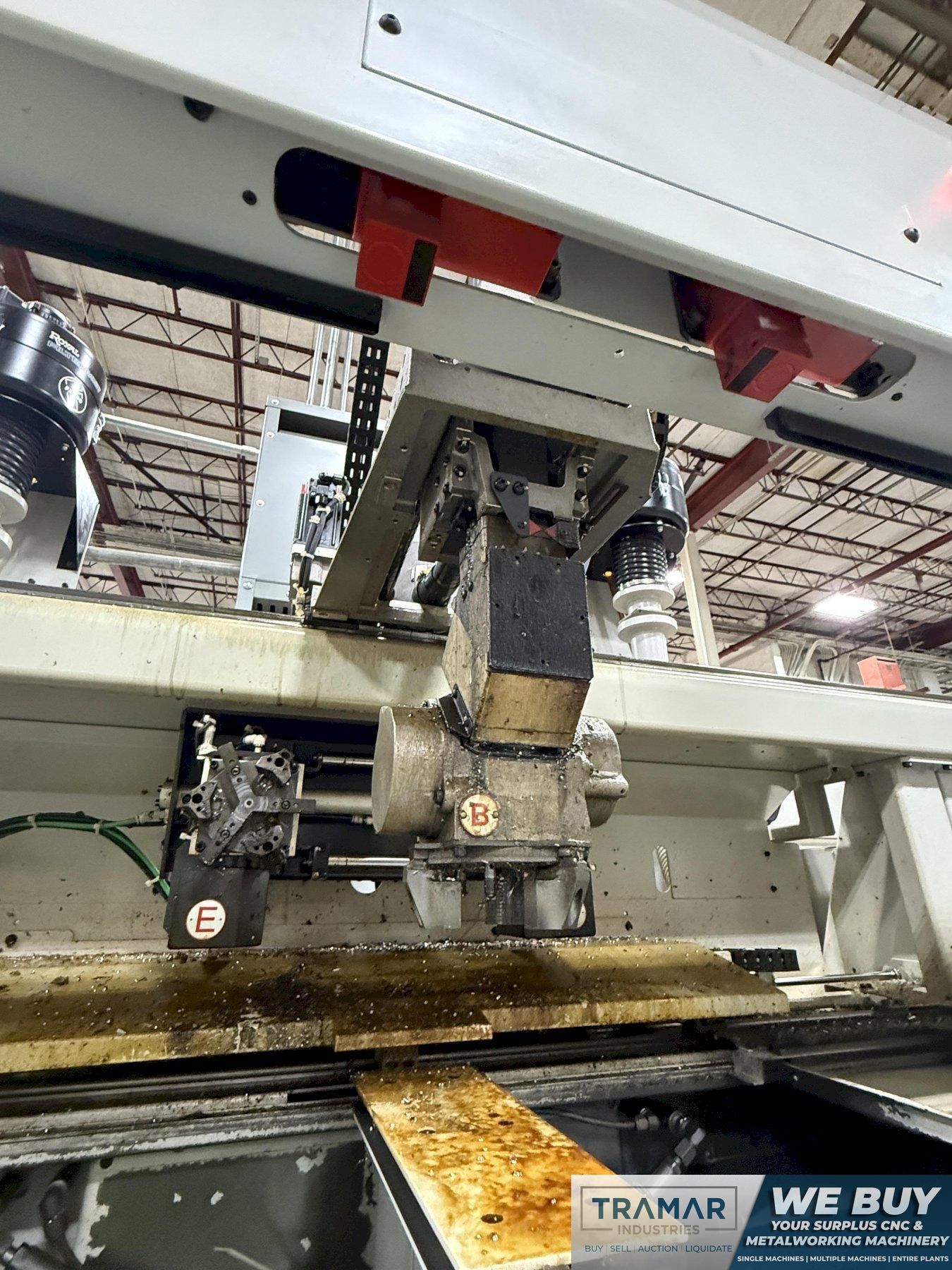

- Gantry Loading System (Single Gantry)
- Max part weight of 6.6Lbs
- Rear Discharge Chip Conveyor

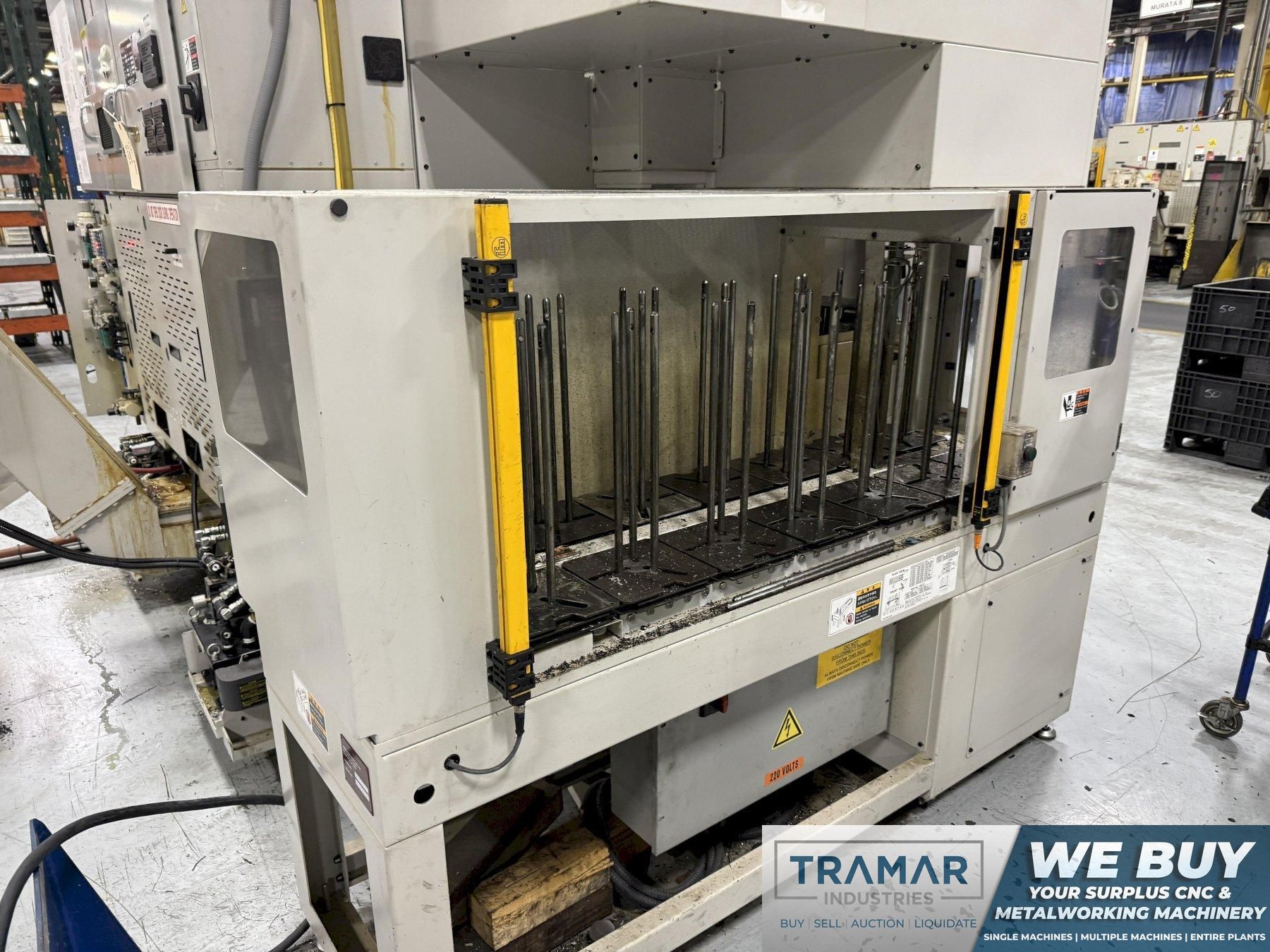

- Parts Stocker

2021 Murata Muratec MW120 Used Twin Spindle CNC Lathe For Sale
Machine Specifications
Year
2021
CNC Control
yes
CNC Control
Fanuc i Series
# Axis
4
Swing
11.61"
Turning Diameter
8"
Max Turning Length
2.95"- Machine w/Loader
Max Turning Length
5.71" - Machine w/out Loader
Chuck Size
8"
X Axis Travel
5.12"
Z Axis Travel
5.7"
Spindle Nose
A2-5
Spindle Speed (RPM)
4,500 rpm
Live Tooling
no
Tailstock
no
Y Axis
no
Turret Capacity
2 Turrets x 8 Stations
Machine Weight
10,000 pounds

Equipped With:

- Fanuc/Muratec CNC Control
- 8" Chuck 3-Jaw Chuck
- Twin Spindle
- Dual 8 Position Turrets
- Single Gantry Loading System
- Rear Discharge Chip Conveyor
- Max Capacity of Gantry 6.6 lbs/Part
- Parts Stocker

The Muratec MW120II is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
