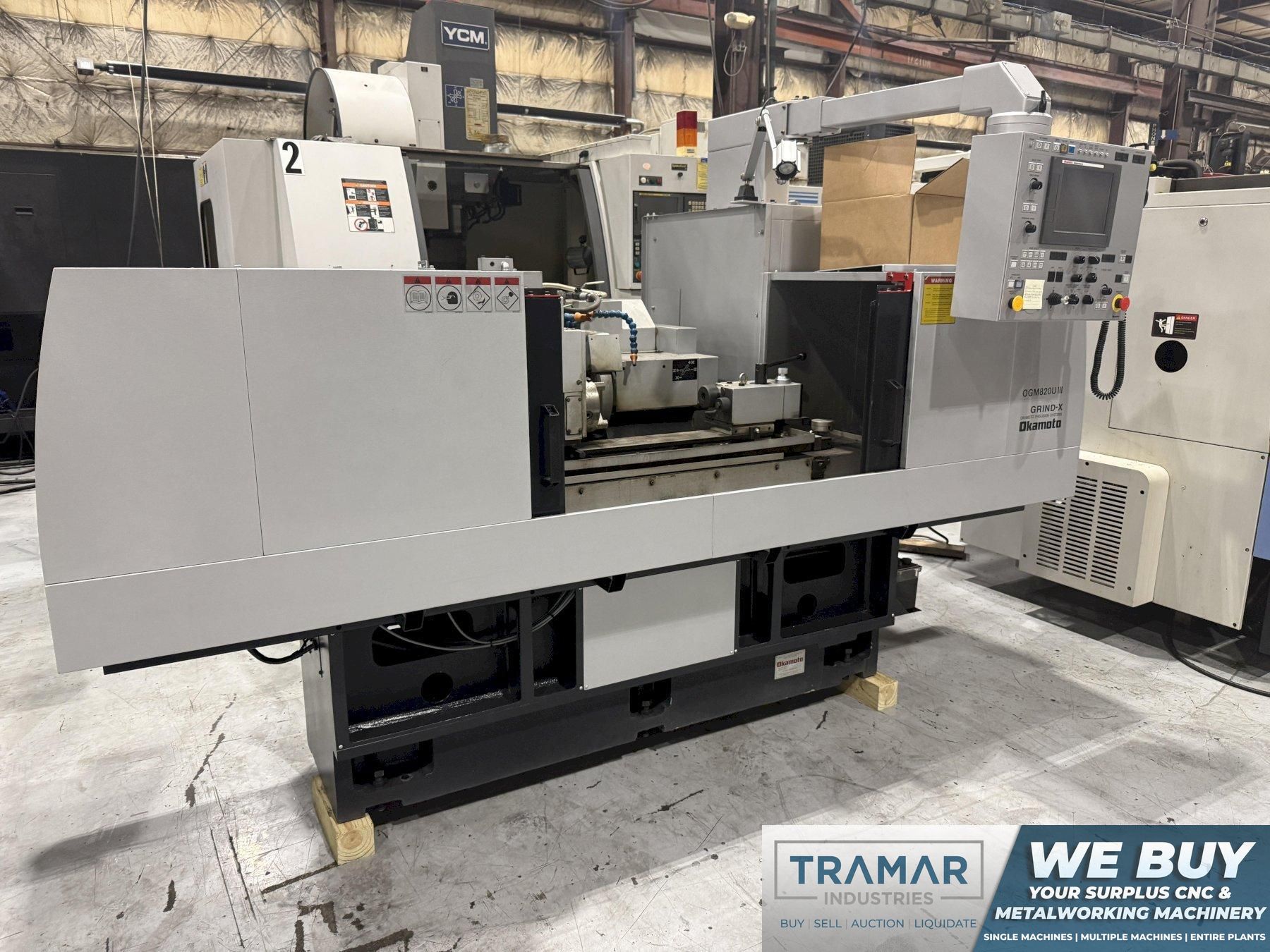

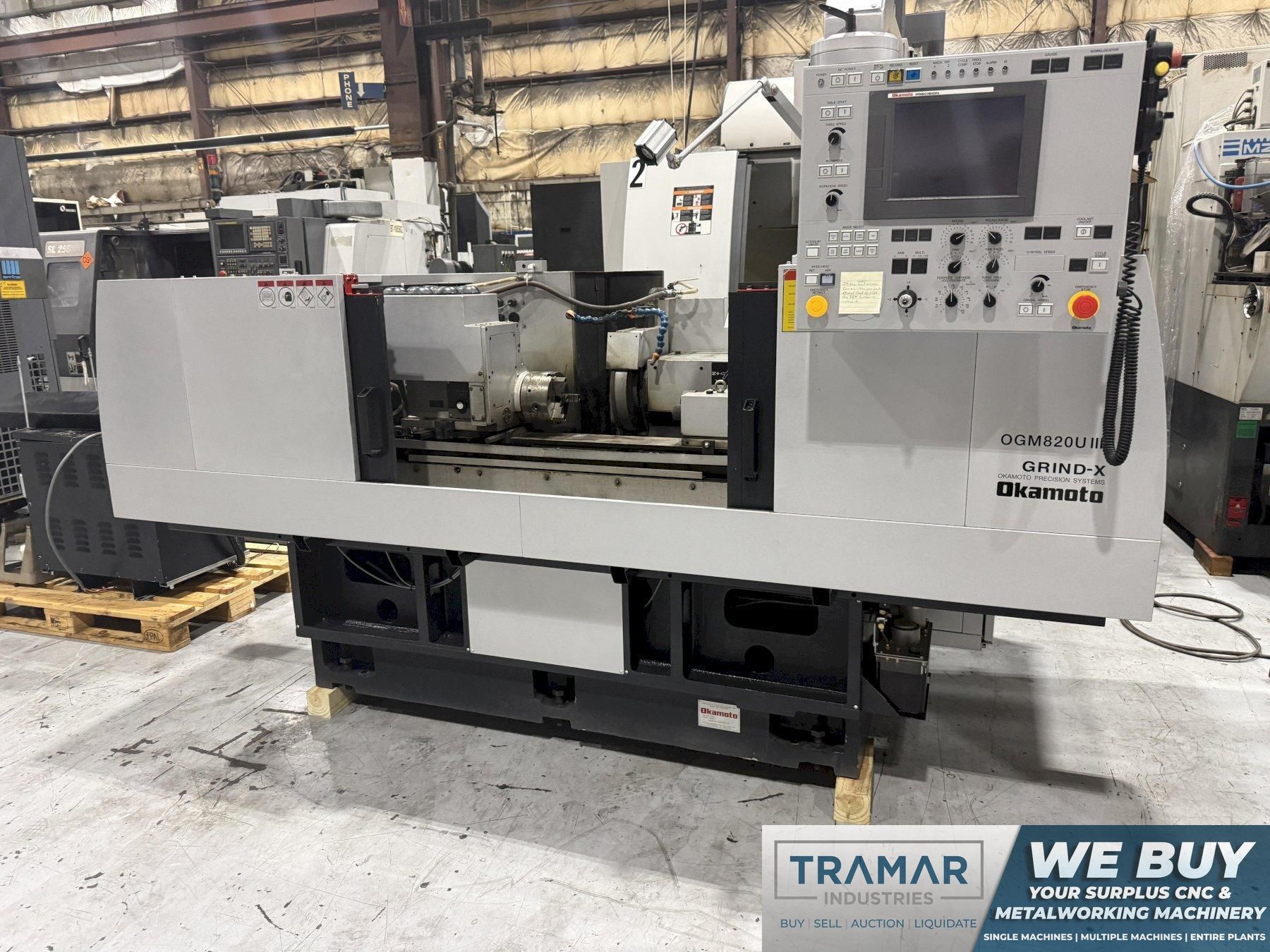

Okamoto OGM 820U III - Grinders, Cylindrical, CNC

Request Quote

Share Machine

Specifications Print Specs

Model: OGM 820U III

Year: 2018

Stock #: 15524

Type: Grinders, Cylindrical, CNC

Manufacturer: Used Okamoto Machines

Highlights:

2018 Used Okamoto OGM 820U III Cylindrical NC Grinder For Sale

Equipped With:

- Okamoto MDI NC Control
- Mist Collector
- Static Dresser
- Transformer

Machine Specifications

Machine Specifications:

Year

2018

CNC Control

yes

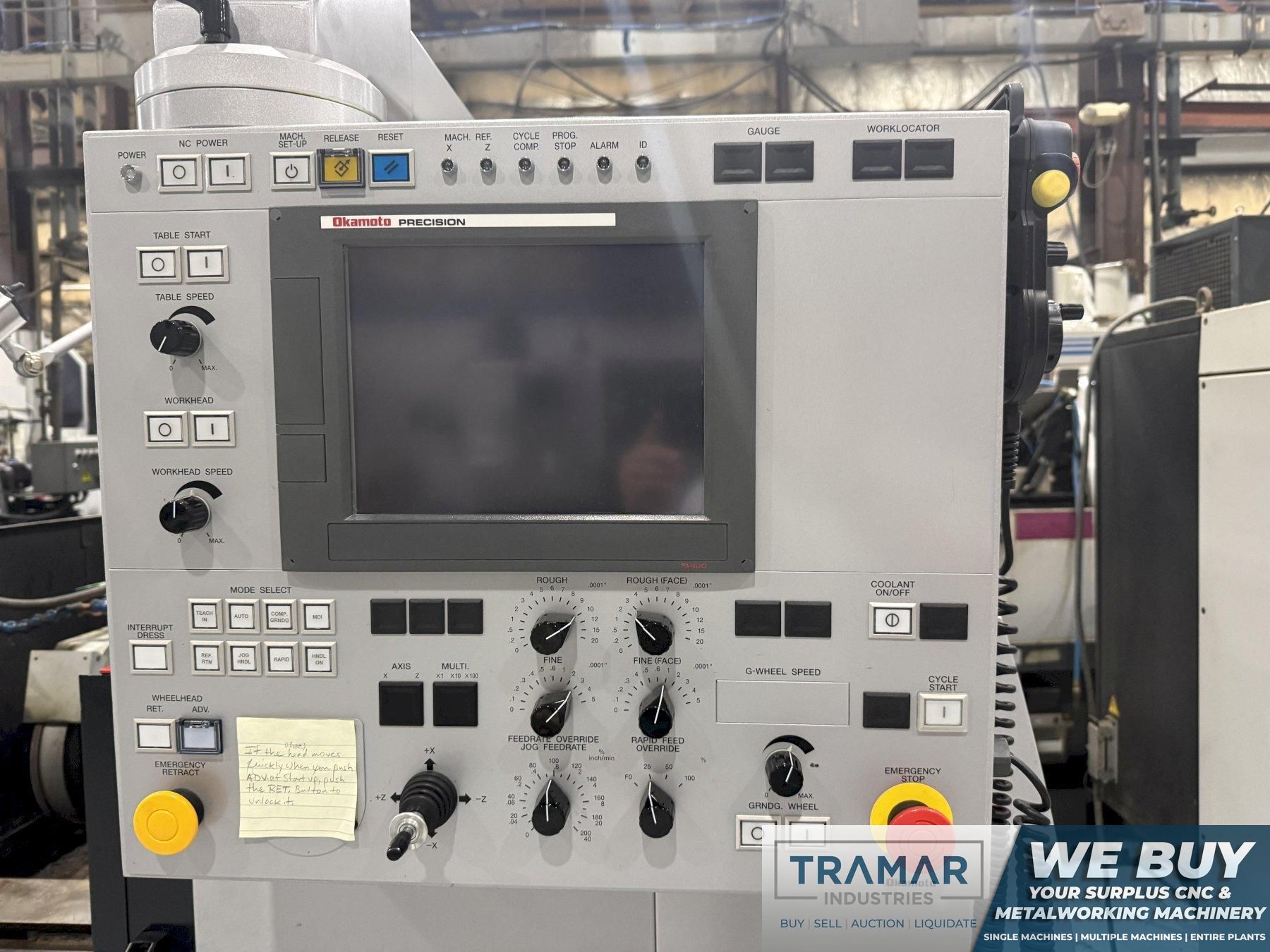

Control Type

Okamoto MDI

Swing

8.66"

Center Distance

20"

Max Weight Between Centers

110 pounds

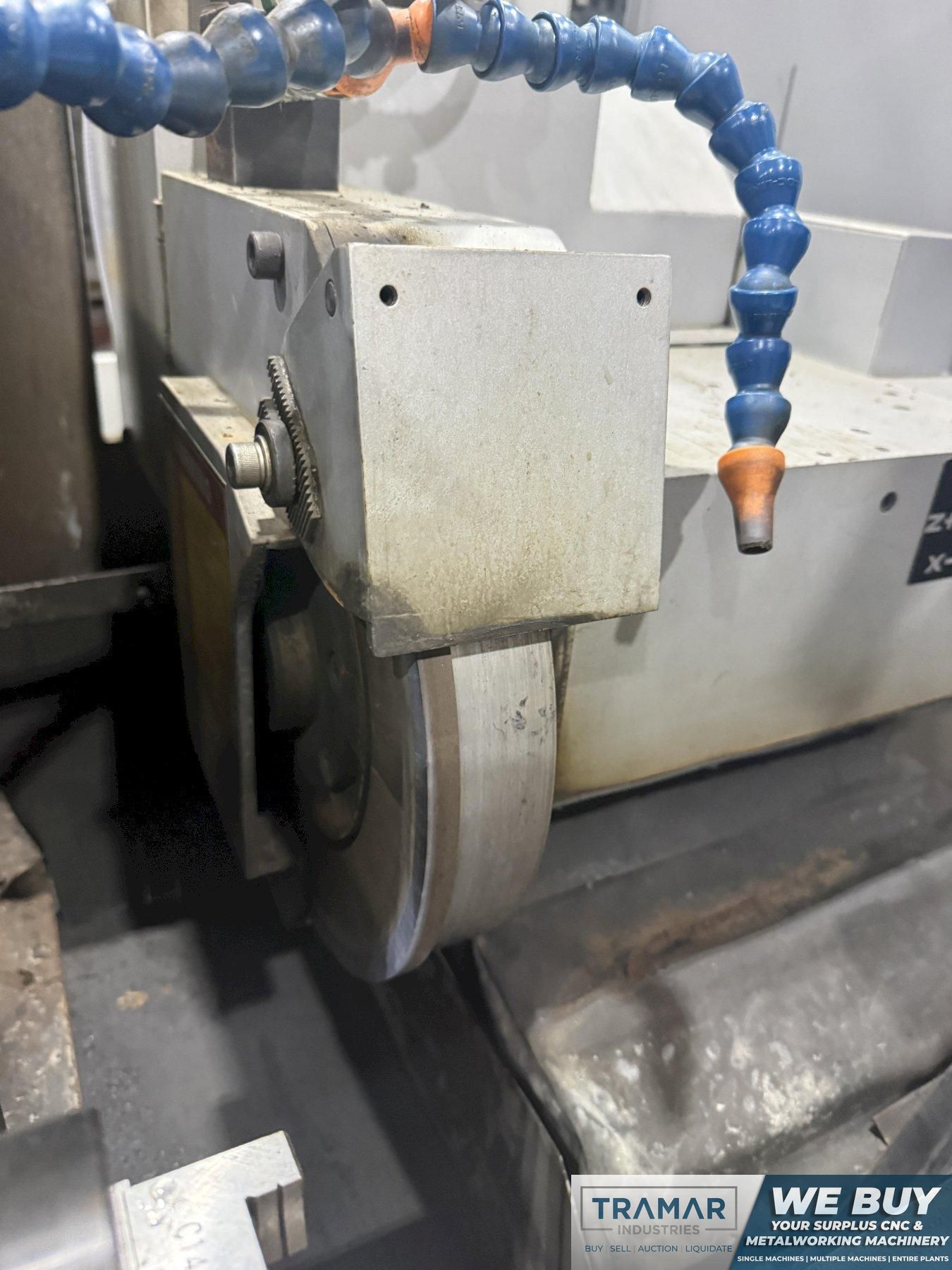

Grinding Wheel Dimensions

12" x 1" x 5"

Grinding Wheel Speed RPM

1,880 rpm

Grinding Wheel Spindle Motor

5 hp

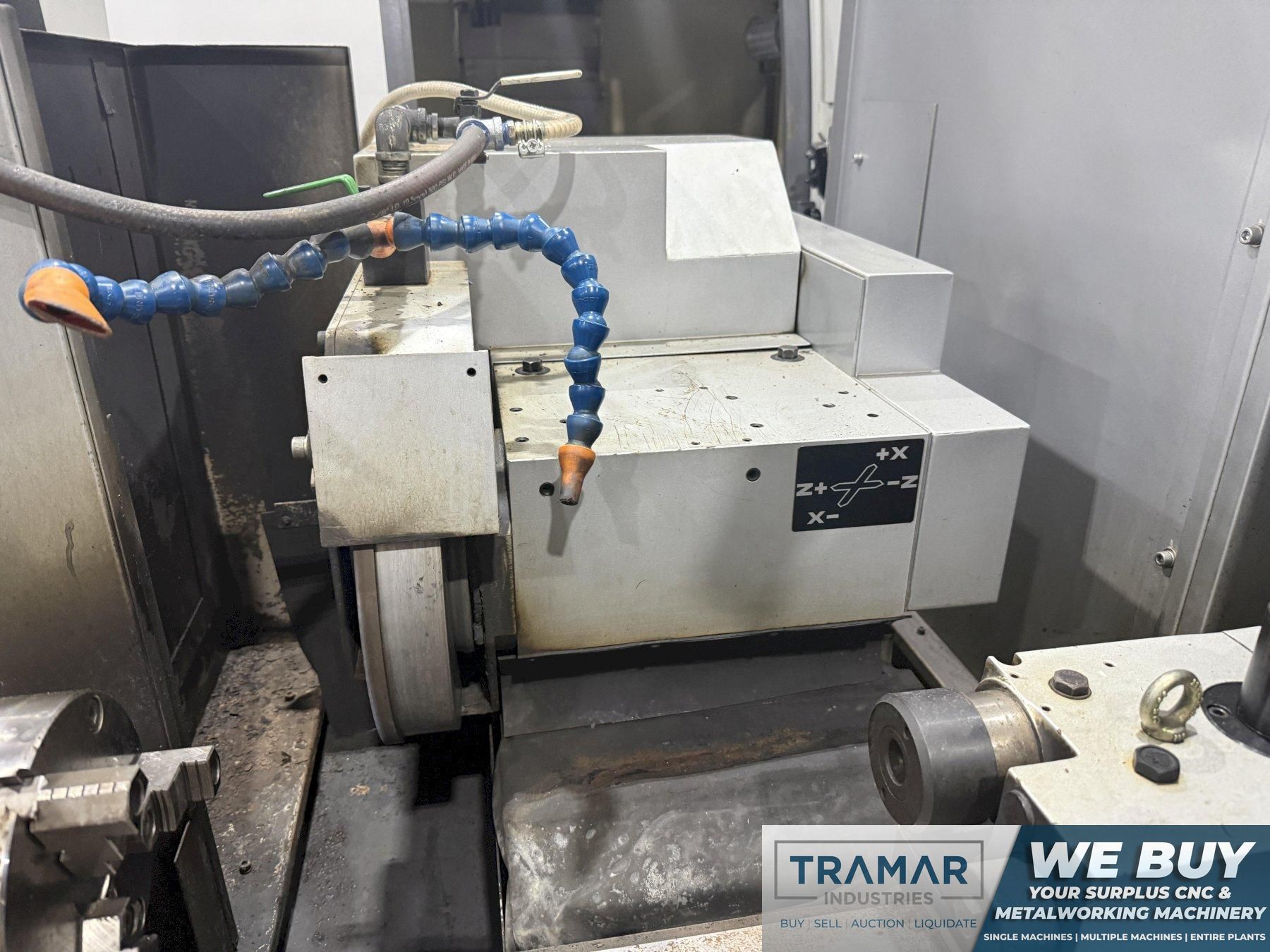

Wheelhead (Angle / Straight / Universal)

Universal

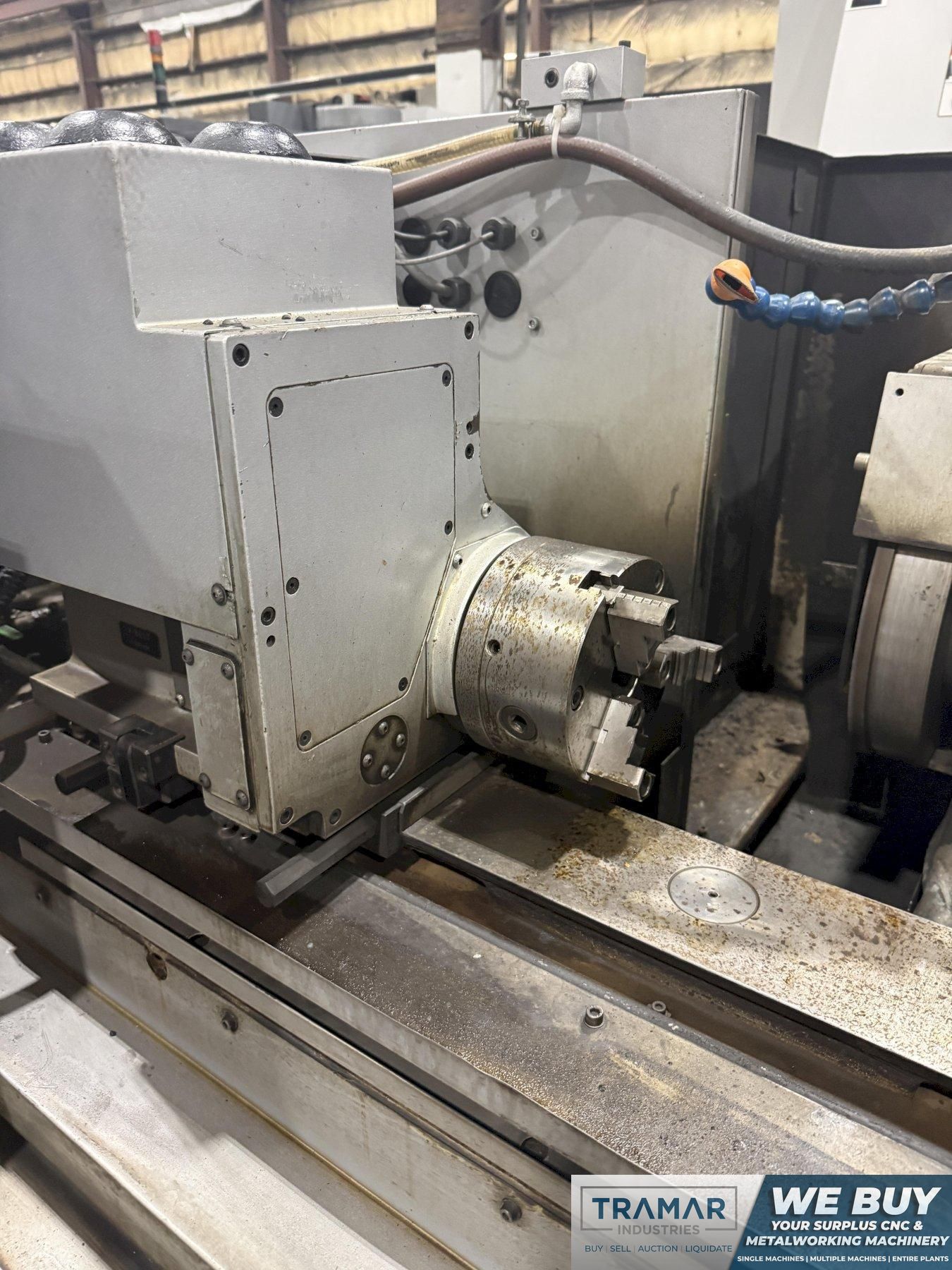

Workhead Taper

MT No. 3

Workhead Speed

10-500 rpm

Workhead Motor

1.6 horsepower

Workhead Swivel Angle

+30° to -90°

X-Axis Travel

8.5"

Z-Axis Travel

30"

Internal Grinding Attachment

no

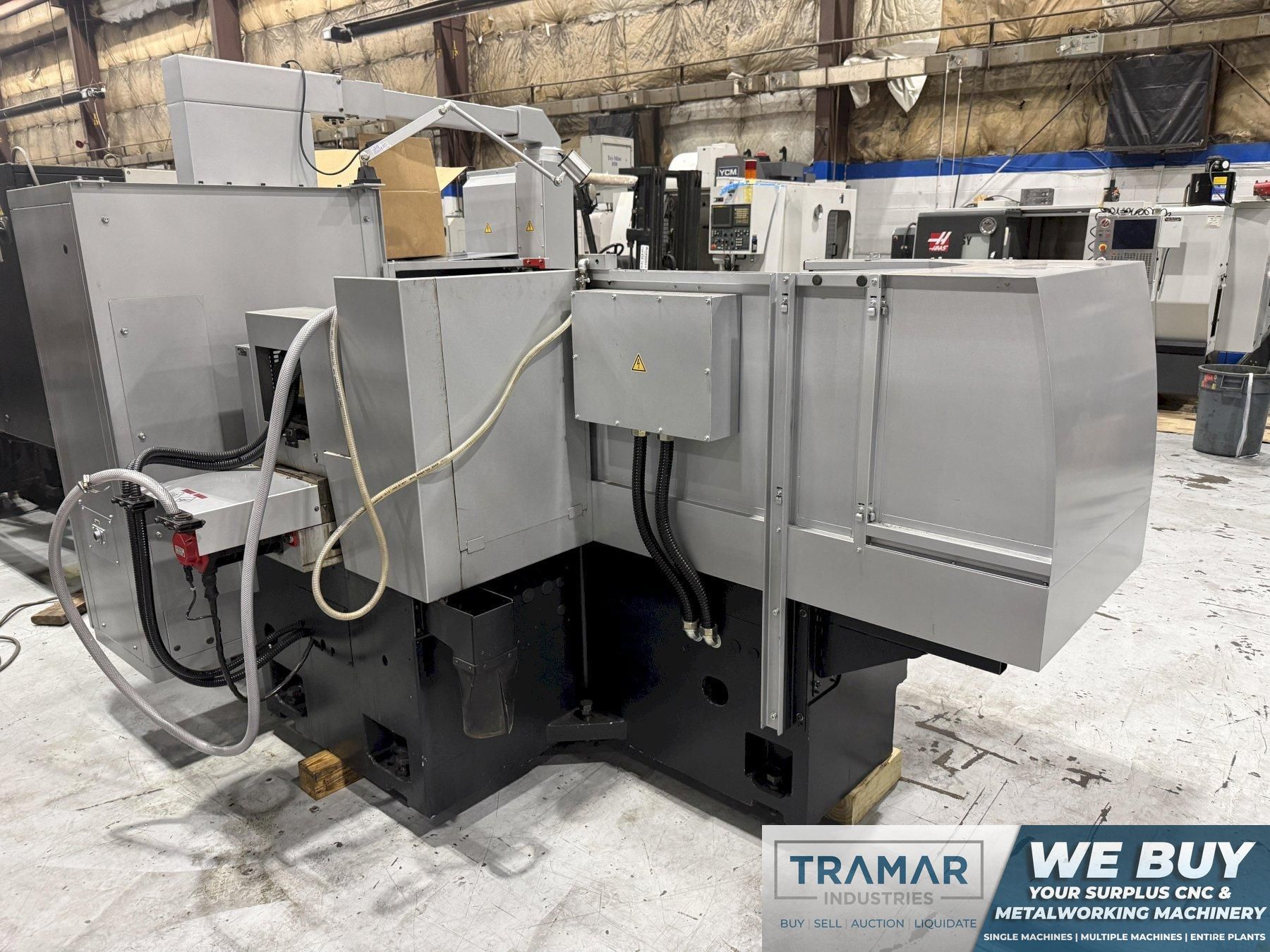

Machine Dimensions

115" x 79" x 77"

Machine Weight

7,500 pounds

Equipped With:

- Okamoto MDI NC Control
- Mist Collector
- Static Dresser
- Transformer

The Okamoto OGM 820U III is an exclusive part of our Grinders, Cylindrical, CNC inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
