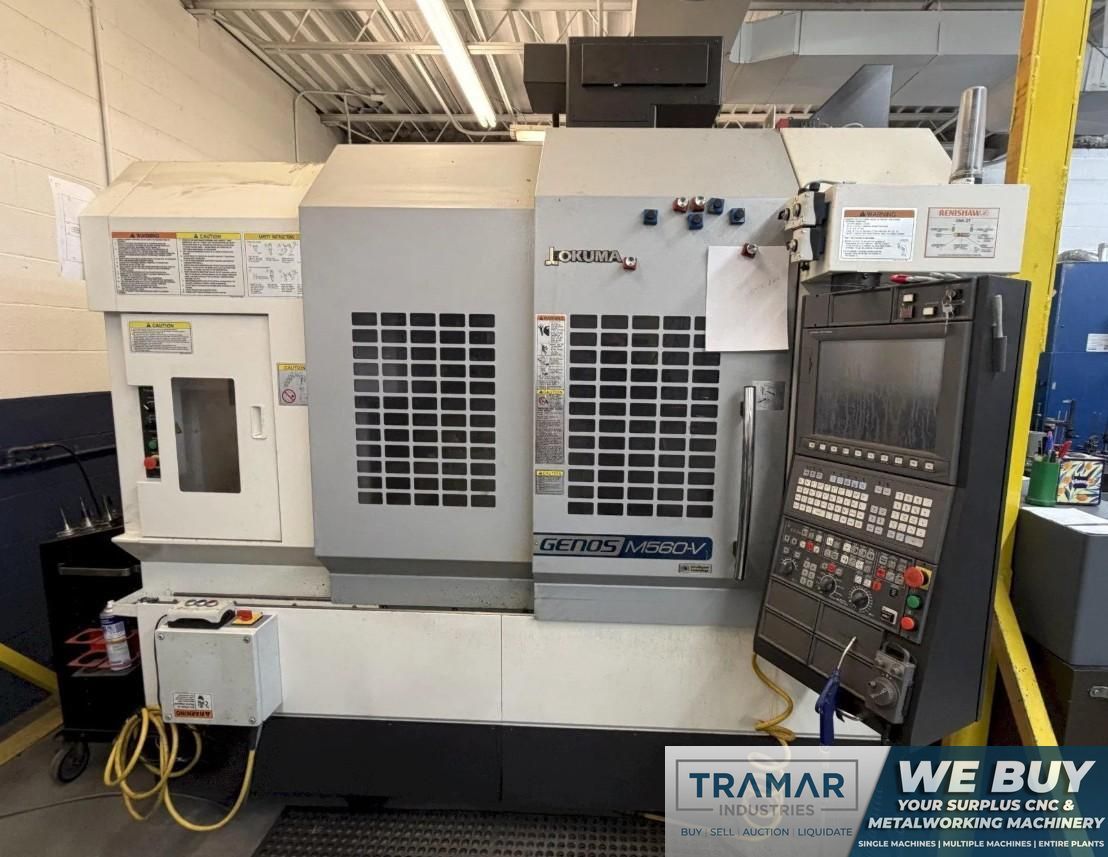

Okuma Genos M560-V - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: Genos M560-V
Year: 2017
Stock #: 15380 Sold
Highlights:
OSP-P300M CNC Control
Chip Conveyor/Coolant Tank
Blum Laser & Blum TC-50 Tool Probe
WENMAGNETICS MAGNETIC MILL CHUCK & CONTROL
MP Coolant & Filtration System

2017 Okuma Genos M560-V Used CNC Vertical Machining Center For Sale
Machine Specifications
Year
2017
CNC Control
yes
Control Type
OSP-P300M
# Axis
3
Table Size
51.2" x 22.1"
Table Capacity
1,984 pounds
X-Axis Travel
41.34"
Y-Axis Travel
22.05"
Z-Axis Travel
18.11"
Rapid Traverse Rate (X/Y/Z)
1,574/1,574/1,260 ipm
Spindle Taper
NT-40
Spindle Speed
15,000 rpm
Main Motor
25 hp
Tool Changer Capacity
32
Machine Dimensions
125" x 101" x 108"
Machine Weight
18,700 pounds

Equipped With:

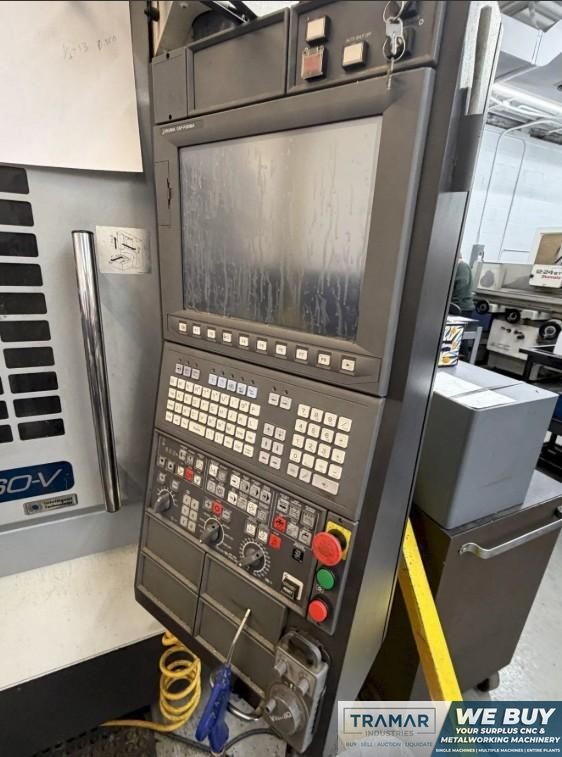

- OSP-P300M CNC Control

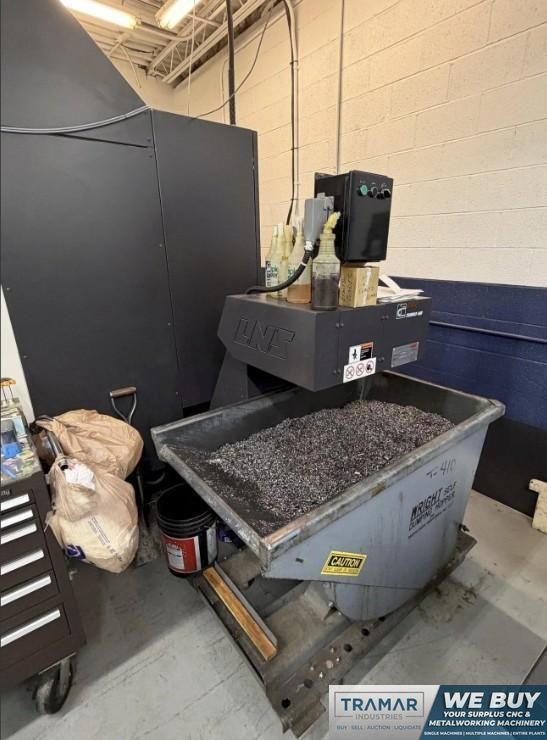

- Chip Conveyor
- Coolant Tank
- Prepped for Coolant Thru Spindle??
- Blum Laser
- Blum TC-50 Tool Probe
- Daiken Spindle Chiller
- Super NURBS
- NT40 Big Plus Tooling

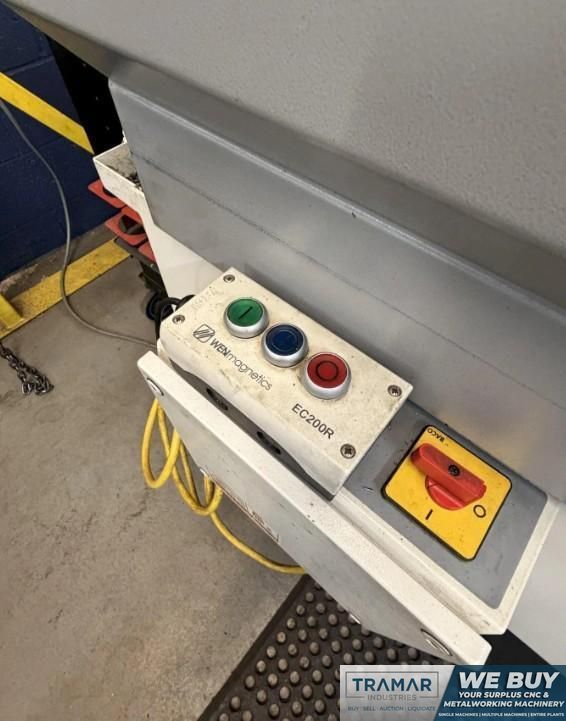

- WENMAGNETICS MAGNETIC MILL CHUCK & CONTROL

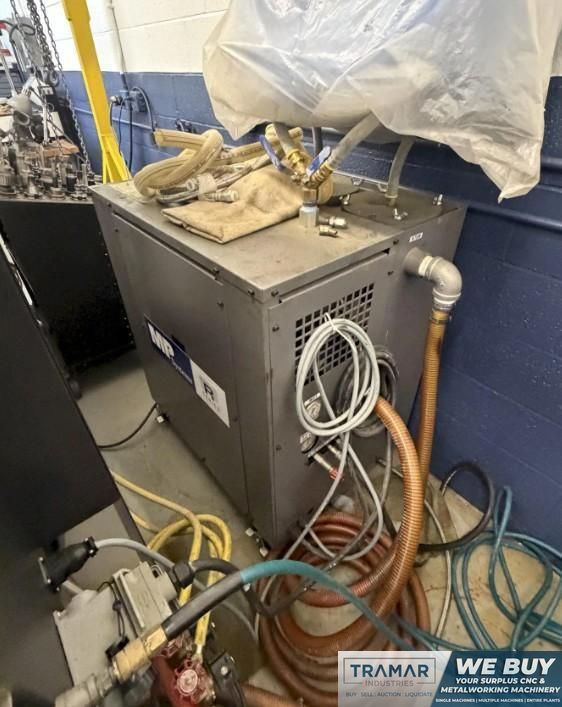

- MP Coolant & Filtration System

The Okuma Genos M560-V is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
