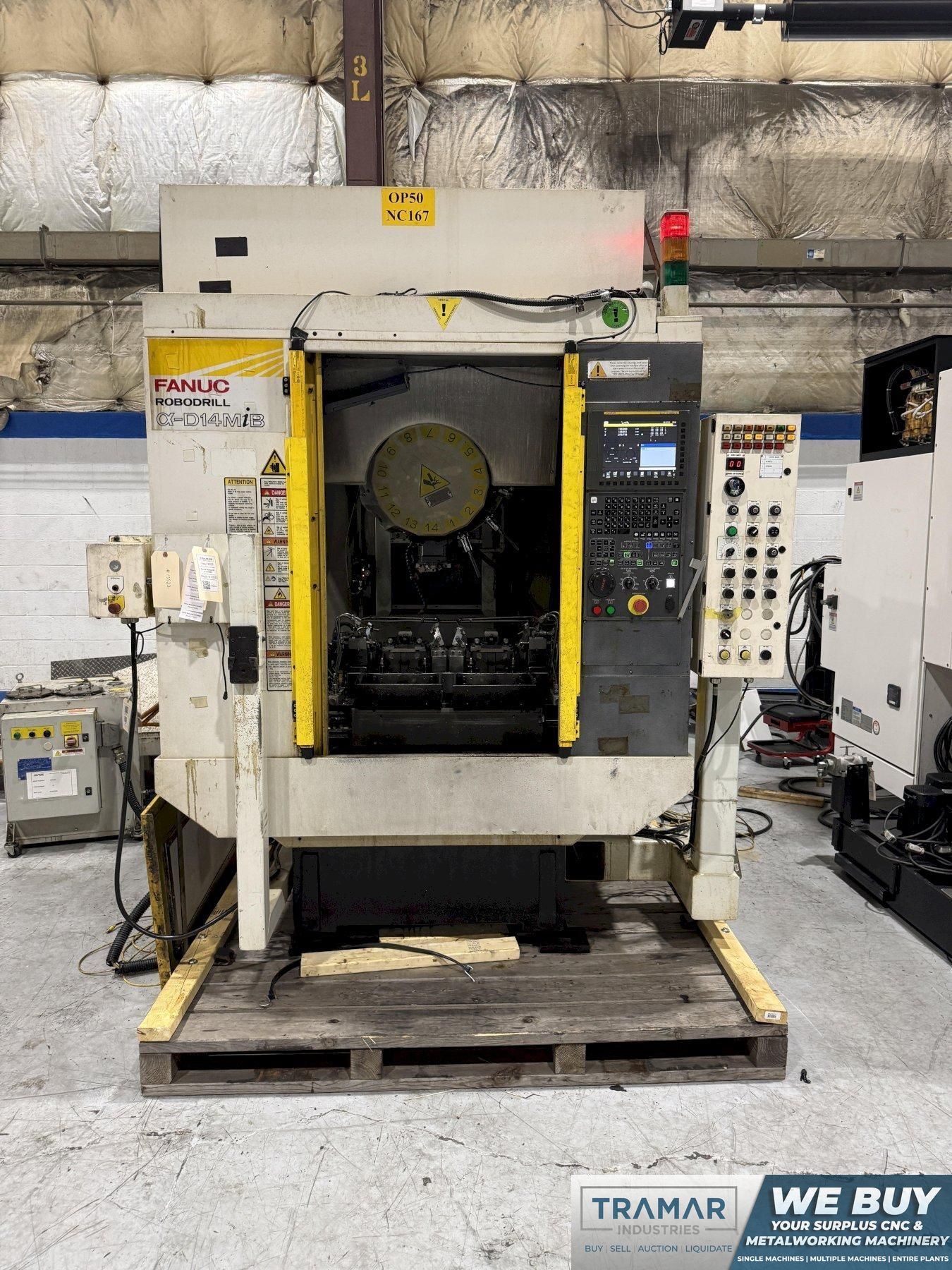

Fanuc Robodrill a-D14MiB - Vertical Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: a-D14MiB
Year: 2017
Stock #: 15522
Highlights:

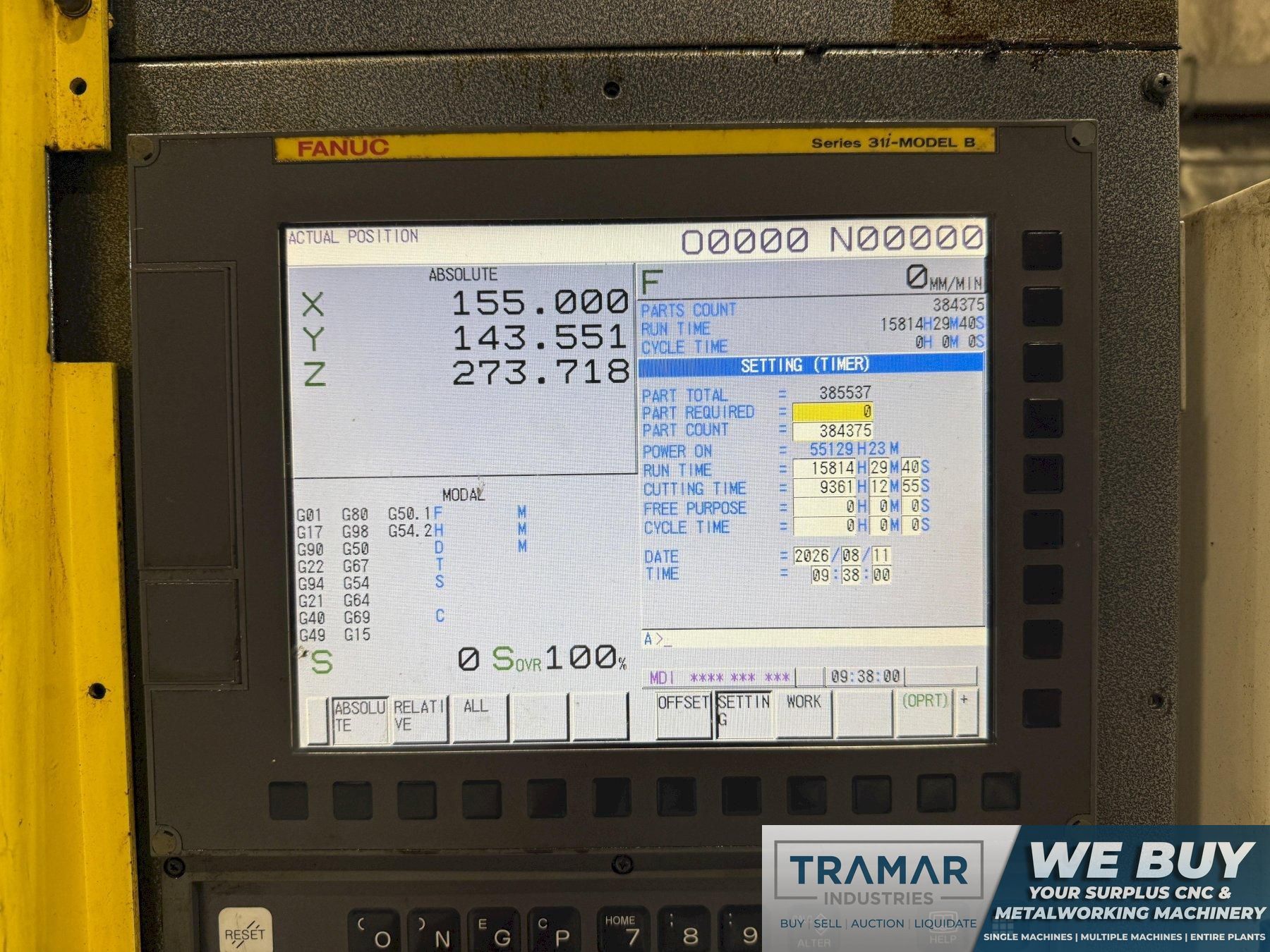

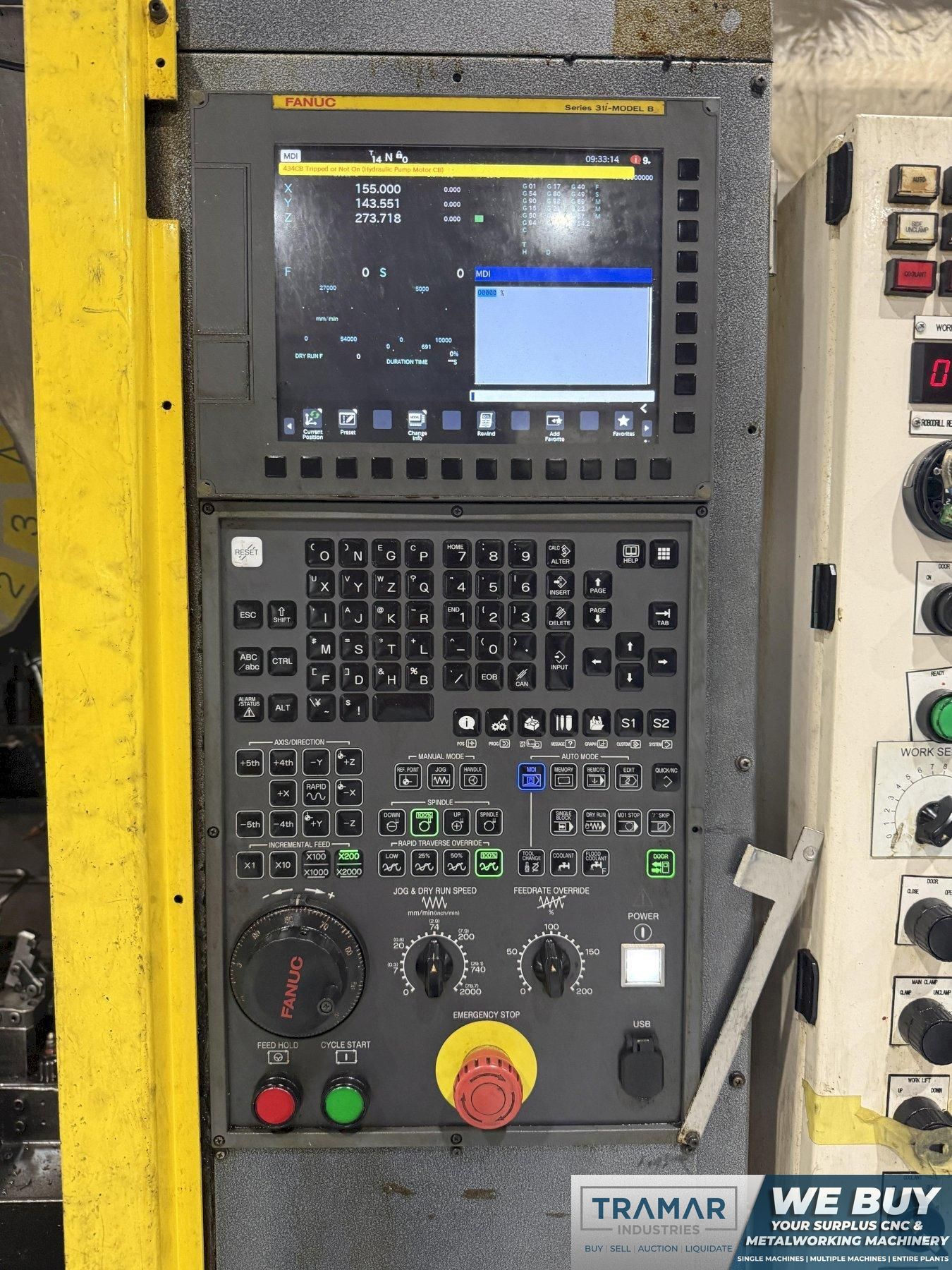

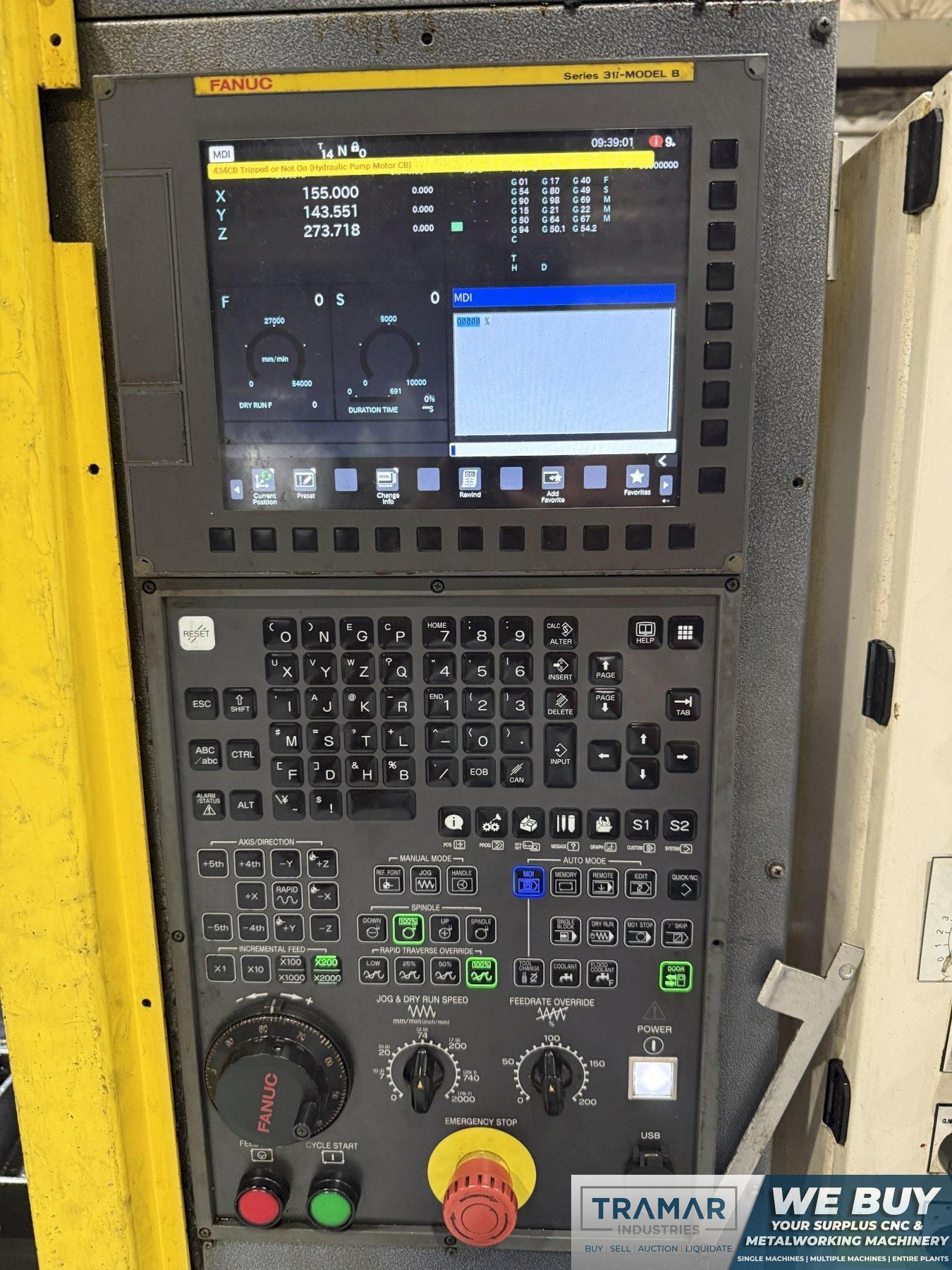

Fanuc Series 31i-Model B CNC Control
Chip Conveyor
Coolant Tank & Pump

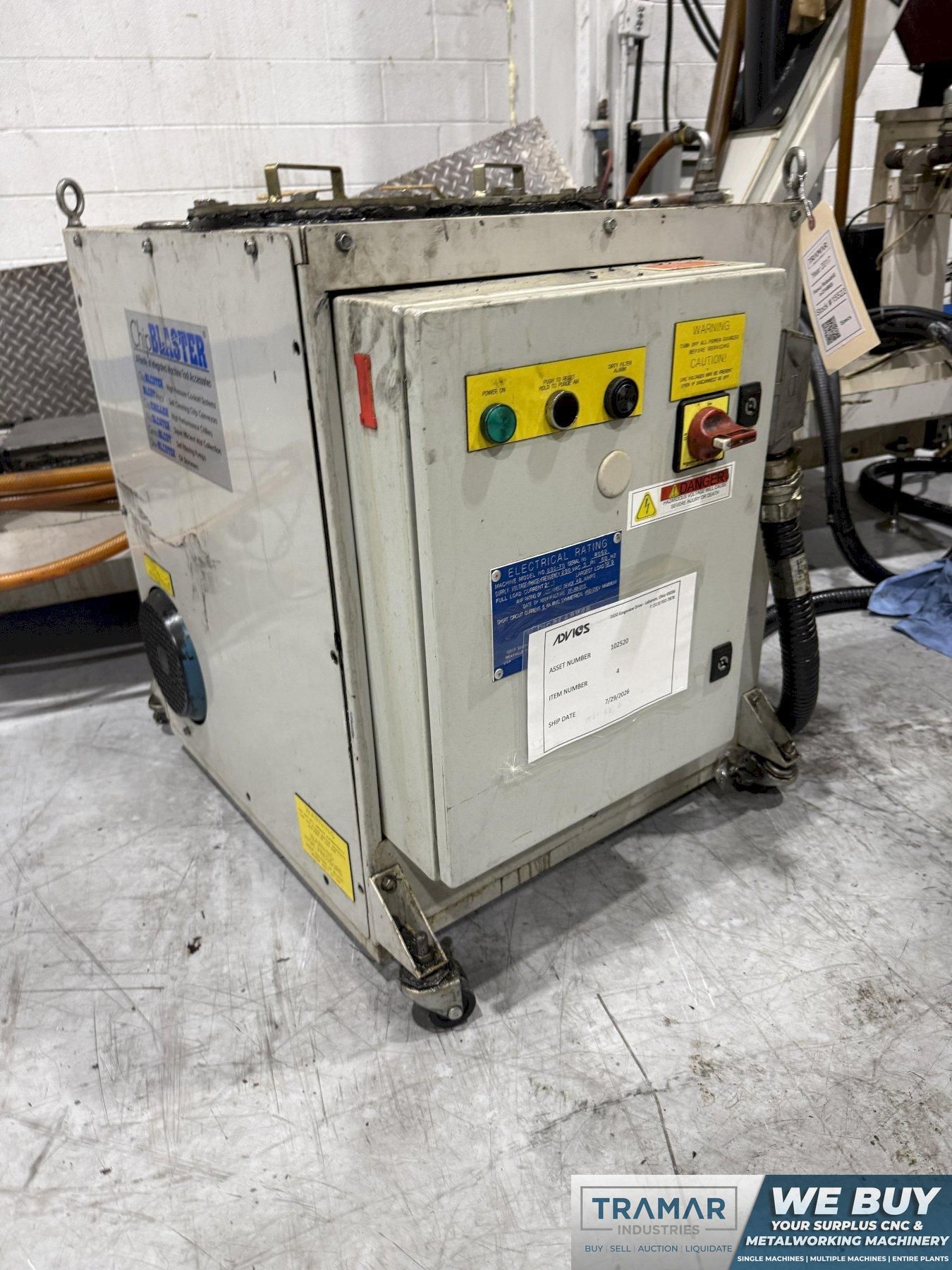

Chip Blaster

2017 Fanuc Robodrill a-D14MiB Used CNC Vertical Machining Center For Sale
Machine Specifications
Year
2017
CNC Control
yes
Control Type
Fanuc Series 31i-Model B
# Axis
3

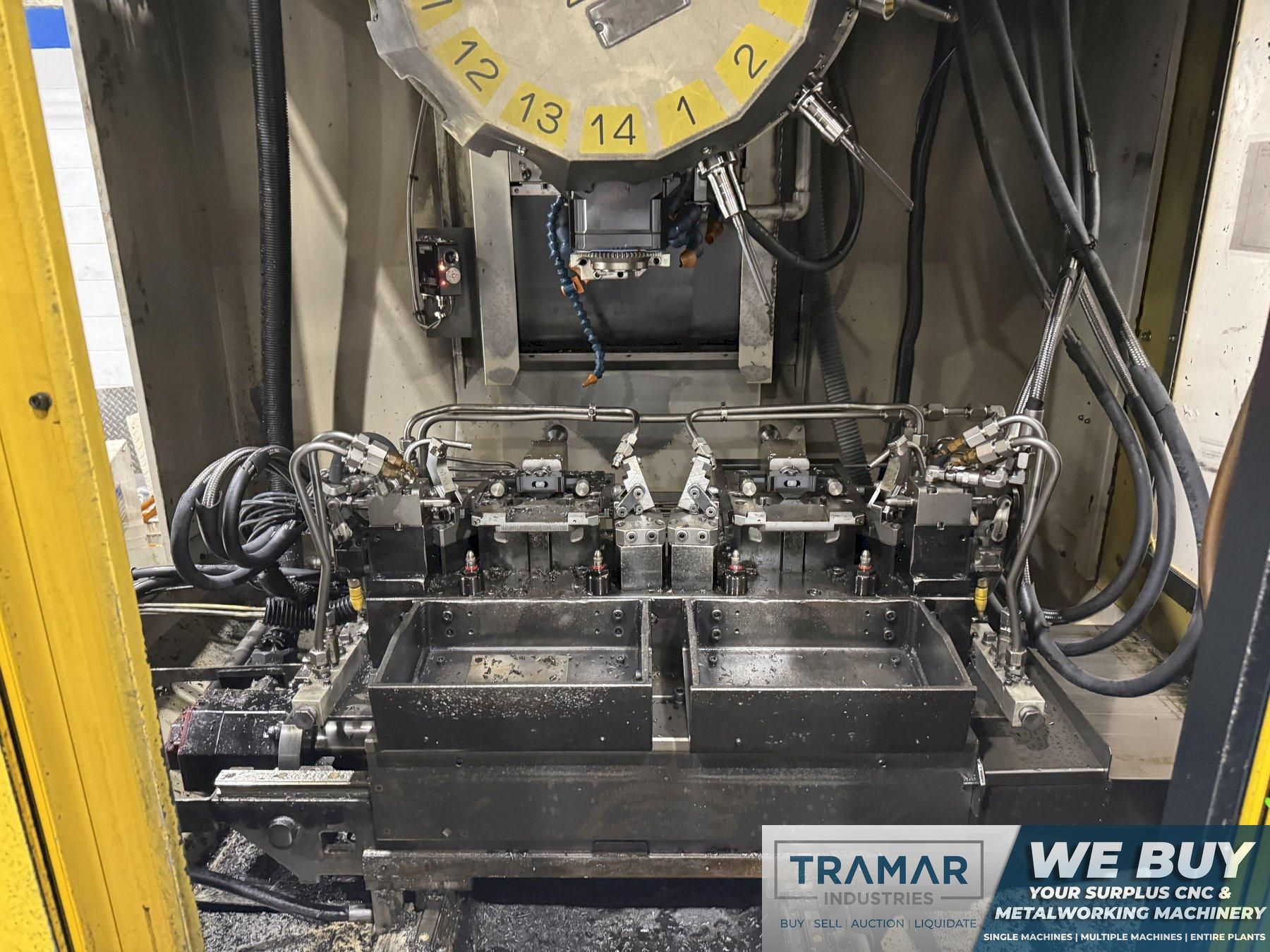

Table Size
25.6" x 15.74"
Table Capacity
660 pounds
X-Axis Travel
19.68"
Y-Axis Travel
15.78"
Z-Axis Travel
12.99"
Rapid Traverse Rate (X/Y/Z)
2,126 ipm
Spindle Taper
BT-30
Spindle Speed
10,000 rpm
Main Motor
14.75 hp

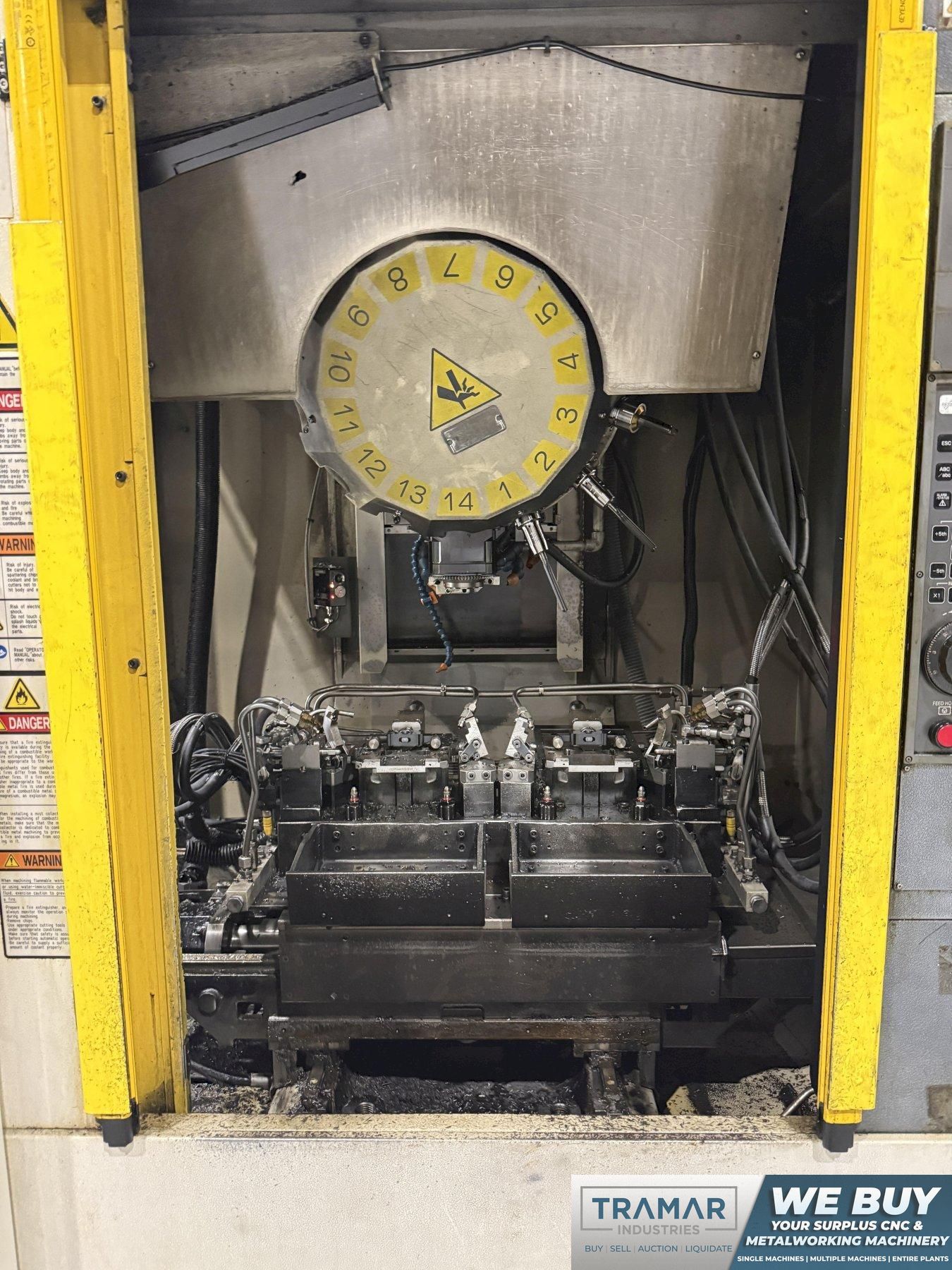

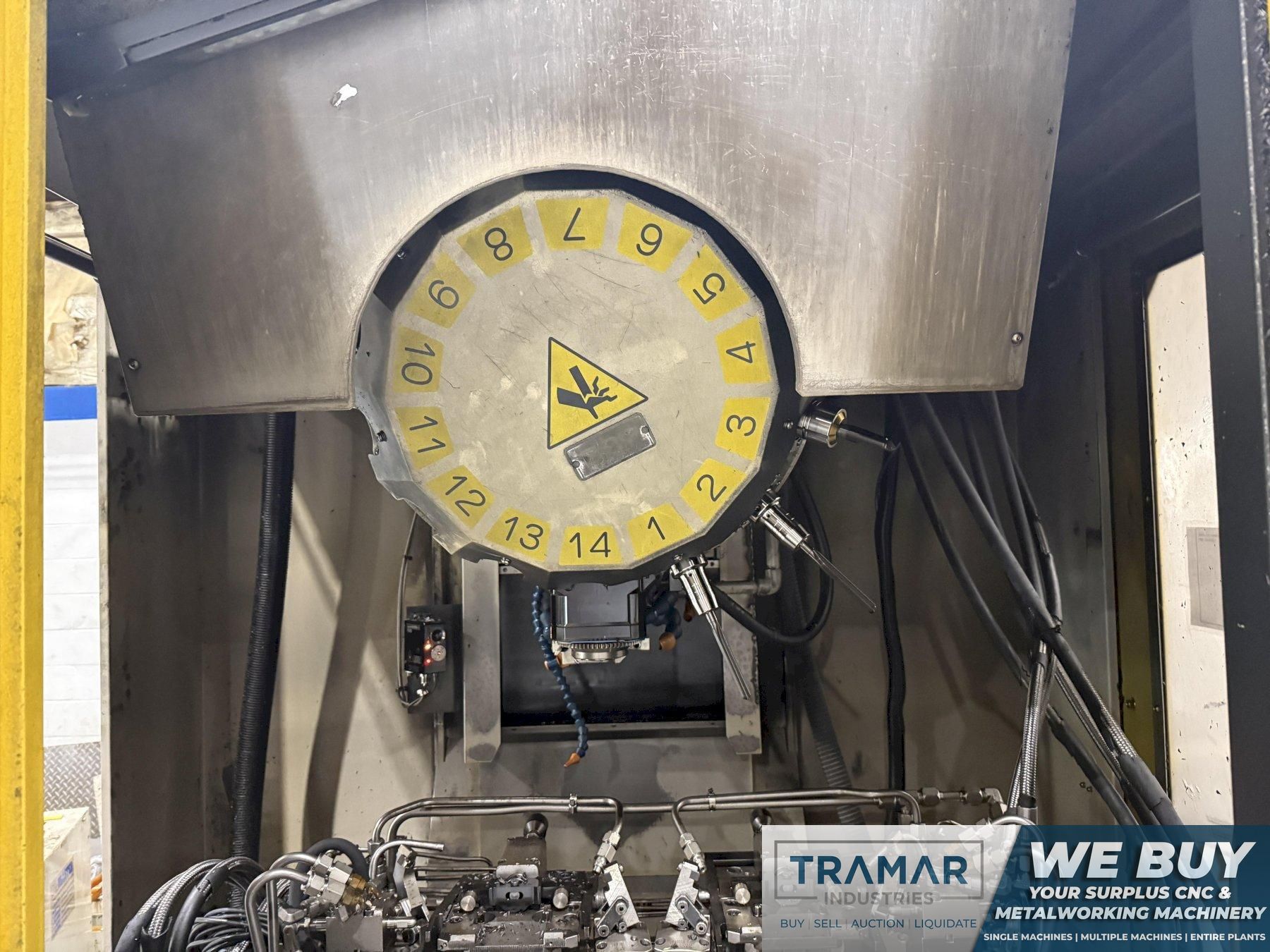

Tool Changer Capacity
14
Machine Weight
4,800 pounds

Equipped With:

- Fanuc Series 31i-Model B CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Chip Blaster

The Fanuc Robodrill a-D14MiB is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
