Grinding Range (Standard Work Rest) |
Ø 0.04″ – 2″ |
Grinding Range (Special Work Rest) |
Ø 1.5″ – 4″ |

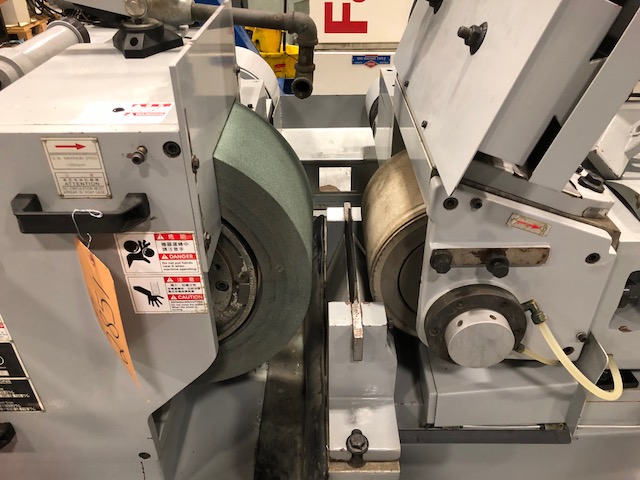

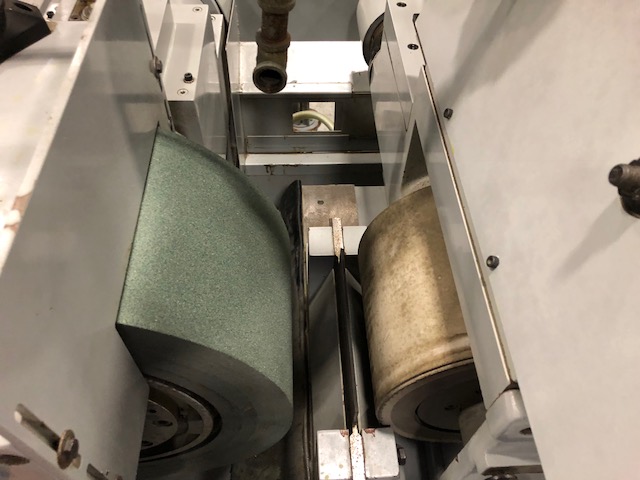

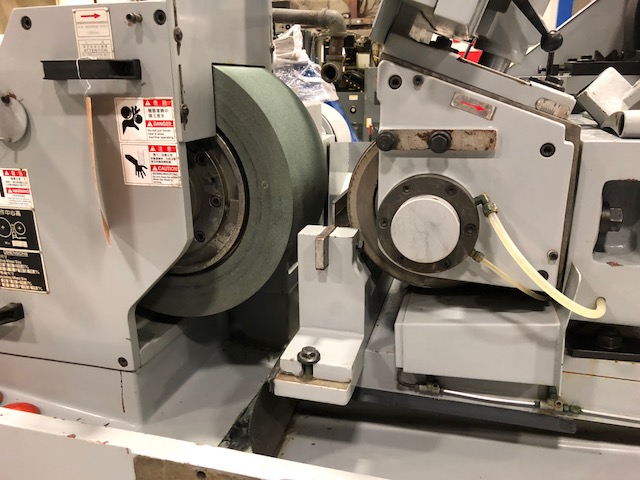

Grinding Wheel Size |
18″ x 8″ x 9″ |
Regulating Wheel Size |
10″ x 8″ x 4.38 |

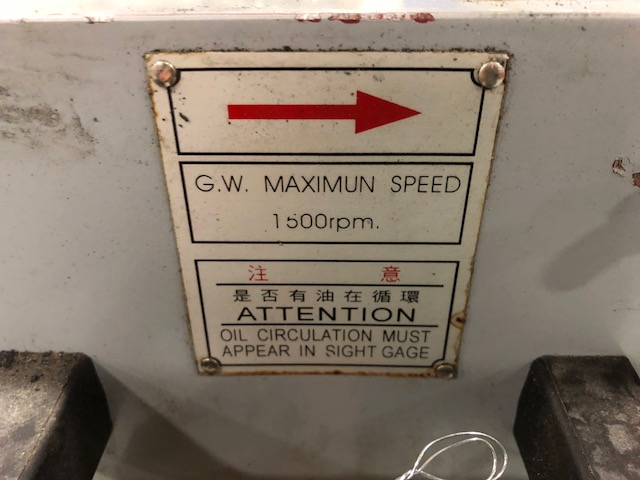

Grinding Wheel Speed |
1200 RPM |
Regulating Wheel Speed |
10 Steps 13-316 RPM, Infinitely Variable 10-250 RPM (S Model) |

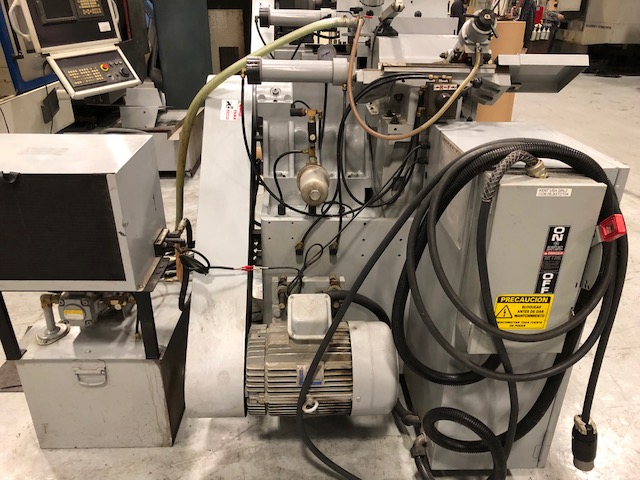

Grinding Wheel Motor |
15 HP |
Regulating Wheel Motor |
2 HP (1200 RPM) |

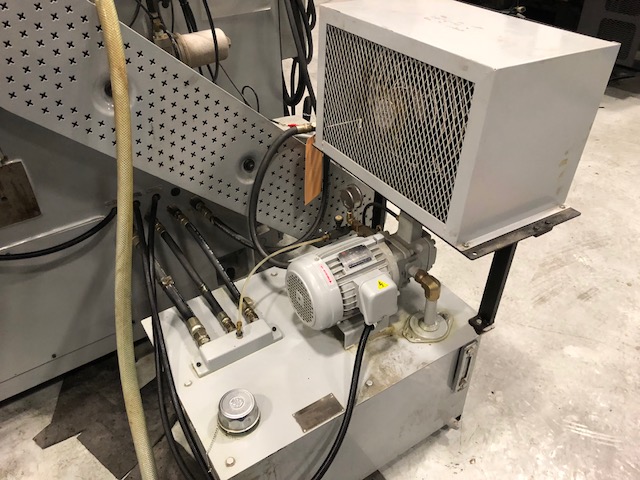

Hydraulic Pump Motor |
1 HP (1800 RPM) |
Coolant Pump Motor |
1/4 (3600 RPM) |
Upper Slide Feed Graduation |
0.0001″ (0.200″ Per Rev) |
Lower Slide Feed Graduation |
0.0002″ (0.400″ Per Rev) |
Lower Slide Micro Feed |
0.000050″ (Grad), 0.010″ (Rev) |
Dressing Device Graduation |
0.0005″ (Grad), 0.050″ (Rev) |
Regulating Wheel Tile Angle |
+5 ~ -3° |
Regulating Wheel Swivel Angle |
± 5° |
Net Weight |
6160 LBS |
Gross Weight |
6820 LBS |
