Hyundai WIA LV500R - Vertical Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: LV500R
Year: 2013
Stock #: 15226
Highlights:

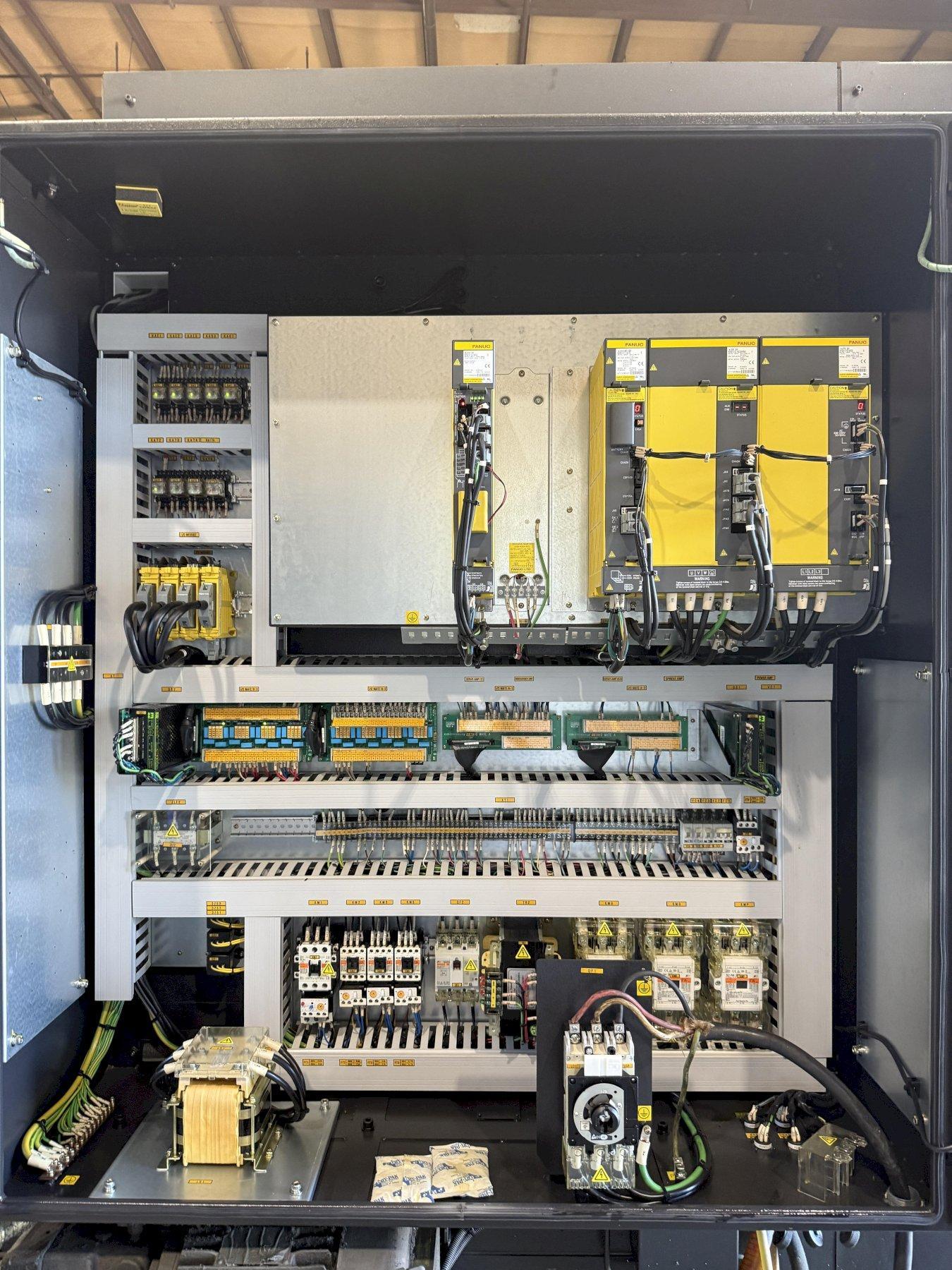

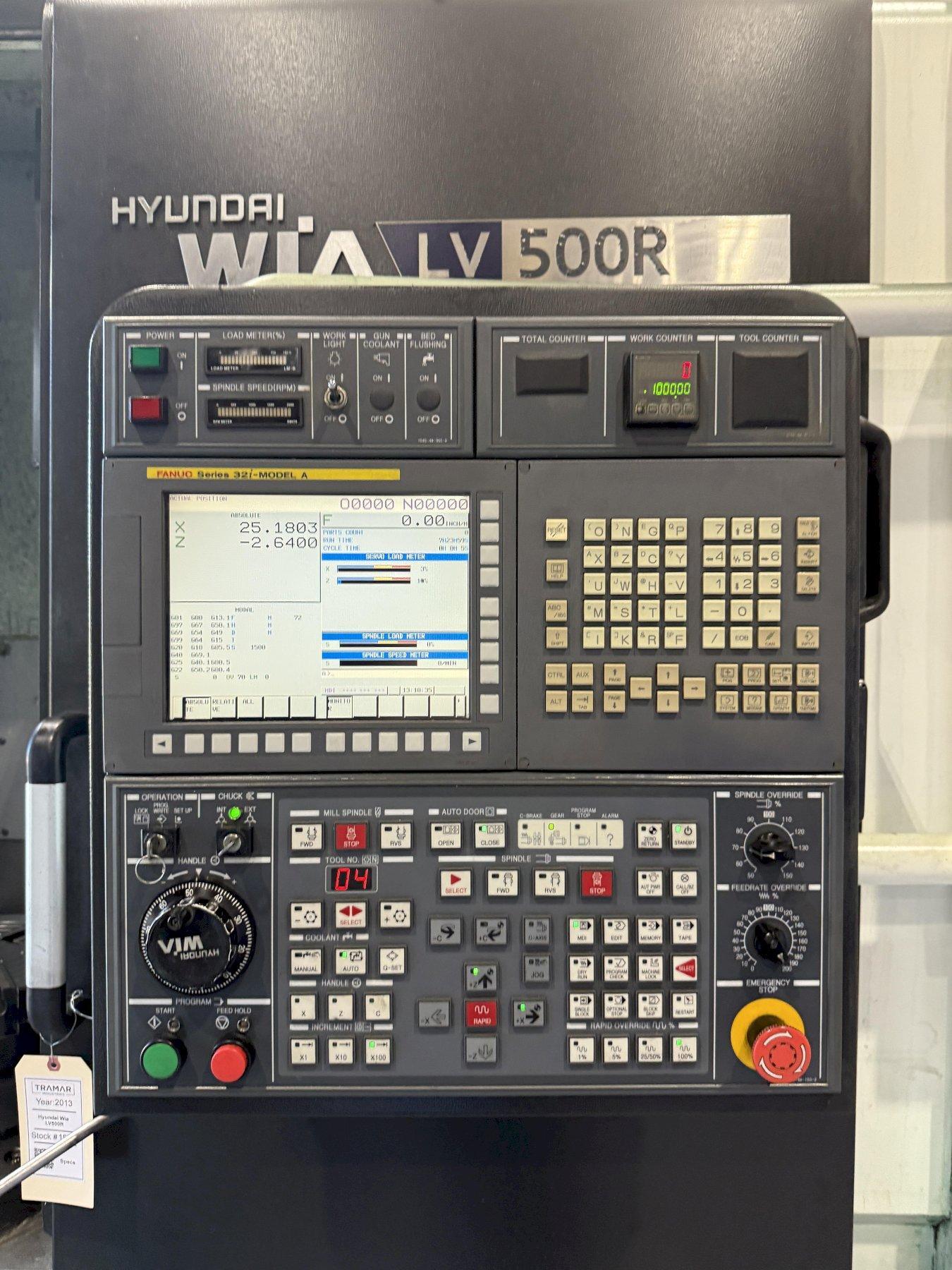

Fanuc 32i-Model A CNC Control
Chip Conveyor
Coolant Tank & Pump
2-Axis CNC Vertical Lathe

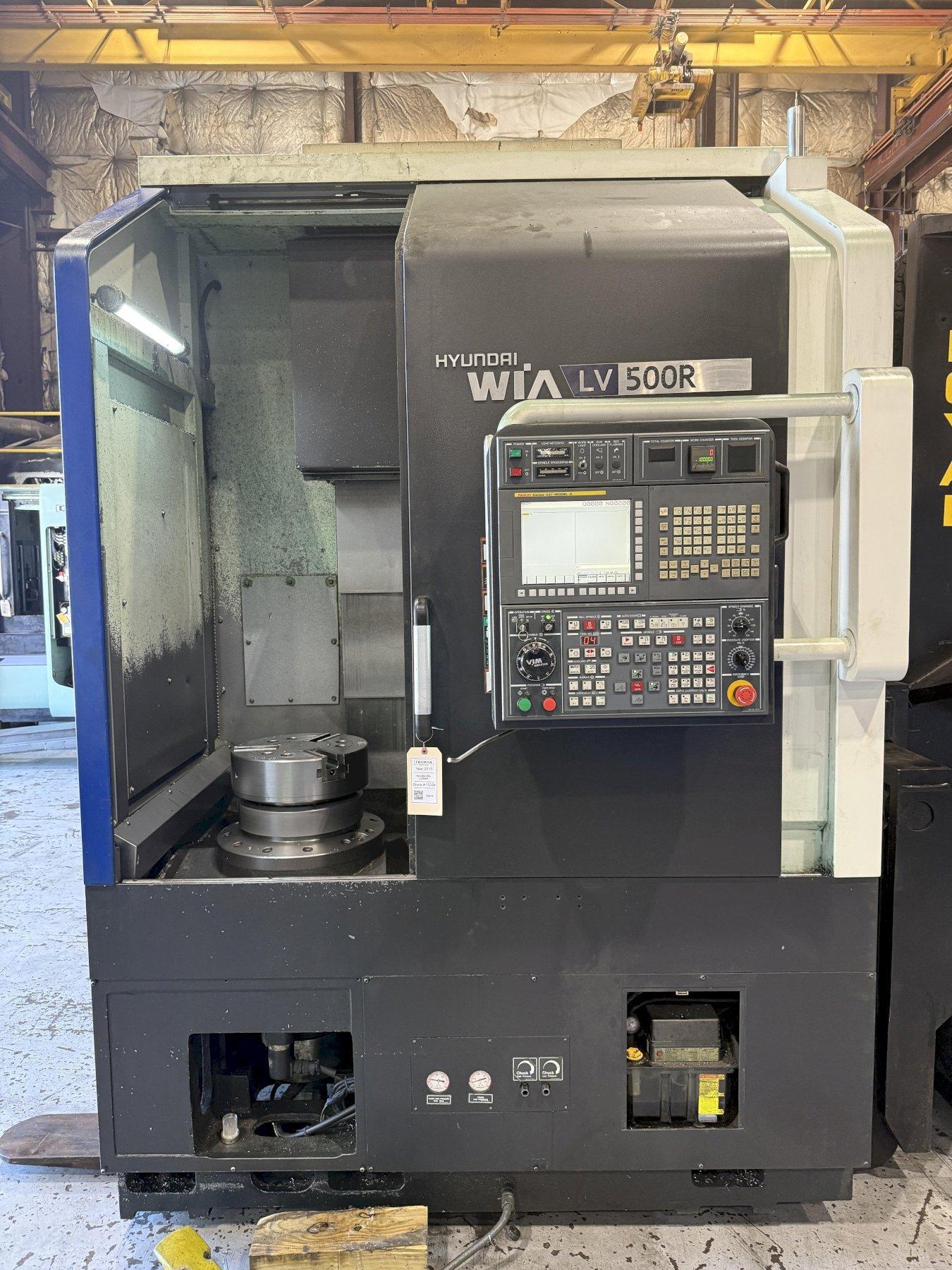

2013 Hyundai Wia LV500R CNC Vertical Lathe For Sale
Machine Videos
Machine Specifications
Year
2013
CNC Control
yes
Control Type
Fanuc 32i-Model A
Swing
29.9"
Turning Diameter
21.7"
Table Diameter
15"
Chuck Size
15"
X-Axis Travel
12.8"
Z-Axis Travel
24.6"
Spindle Nose
A2-11
Spindle Speed
2,000 rpm
Spindle Motor
35 horsepower
Live Tooling
no

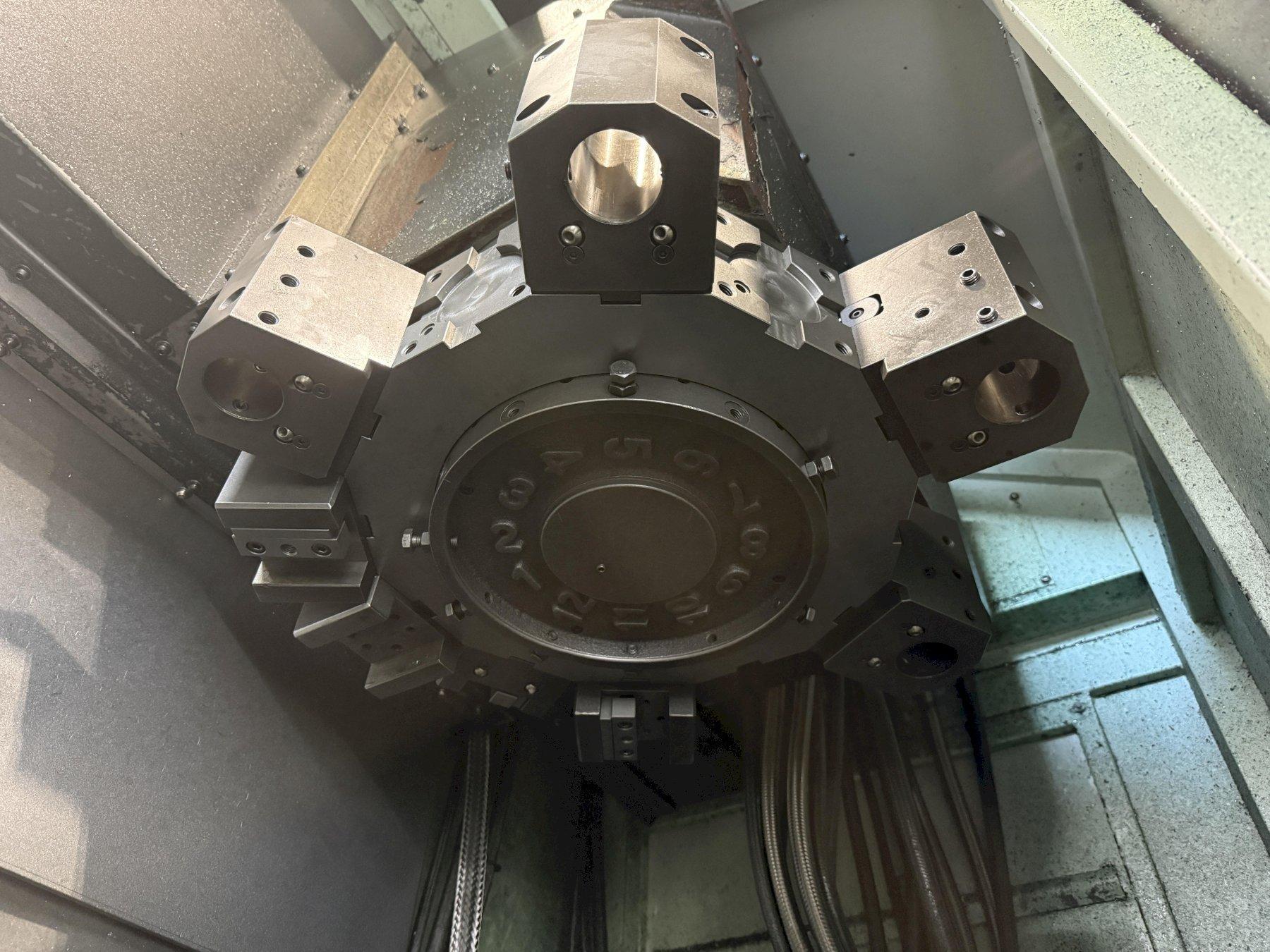

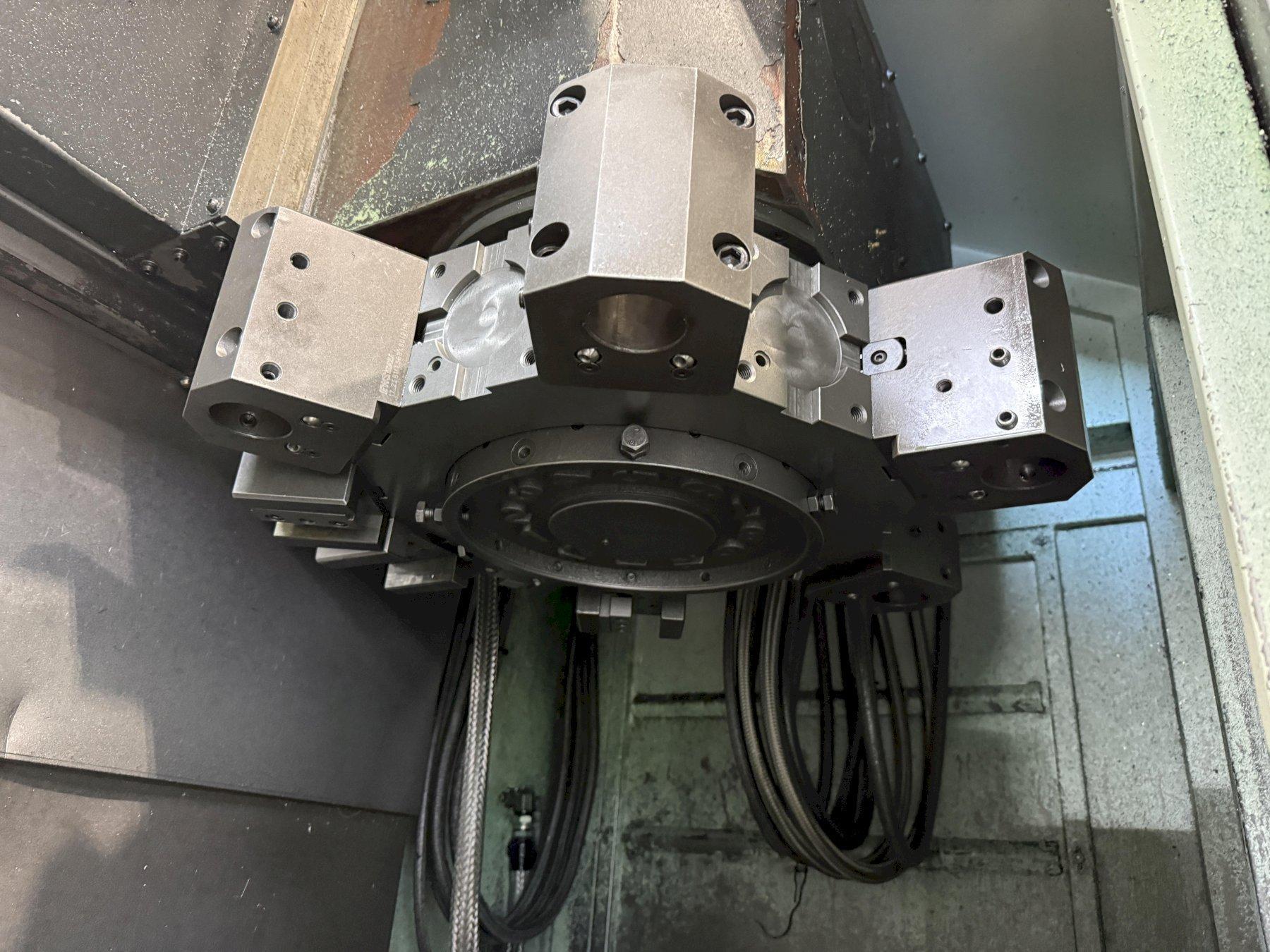

Turret Capacity
12
Machine Dimensions
112" x 73" x 115"
Machine Weight
22,100 pounds

Equipped With:

- Fanuc 32i-Model A CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Manual Guide i (Conversational Programming)
- Embedded Ethernet
- Rigid Tapping
- Graphic Function
- Custom Macro B
- Tool Geometry/Wear Offsets

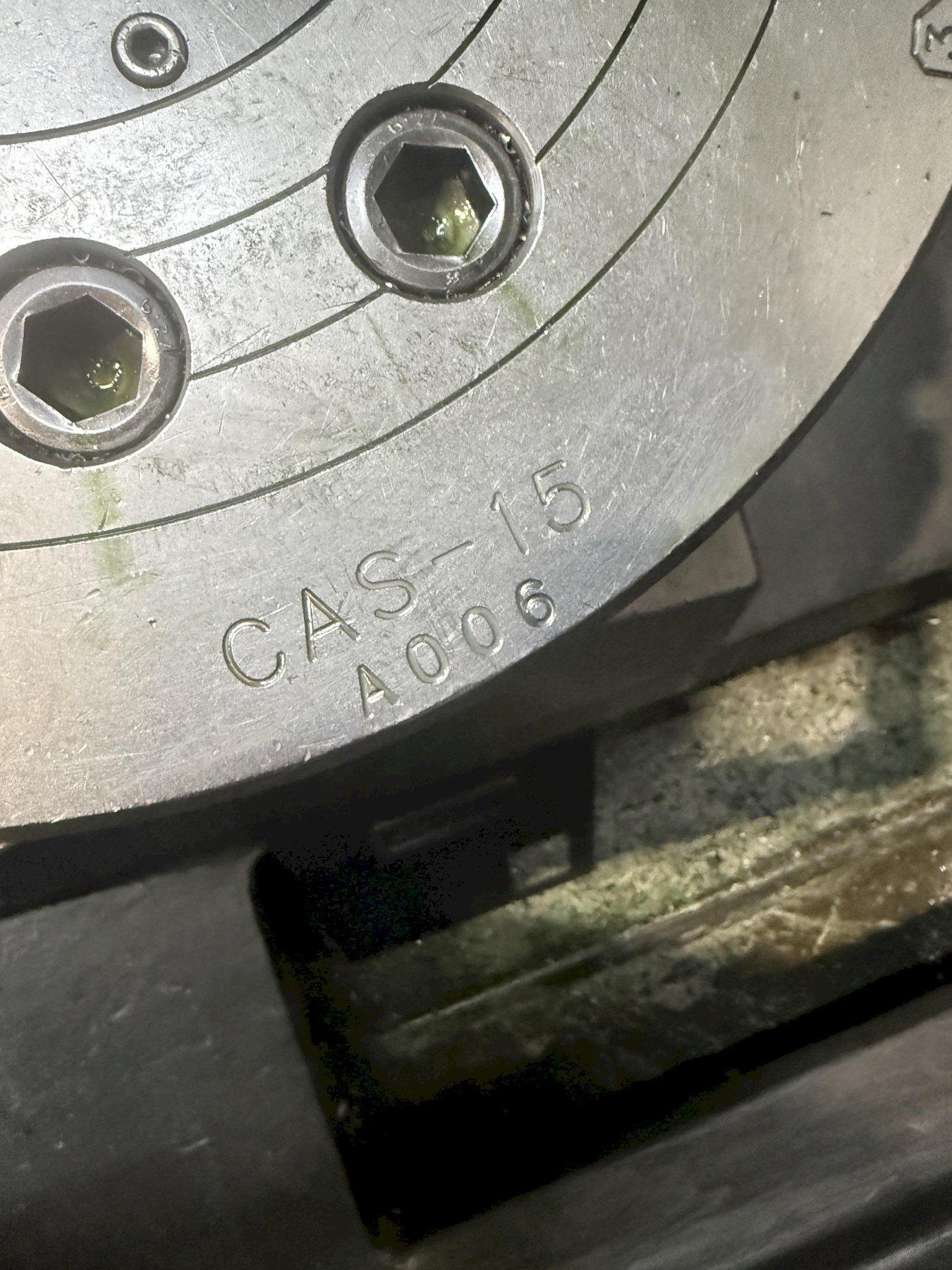

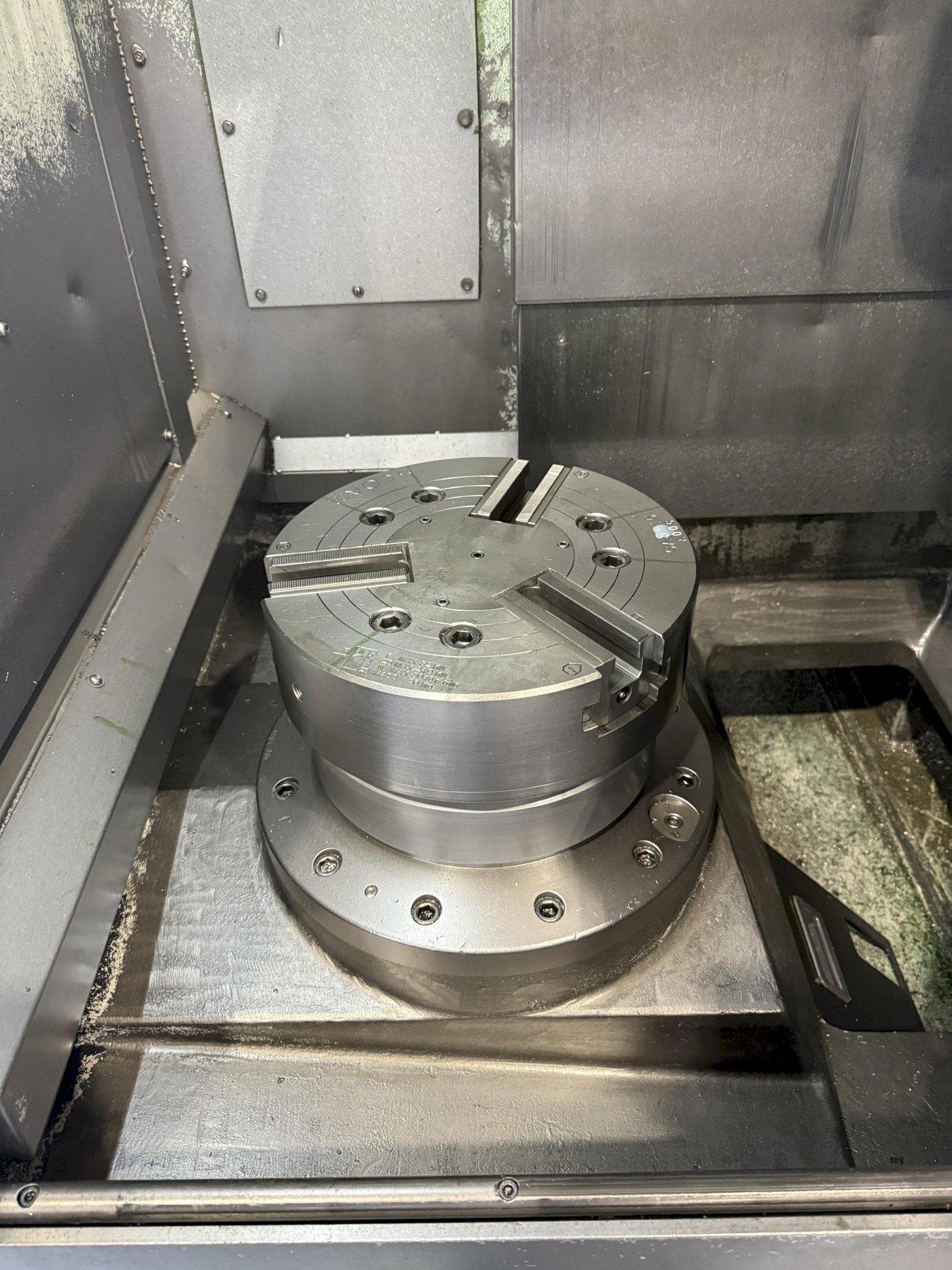

- 15" - 3-Jaw Hydraulic Chuck (Seoam CAS-15)

*** VIDEO CLICK HERE ***

The Hyundai WIA LV500R is an exclusive part of our Vertical Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
