Mazak Variaxis 730-5x II - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: Variaxis 730-5x II
Year: 2012
Stock #: 12901 Sold
Highlights:
Simultaneous 5 Axis Machining
Coolant Thru Spindle (Mazak Superflow V8-1000)
Twin Pallet (19.5" x 19.5") Shuttle System
CAT 50 | 10,000 RPM Spindle

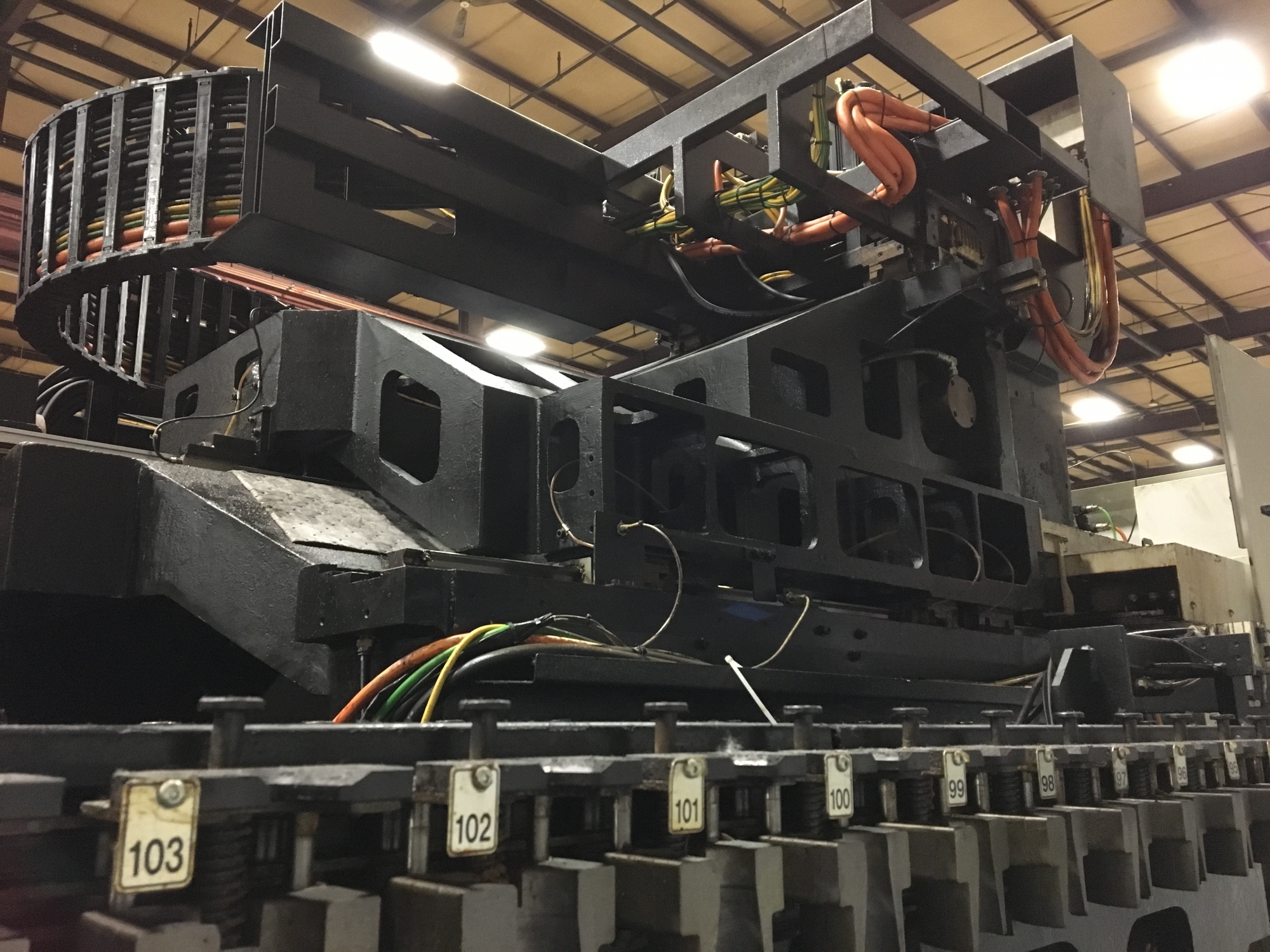

120 Station Tool Changer

2012 MAZAK Variaxis 730-5x II - Vertical Machining Center
Machine Specifications
Year
2012

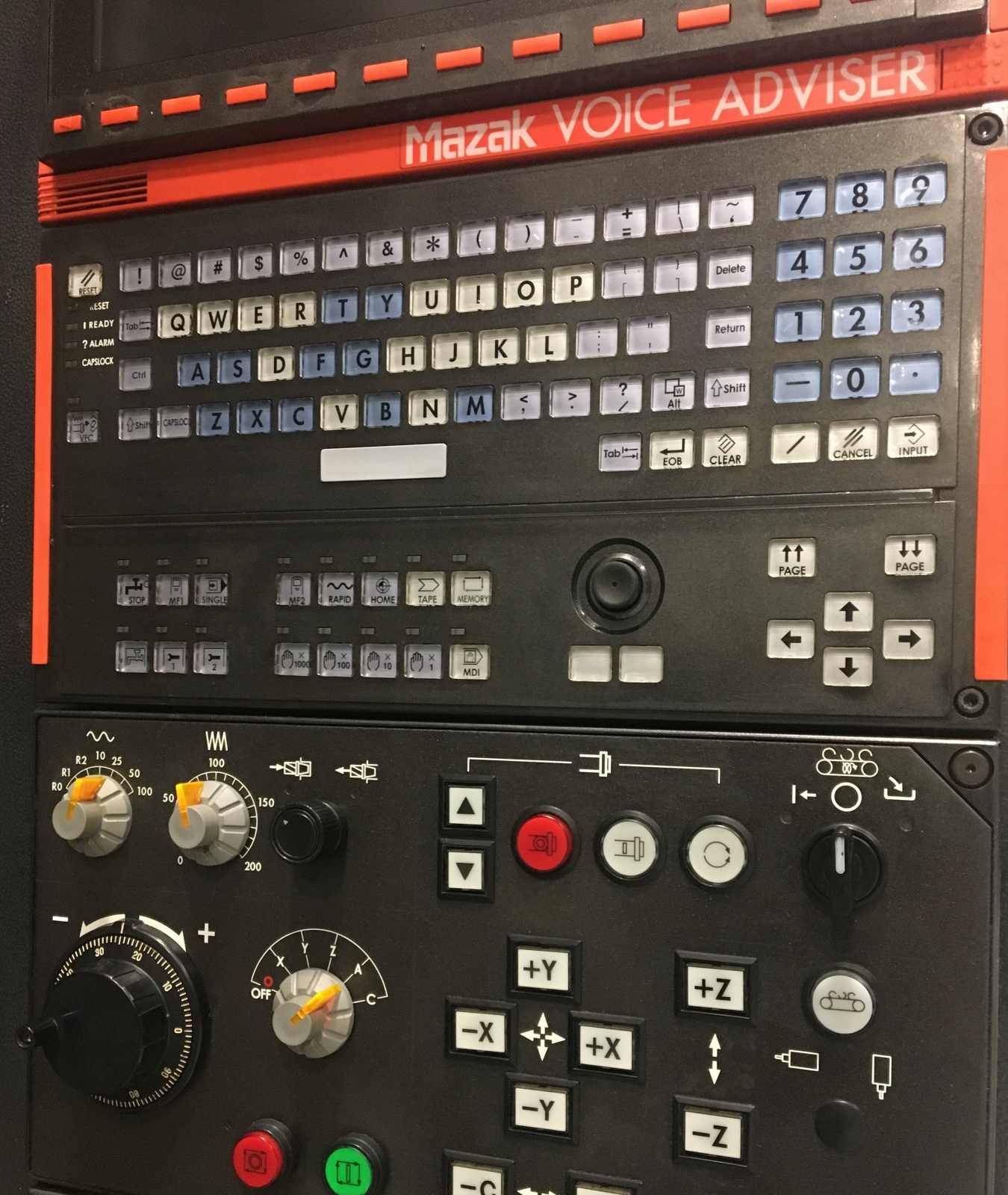

Control Type
Mazatrol Matrix
# Axis
5

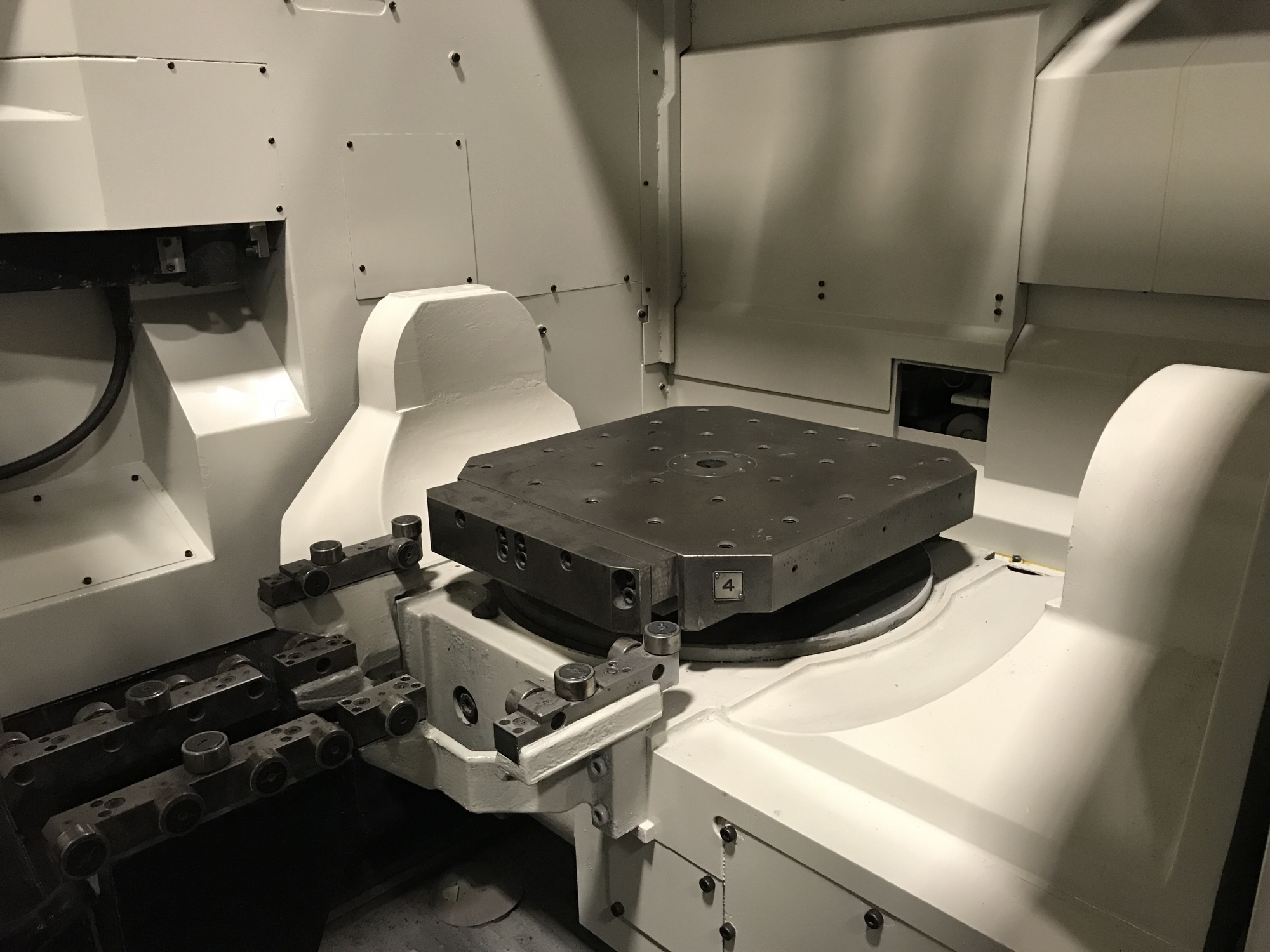

Table Size
19.7" x 19.7"
Table Capacity
1,102 pounds

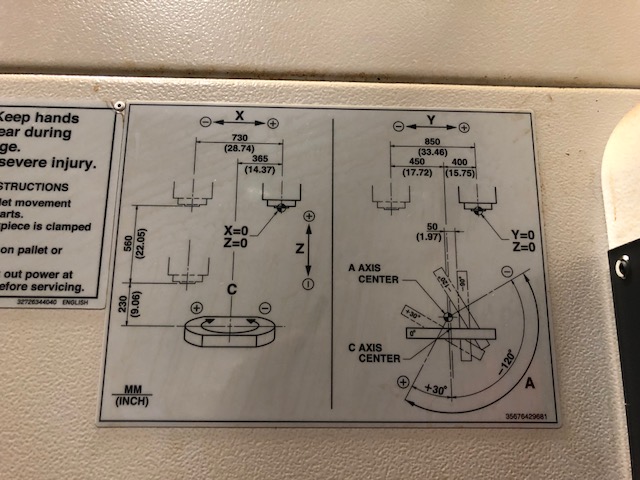

X-Axis Travel
28.74"
Y-Axis Travel
33.46"
Z-Axis Travel
22"
A Axis Swivel
150°
C Axis Index
+/- 360°
X-Axis Rapid Traverse Rate
1,654 IPM
Spindle Taper
CAT 50
Spindle Speed
10,000
Main Motor
40 hp
Tool Changer Capacity
120
Coolant Thru Spindle
yes
Dimensions
236" x 144" x 142"
Weight
50,600 pounds

Equipped With:

- Twin Pallet Shuttle System
- Chip Conveyor
- Coolant Tank & Pumps
- Manual Pulse Generator (MPG)
- Coolant Thru Spindle (Mazak Superflow V8-1000)
- (2) USB Ports
- PCMCIA Card Port
- Ethernet Port
- Scaling & Rotation
- High Speed
- Auto Tool Length Measurement (ATLM)
- 600 Variable Sets
- Renishaw Probing (Receiver only)
- Sub Micron Machine (0.0001mm)
- Program Memory Expansion
- Misc. Tooling Available
- Available Manuals
- Simultaneous 5 Axis Machining


The Mazak Variaxis 730-5x II is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
