Hankook Proturn 60B

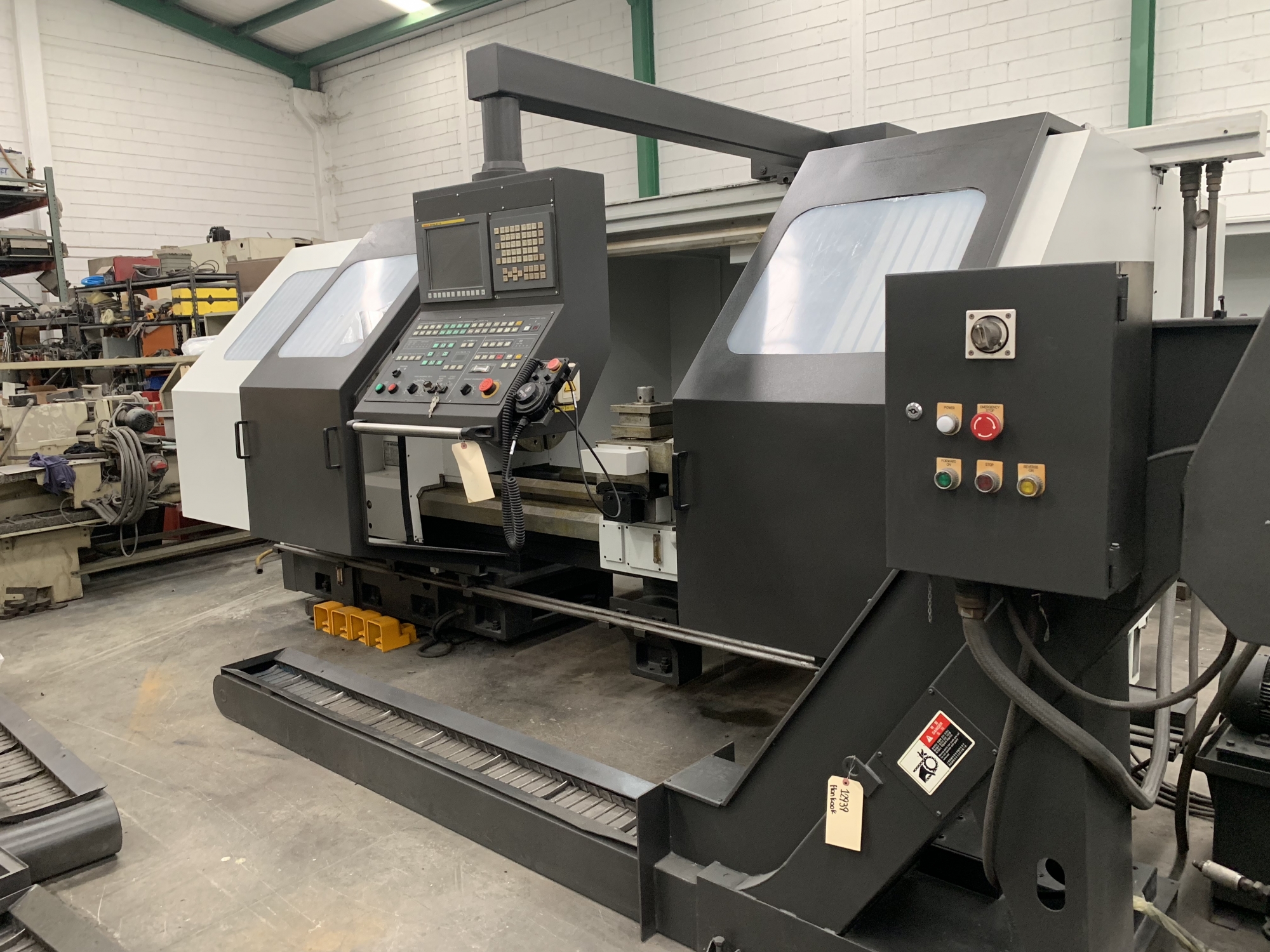

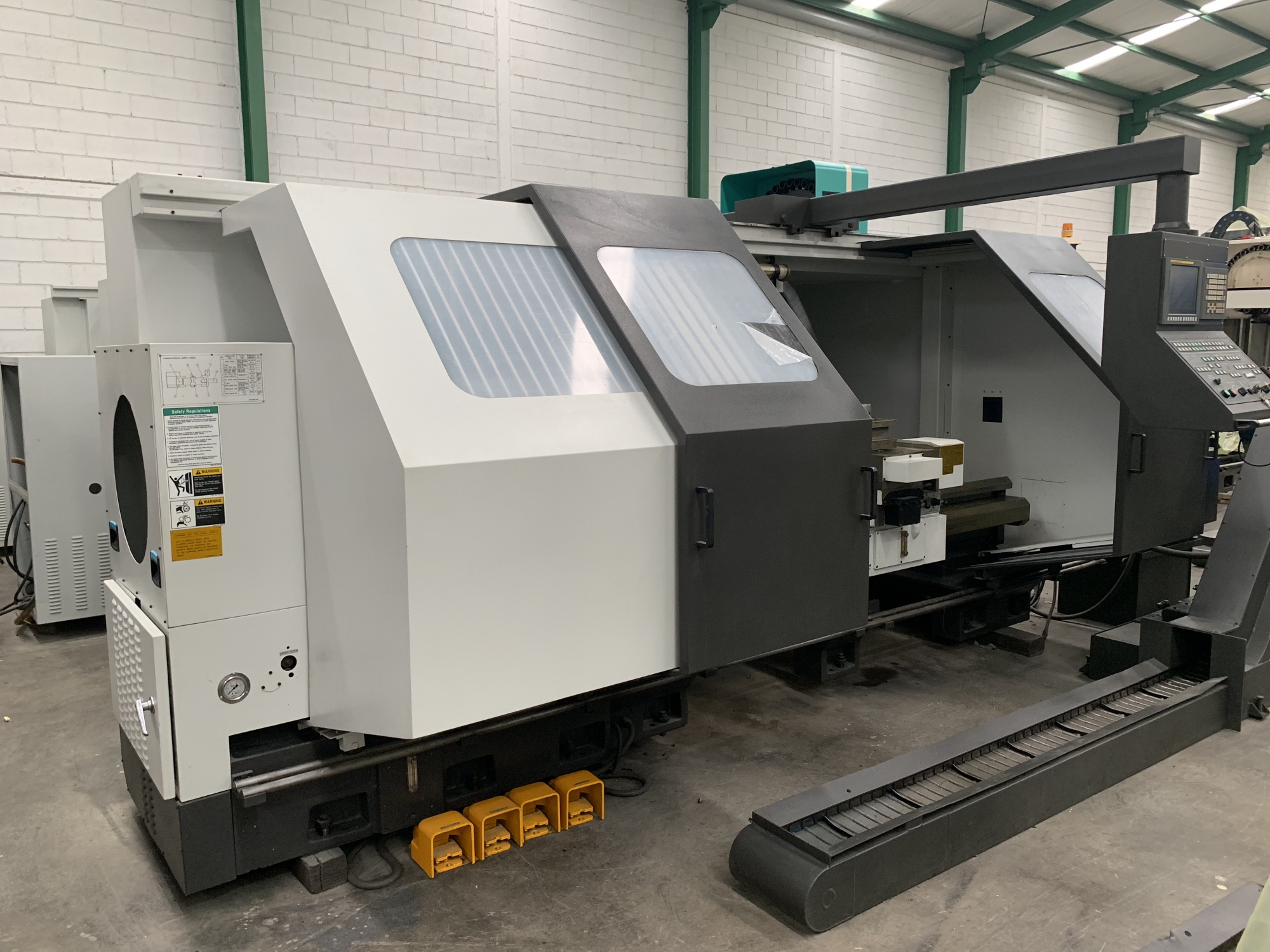

Hankook Proturn 60B - Horizontal Lathes
Share Machine
Specifications
Print Specs
Model:
Proturn 60B
Year:
2012
Stock #:
12940
Sold
Type:
Horizontal Lathes
Manufacturer:
Used Hankook Machines
Highlights:
Fanuc 0i-TD Control

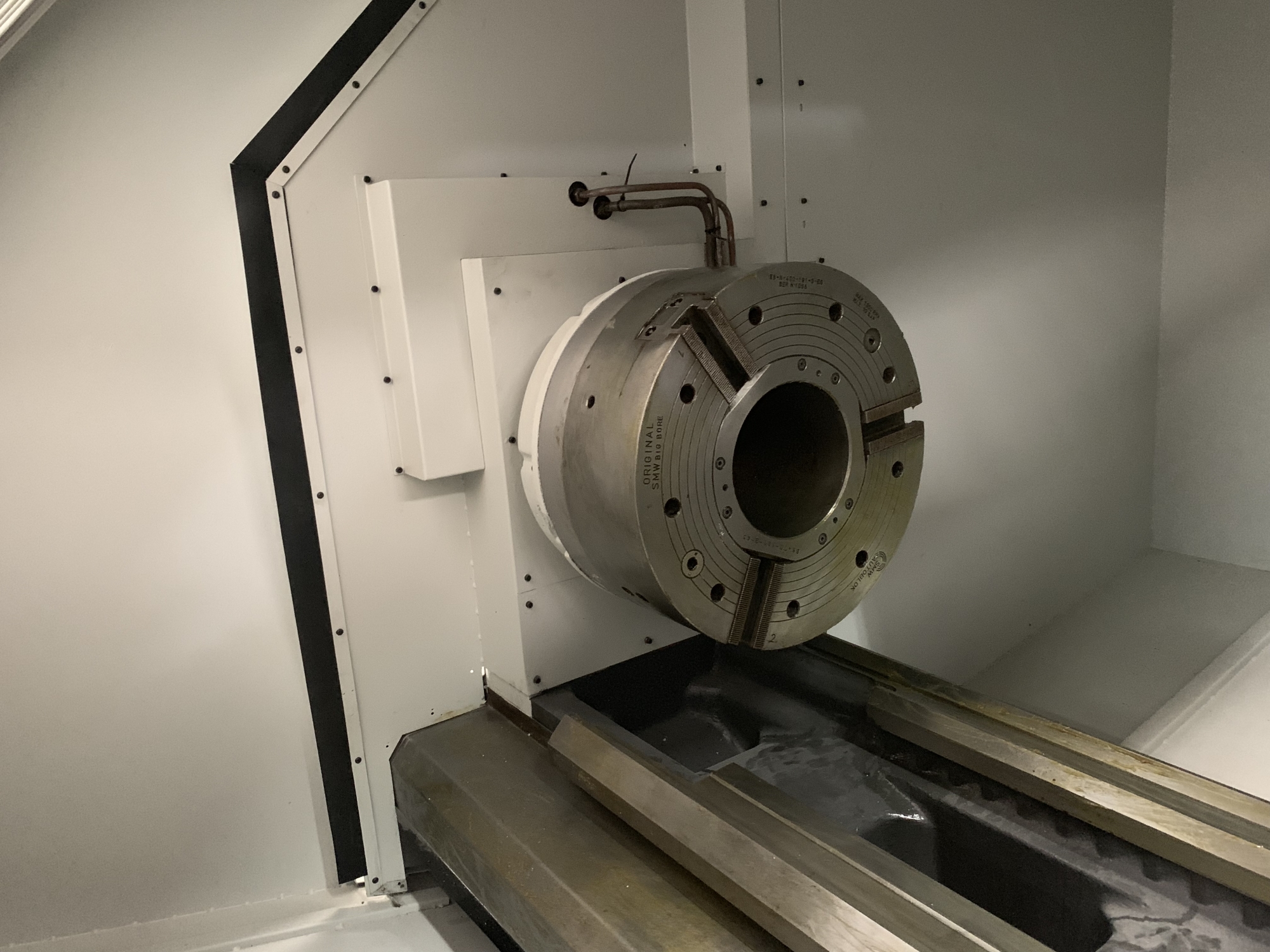

18" SMW Autoblok Neumatic Chucks (Front & Rear)
Automatic H4 Tool Post
8 Station Duplomatic Turret
Equipped With:
- Fanuc 0i-TD Control
- Chip Conveyor
- Coolant Tank
- 3 Jaw SMW 18" Front & Rear Chucks
* Model BB-N-470-191-3-ES
- Horizontal (4) Position Tool Post
- Duplomatic 8 Station Turret
- Available Manuals
Machine
Specifications
Inch
Metric
Machine Specifications:
Year
2012
Control Type
Fanuc 0i-TD
Chuck Size
18"
Swing
27.9"
Turning Diameter
23.6"
Center Distance
66.9"
Bar Capacity
6.9"
X Axis Travel
14.9"
Z Axis Travel
63"
Rapid Traverse (X/Z)
240 IPM
Spindle Speed (RPM)
1,000
Main Motor
30 HP
Turret Capacity
8
Tailstock
no
Y Axis
no
Dimensions
177" x 91" x 91"
Weight
14,500 pounds
Live Tooling
no
Sub Spindle
no
# Axis
2
Equipped With:
- Fanuc 0i-TD Control
- Chip Conveyor
- Coolant Tank
- 3 Jaw SMW 18" Front & Rear Chucks
* Model BB-N-470-191-3-ES
- Horizontal (4) Position Tool Post
- Duplomatic 8 Station Turret
- Available Manuals
The Hankook Proturn 60B is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
