Hankook Protec 7NB - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Protec 7NB
Year: 2012
Stock #: 12948 Sold
Highlights:

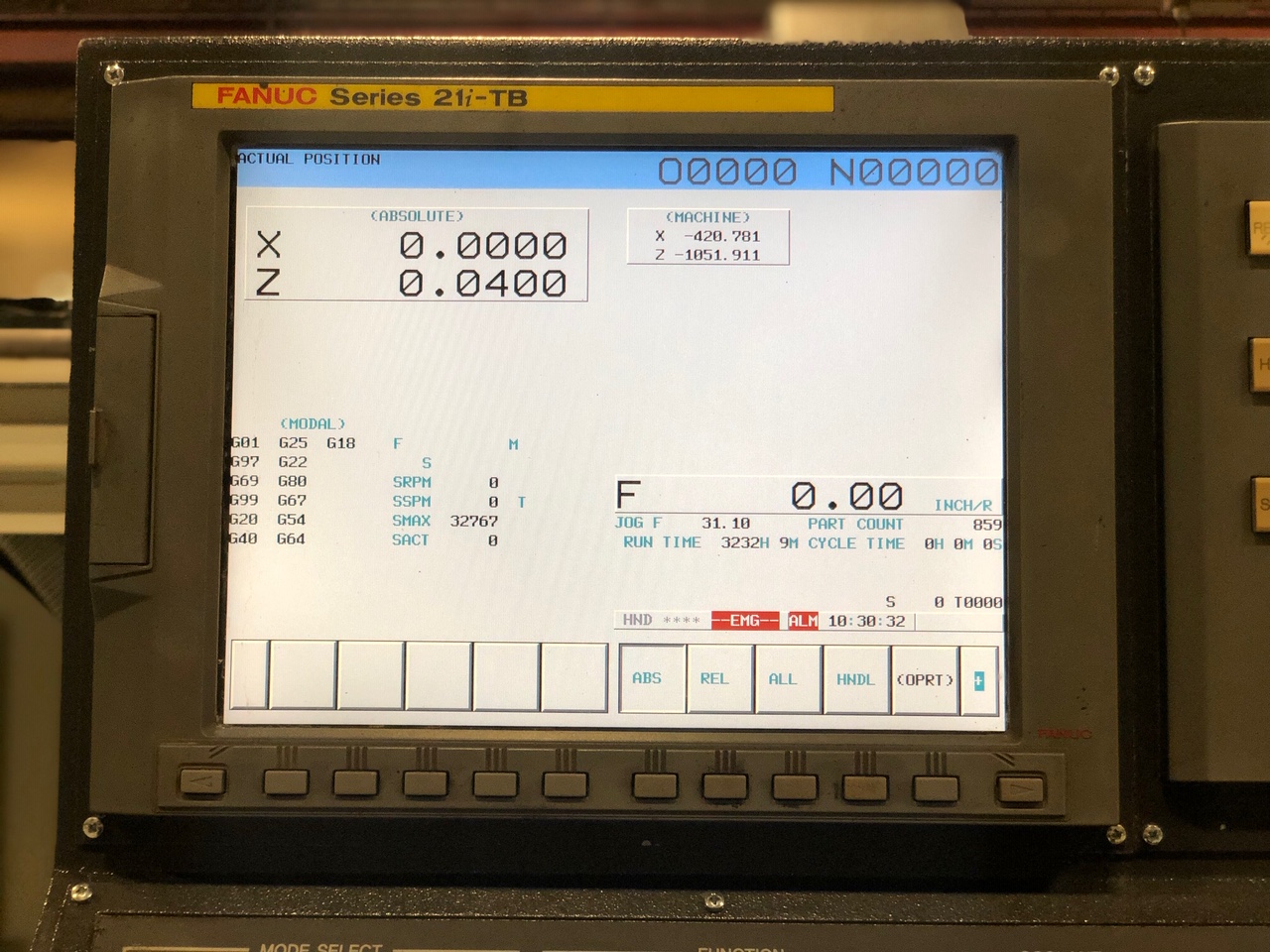

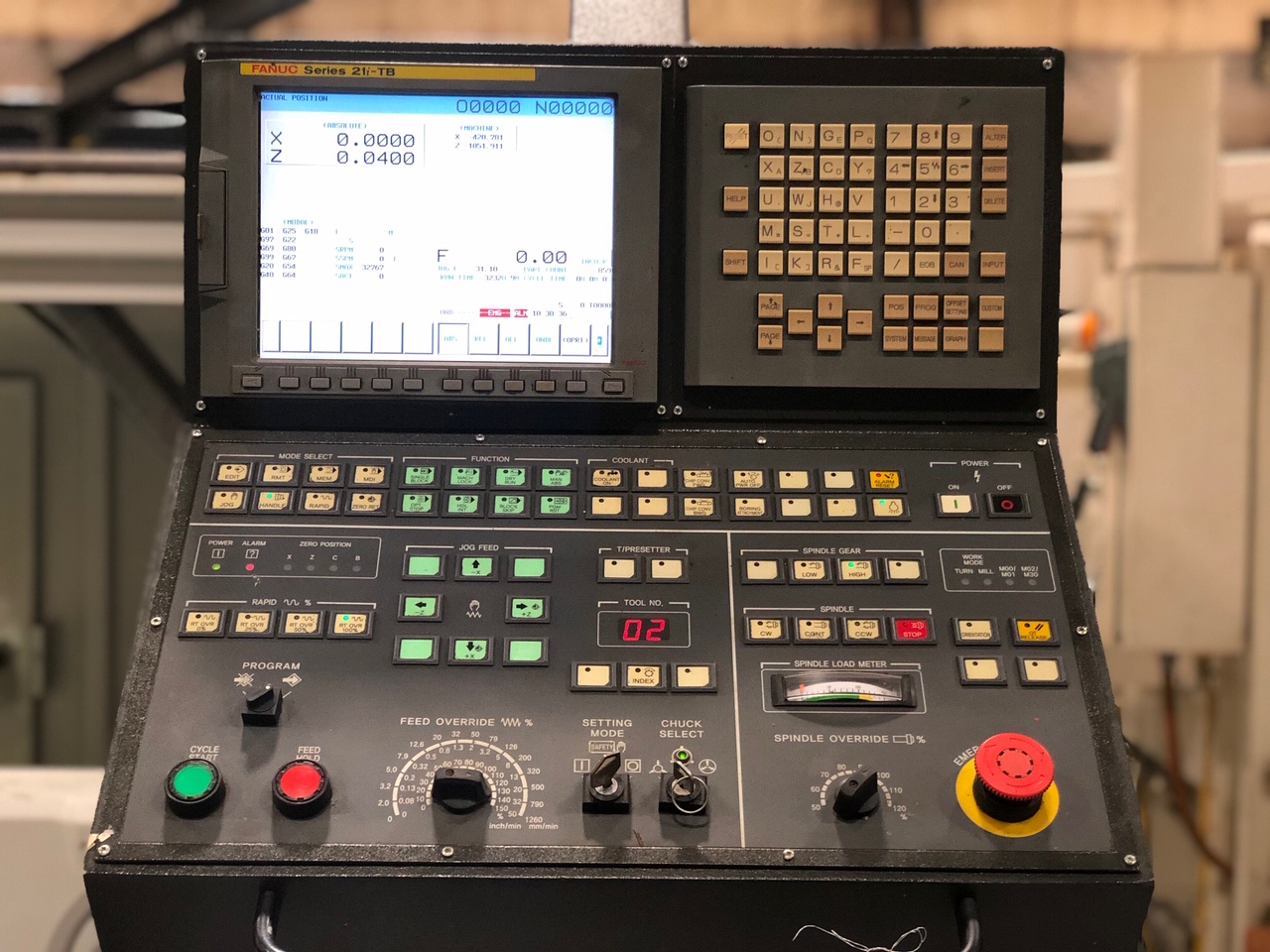

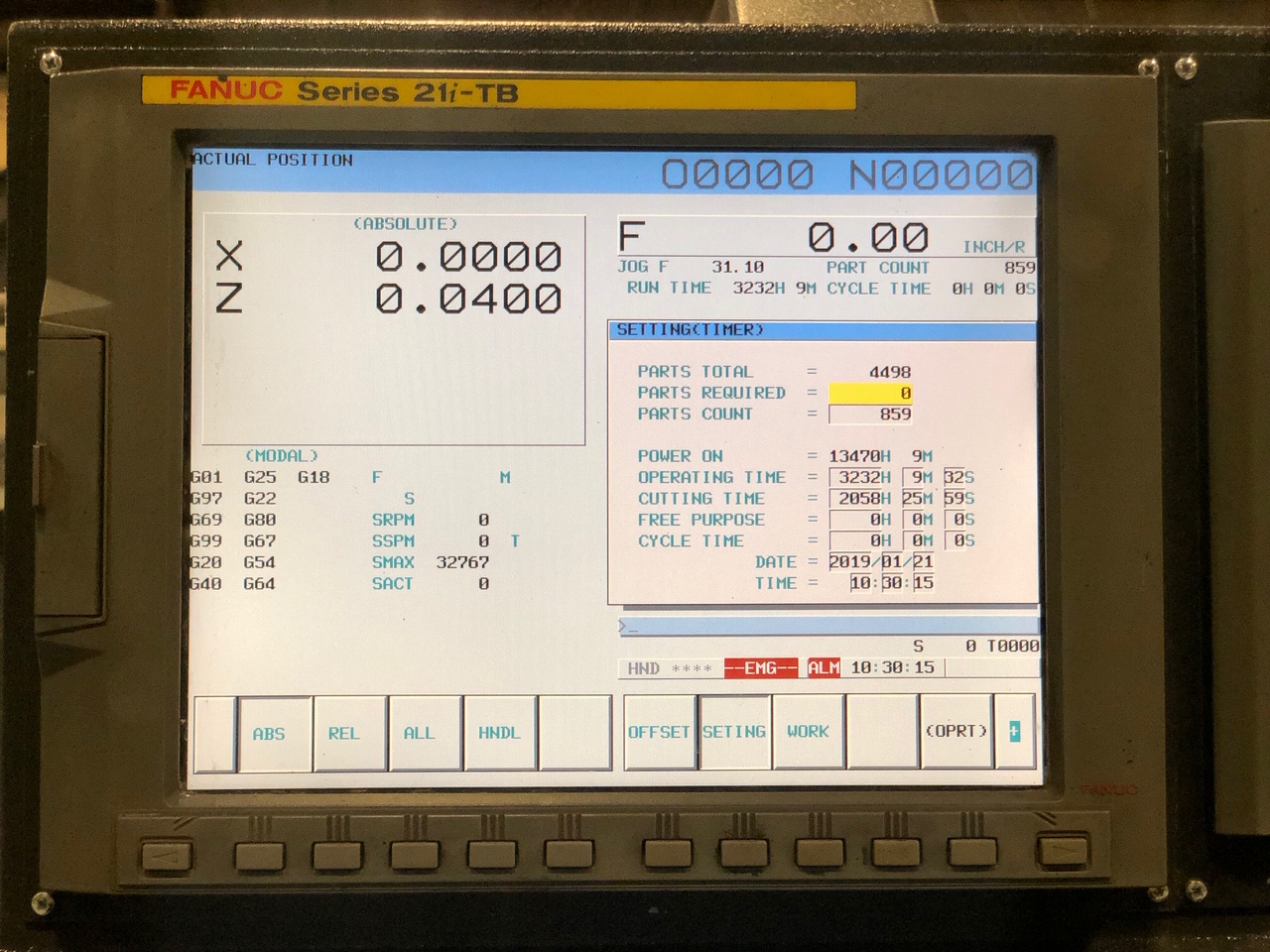

Fanuc 21i-TB Control
21" Samchully MH-221 Hydraulic Chuck
59" Center Distance
6.3" Bar Capacity

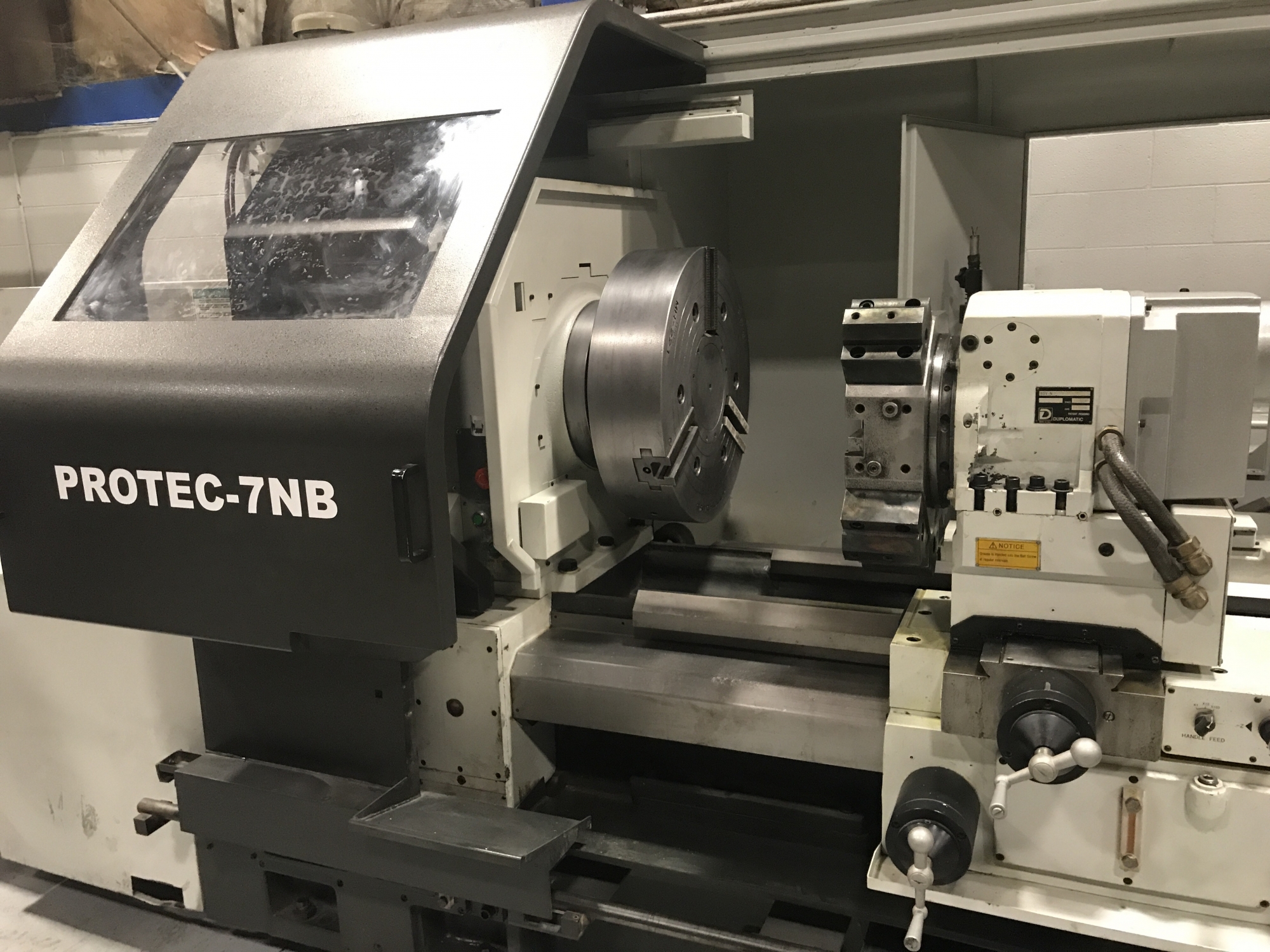

2012 HANKOOK Protec 7NB - CNC Horizontal Lathe
Machine Specifications
Year
2012
Control Type
Fanuc 21i-TB
Chuck Size
21"
Swing
29.5"
Turning Diameter
29.5"
Center Distance
59"
Bar Capacity
6.3"
X Axis Travel
16.7"
Z Axis Travel
56.5"
Rapid Traverse (X/Z)
236
Spindle Speed (RPM)
1,000
Main Motor
20 HP
Turret Capacity
8
Tailstock
yes
Y Axis
no

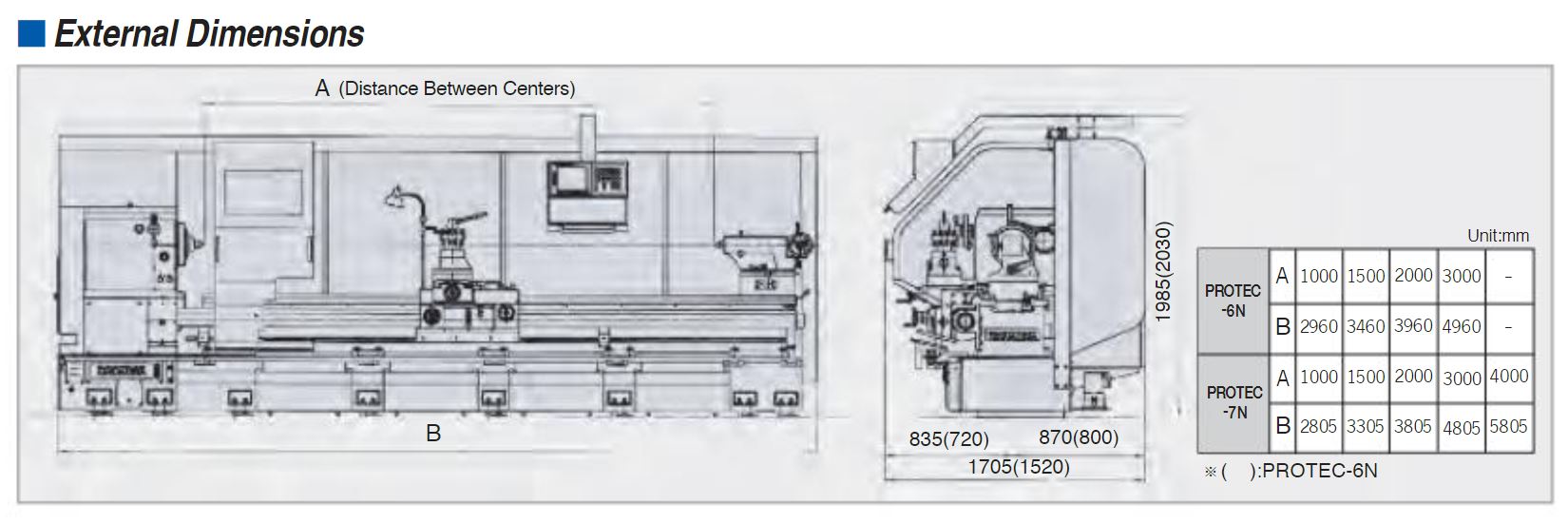

Dimensions
131" x 68" x 79"
Weight
8,650 pounds
Live Tooling
no
Sub Spindle
no
# Axis
2

Equipped With:

- Fanuc 21i-TB CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- 21" Samchully MH-221 Hydraulic Chuck
- Tailstock
- Duplomatic 8 Position Turret
- Manual Guide i
- Available Manuals



The Hankook Protec 7NB is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
