Doosan Puma 240B - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Puma 240B
Year: 2012
Stock #: 13191 Sold
Highlights:

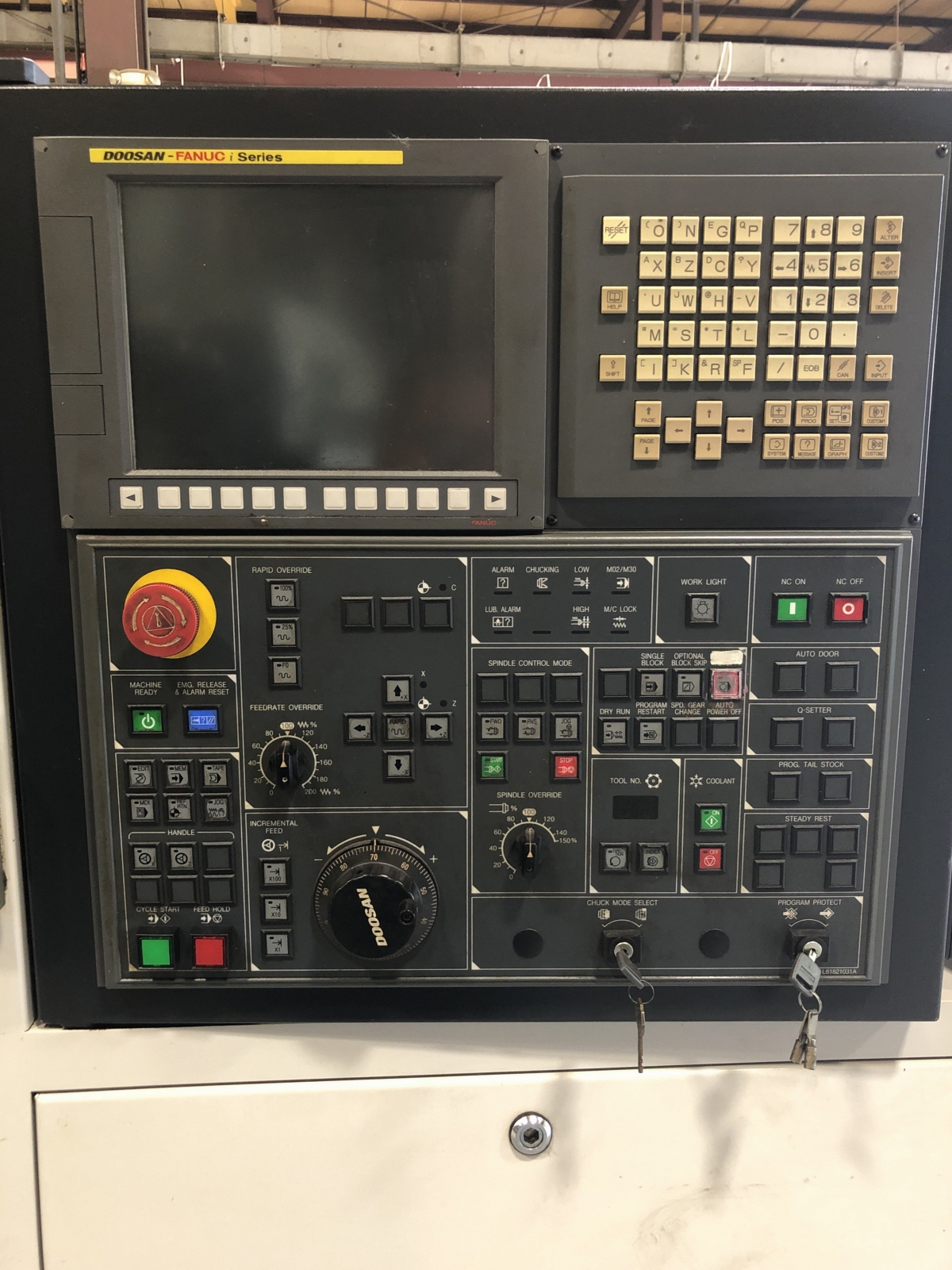

Fanuc 21i-TB CNC Control
Tailstock
Box Way Machine
Manual Guide i
Embedded Ethernet Port

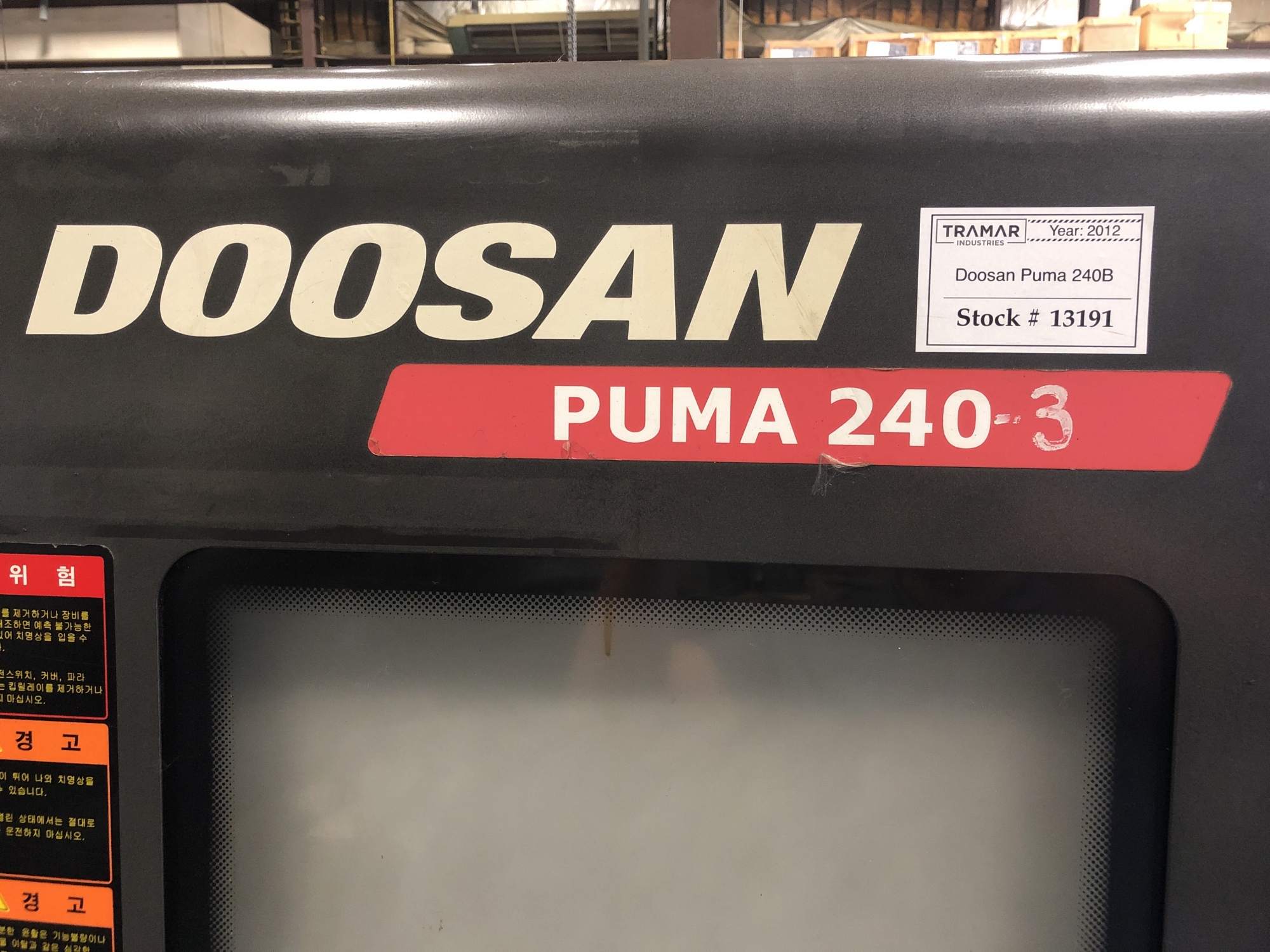

2012 Doosan Puma 240B - CNC Horizontal Lathe
Machine Specifications
Year
2012
# Axis
2
Control Type
Fanuc 21i-TB
Swing
21.7"
Turning Diameter
13.8"
Center Distance
26.3"
Chuck Size
10"
Bar Capacity
2.6"
X Axis Travel
10"
Z Axis Travel
23"
Rapid Traverse (X/Z)
945
Spindle Speed (RPM)
4,500
Main Motor
25 HP
Turret Capacity
12
Tailstock
yes
Y Axis
no
Live Tooling
no
Sub Spindle
no
Machine Dimensions
124" x 65" x 70"
Machine Weight
10,000 lbs

Equipped With:

- Fanuc 21i-TB Control
- Coolant Tank & Pump
- Tailstock
- Embedded Ethernet
- Manual Guide i
- Available Manuals
- Box Way Machine
- Chip Conveyor

Video - Coming Soon


The Doosan Puma 240B is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
