Mori Seiki NL2500MC/700 - Horizontal Lathes

Share Machine

Specifications Print Specs

Model: NL2500MC/700

Year: 2009

Stock #: 13532 Sold

Type: Horizontal Lathes

Manufacturer: Used Mori Seiki Machines

Highlights:
- MSX-850II Control
- Live Tooling
- Programmable Tailstock

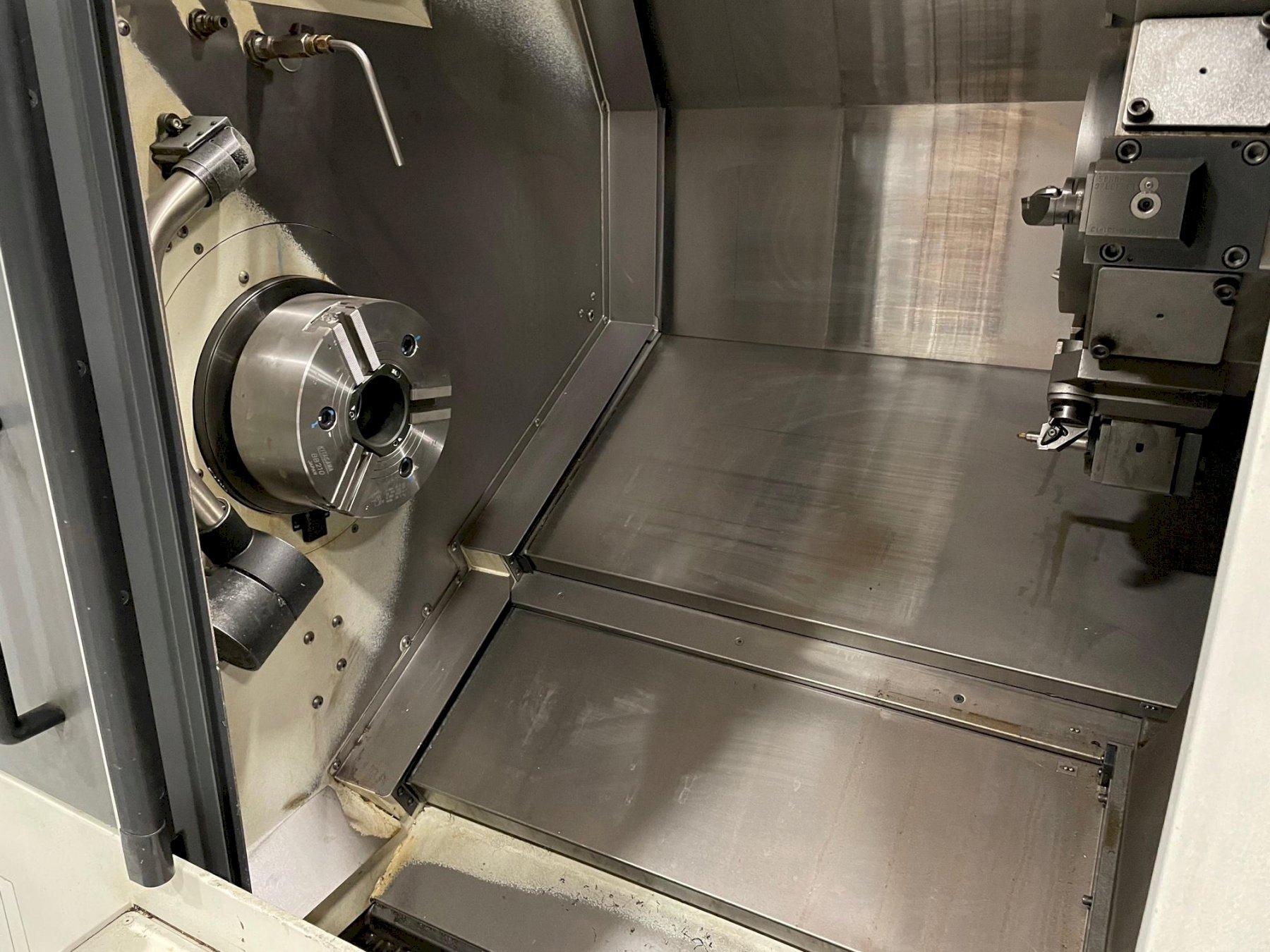

2009 Mori Seiki NL2500MC/700 CNC Horizontal Lathe

Equipped With:

- MSX-850II Control
- Live Tooling
- Programmable Tailstock
- Chip Conveyor
- Coolant Tank & Pump

Machine Specifications

Inch

Metric

Machine Specifications:

Year

2009

# Axis

Swing

36.4"

Swing Over Cross Slide

29.7"

Turning Diameter

14"

Center Distance

27.7"

Chuck Size

10"

Bar Capacity

3.1"

X Axis Travel

10.2"

Z Axis Travel

31.3"

C Axis Index

0.001°

Rapid Traverse (X/Z)

1,181 ipm

Spindle Nose

A2-8

Spindle Speed (RPM)

4,000

Main Motor

25 hp

Live Tooling

yes

Live Tooling Speed

6,000 rpm

Live Tooling Motor

7.5 hp

Turret Capacity

Y Axis

Tailstock

yes

Sub Spindle

Dimensions

122" x 76" x 84"

Weight

13,000 pounds

Equipped With:

- MSX-850II Control
- Live Tooling
- Programmable Tailstock
- Chip Conveyor
- Coolant Tank & Pump

The Mori Seiki NL2500MC/700 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
