Mazak Integrex e500H/3000 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Integrex e500H/3000
Year: 2006
Stock #: 13620 Sold
Highlights:
Mazatrol 640M Pro Control
Live Tooling & Y Axis
(80) Station Tool Changer
SMW Hydraulic Steady Rest (Follow Rest)
Simultaneous 5 Axis Machining
CNC Milling/Turning Center

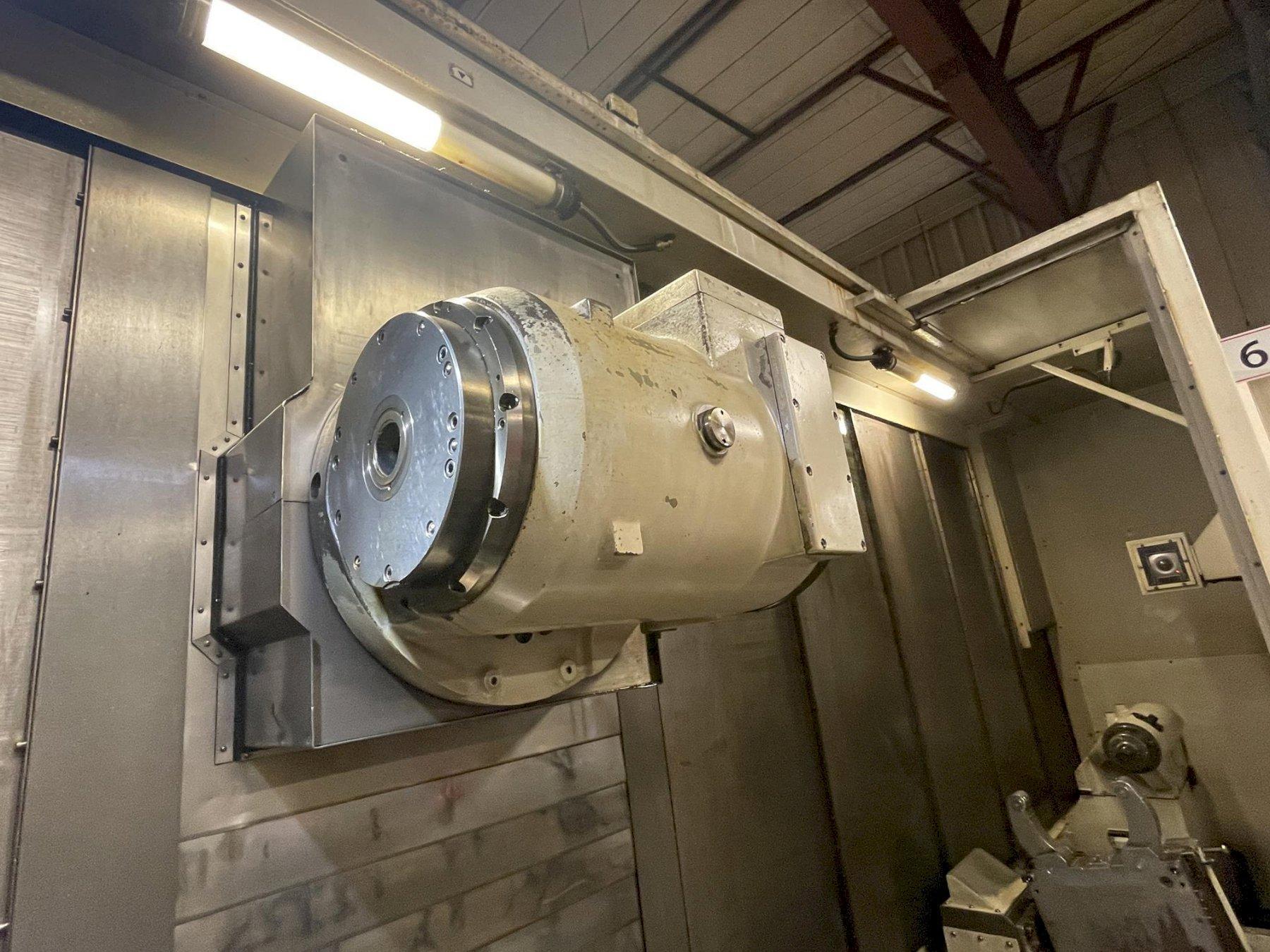

2006 Mazak Integrex e500H/3000 CNC Horizontal Lathe
Machine Specifications
Year
2006
Control Type
Mazatrol 640 M Pro
Chuck Size
18"
Swing
32.28"
Turning Diameter
32.28"
Center Distance
122.91"
Bar Capacity
4.09"
X-Axis Travel
34.25"
Y Axis Travel
19.69"
Z-Axis Travel
122.91"
B Axis Head Tilt
-30° ~ +210°
C Axis Index
0.001° / 360°
Rapid Traverse (X/Y/Z)
1,575/1,575/1,575 ipm
Spindle Nose
A2-11
Spindle Speed
2,000 rpm
Main Motor
40 hp
Sub Spindle
no
Live Tooling
yes
Live Tooling Spindle Taper
CAPTO C8
Live Tooling Speed
10,000 RPM - Milling Spindle
Live Tooling Motor
25 HP
Tailstock
yes
Y Axis
yes
ATC Capacity
80 stations
Dimensions
317" x 136" x 127"
Weight
63,051 pounds

Equipped With:

- Mazatrol 640M Pro CNC Control
- Chip Conveyor
- Coolant Tank
- SMW SLU-4 Hydraulic Follow Steady Rest
- Renishaw Probing
- Kitagawa B-18 Hydraulic Chuck
- Tailstock
- CAPTO C8 Milling Spindle
- Flash Tool

Simultaneous 5 Axis Machining


The Mazak Integrex e500H/3000 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
